| Hinge X 8 PA, left, grey similar to RAL 7042 | CADPDFRFQ |
Preview

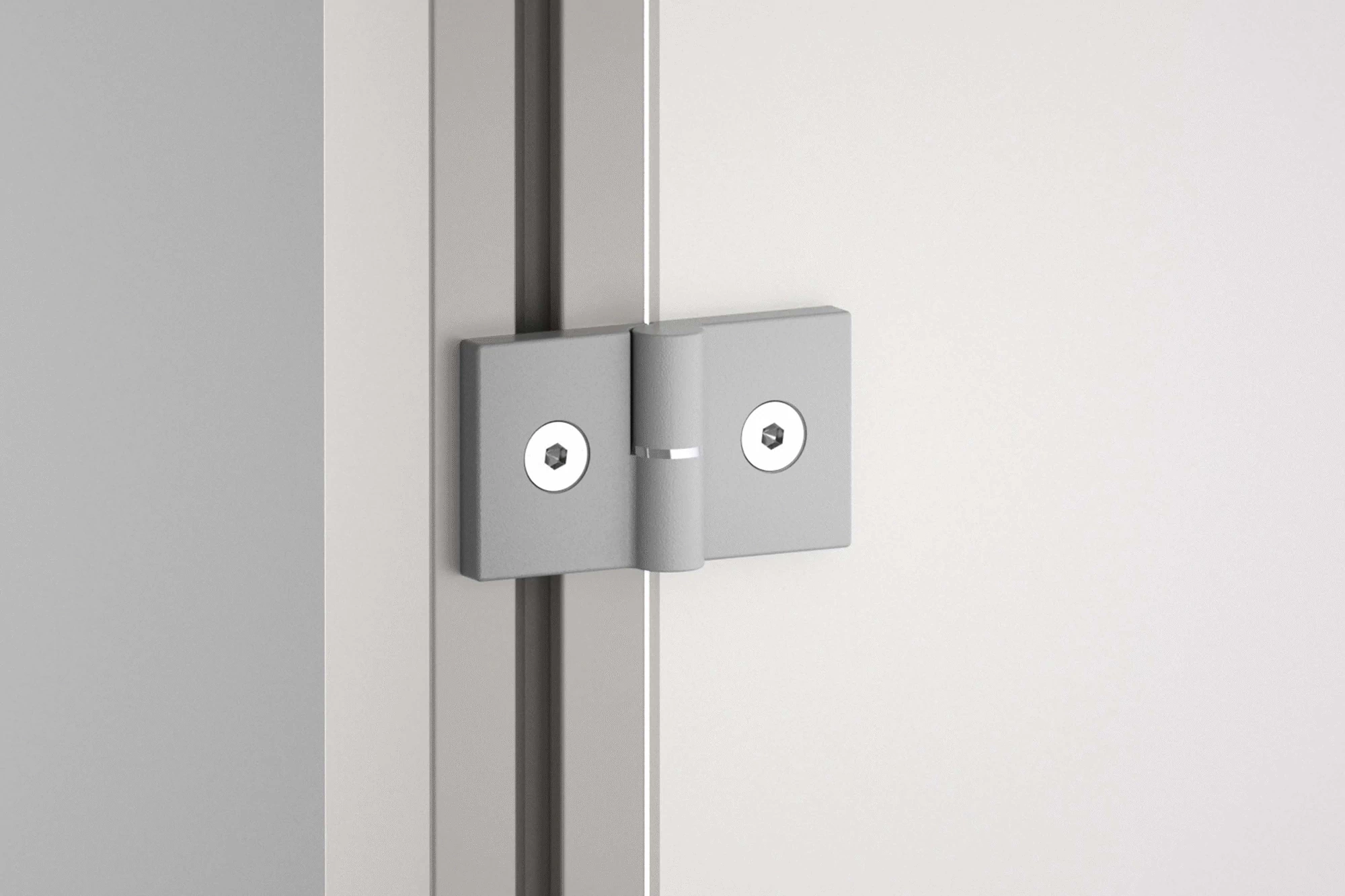

Hinge X 8 PA, left, grey similar to RAL 7042
2 Hinge Leaves, PA Washer, St, bright zinc-plated Grooved pin, St, bright zinc-plated
Scope of Delivery
2 Hinge Leaves, PA Washer, St, bright zinc-plated Grooved pin, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 28 g |
| Force max | Fmax. = 100 N |
| Delivery unit | 1 pce. |
| Colour | grey similar to RAL 7042 |
| cleanroom suitability | Yes |
The shape and colour of Hinges X 8 PA match Profiles X 8. Hinges X 8 PA are simple components for lightweight doors and lids. They have anti-torsion elements which engage with the profile grooves.
Mit Scharnieren PA können entweder zwei parallele Profile oder ein Profil und eine Fläche schwenkbar verbunden werden.
The shape and colour of Hinges X 8 PA match Profiles X 8.
Hinges PA have an anti-torsion feature that engages with the profile grooves. Before the Hinges can be fastened to a panel element, through-holes need to be drilled into the panel.

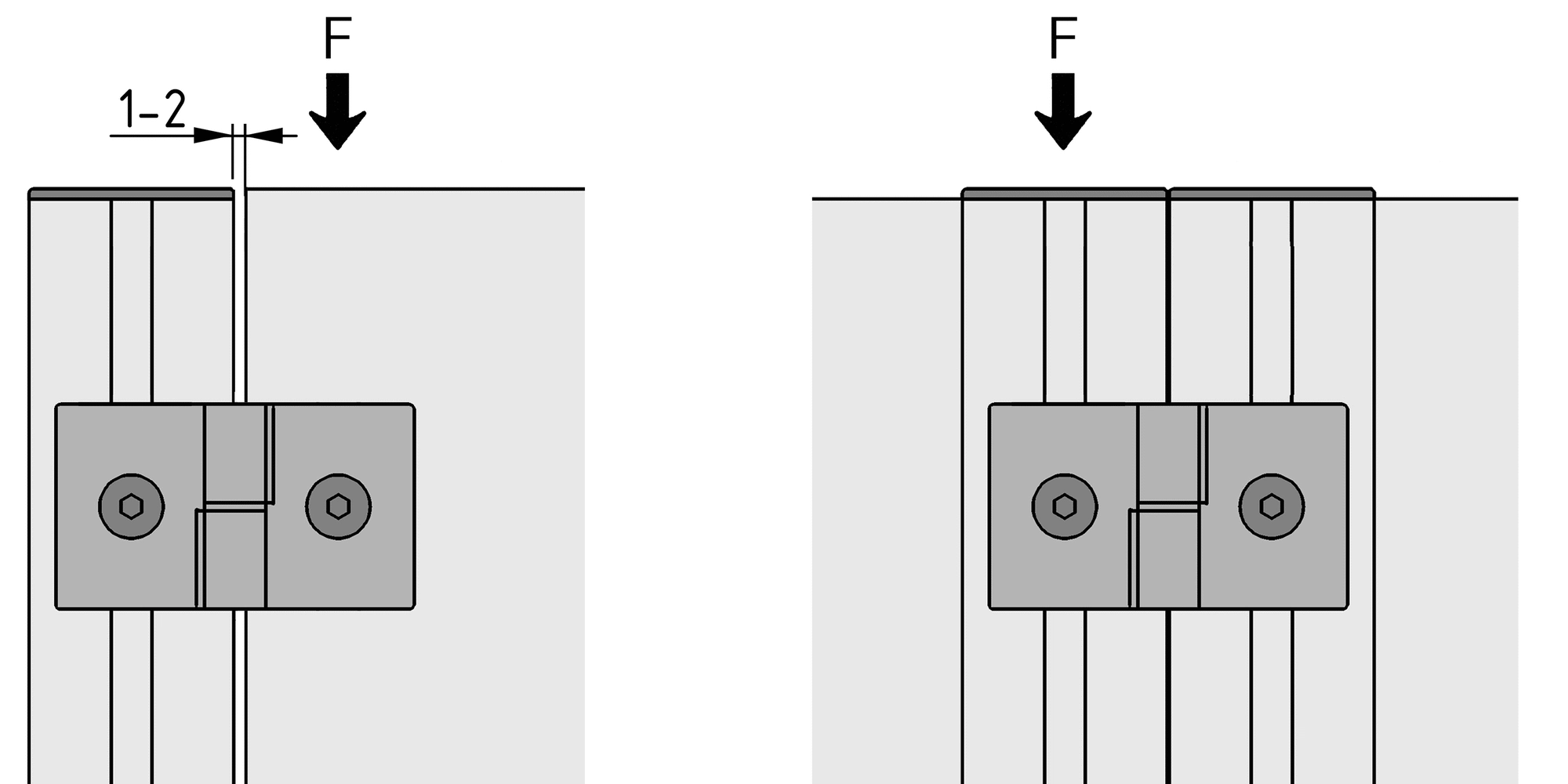

Line 6, 8 and 10 door elements can be attached either permanently or in such a way that they can be lifted off subsequently. For the lift-off version, the doors must be equipped only with right-hand or left-hand Hinges. For the permanently fixed version, right-hand and left-hand Hinges must be combined.
