| Adjustable Foot 8 PA | CADPDFRFQ |

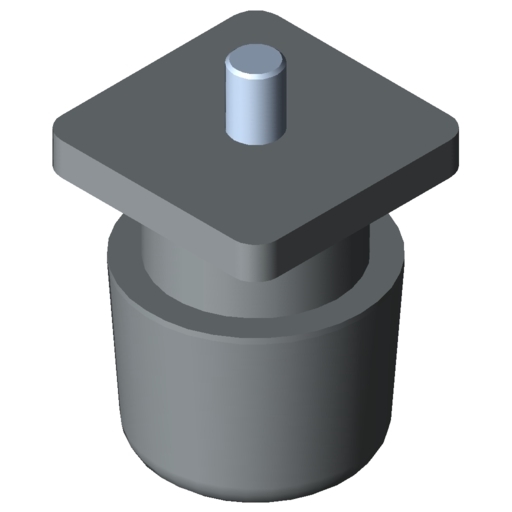

Preview
Adjustable Foot 8 PA
Housing, PA-GF, grey Spindle, nut and washer, St, bright zinc-plated
Scope of Delivery
Housing, PA-GF, grey Spindle, nut and washer, St, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 71 g |
| Force max | Fmax. = 1500 N |
| Delivery unit | 1 pce. |

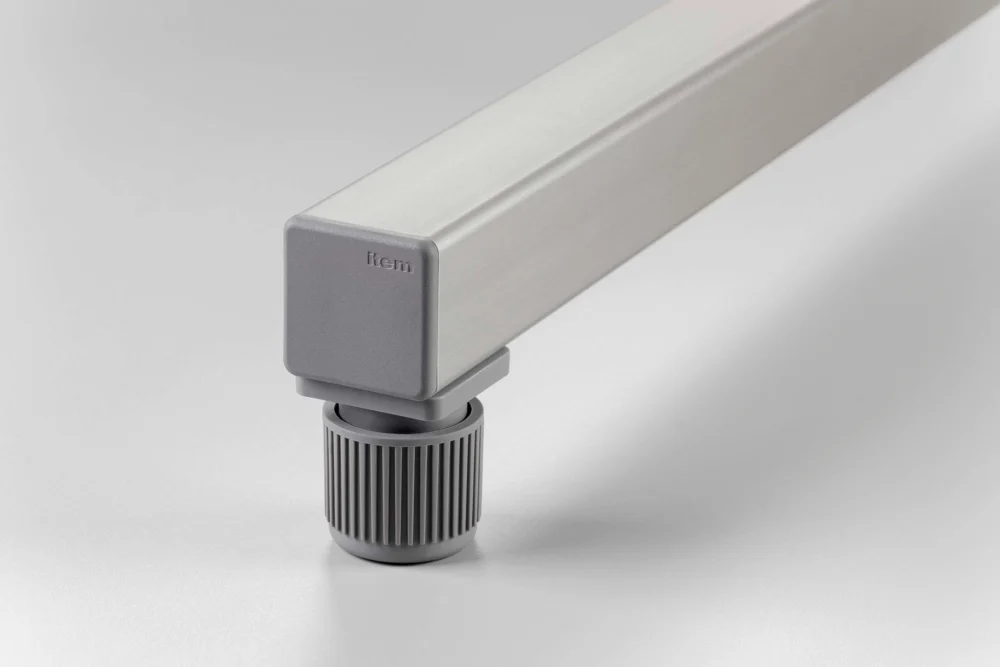

Adjustable Foot 8 PA, grey is fitted to tables and lightweight equipment to compensate for uneven floor surfaces. The height of the foot is adjusted simply by turning the lower part. No tools are required. It can be installed either in the face end of a Line 8 profile (using the core bore) or in a profile groove (using a T-Slot Nut – 0.0.480.48). Adjustable Foot 8 PA is also available in black (0.0.196.64).
Various options for fastening to Profiles 8. F = 1,500 N
