Screw Strip 8 Al, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 0.47 cm2 |
| Moment of Inertia, x-axis | Ix = 0.04372 cm4 |
| Moment of Inertia, y-axis | Iy = 0.03946 cm4 |
| Weight | m = 130 g/m |
| Delivery unit | cut-off max. 2000 mm |
| Material | Al, anodized |
| Colour | natural |
| Resistance Moment, x-axis | Wx = 0.0671 cm3 |

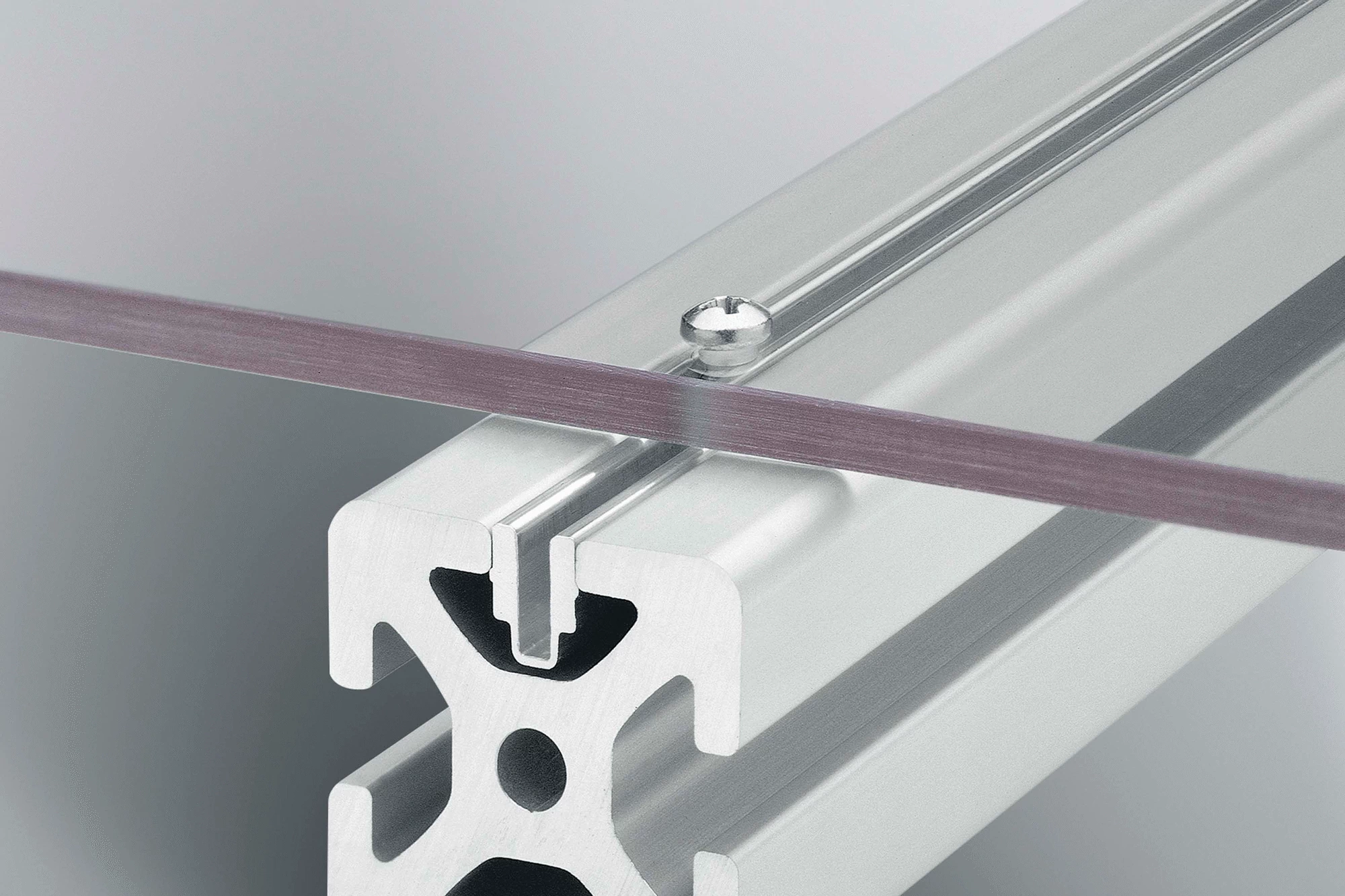

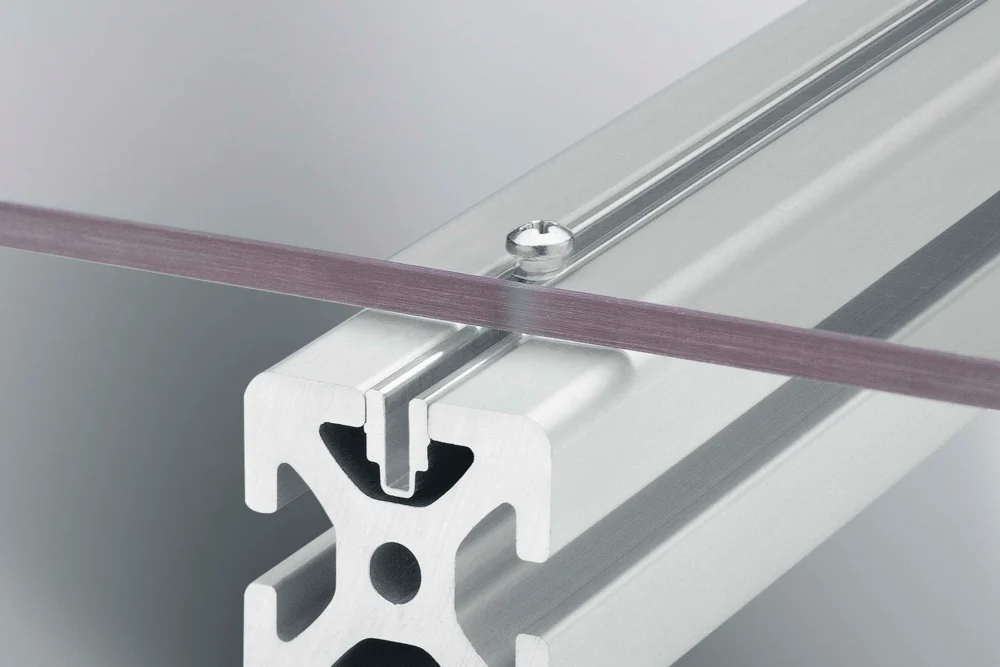

Screw Strips Al are fastening elements which are particularly suitable for retrofitting into existing constructions. The Screw Strips are pressed into the profile groove from above and provide Self-Tapping Screws 4.2 mm with a screw channel along their entire length.
Example of how a cable conduit is secured with Screw Strip 8 Al and Self-Tapping Screws DIN 7981 St 4.2x13. The required screw length L must be selected to match the workpiece thickness s.
