| Roller Conveyor St Fastening Bracket D30 | CADPDFRFQ |
Preview
Roller Conveyor St Fastening Bracket D30

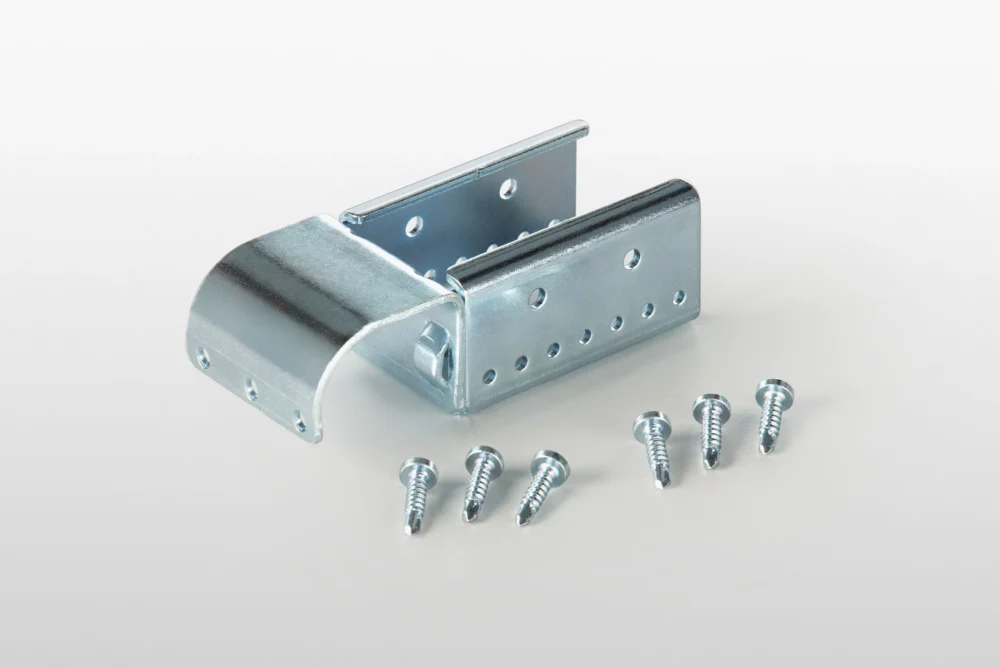

Fastening Bracket, St, bright zinc-plated 6 Button-Head Screws, self-tapping 3.9×16, TX20, St, bright zinc-plated
Scope of Delivery
Fastening Bracket, St, bright zinc-plated 6 Button-Head Screws, self-tapping 3.9x16, TX20, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 161 g |
| Delivery unit | 1 set |

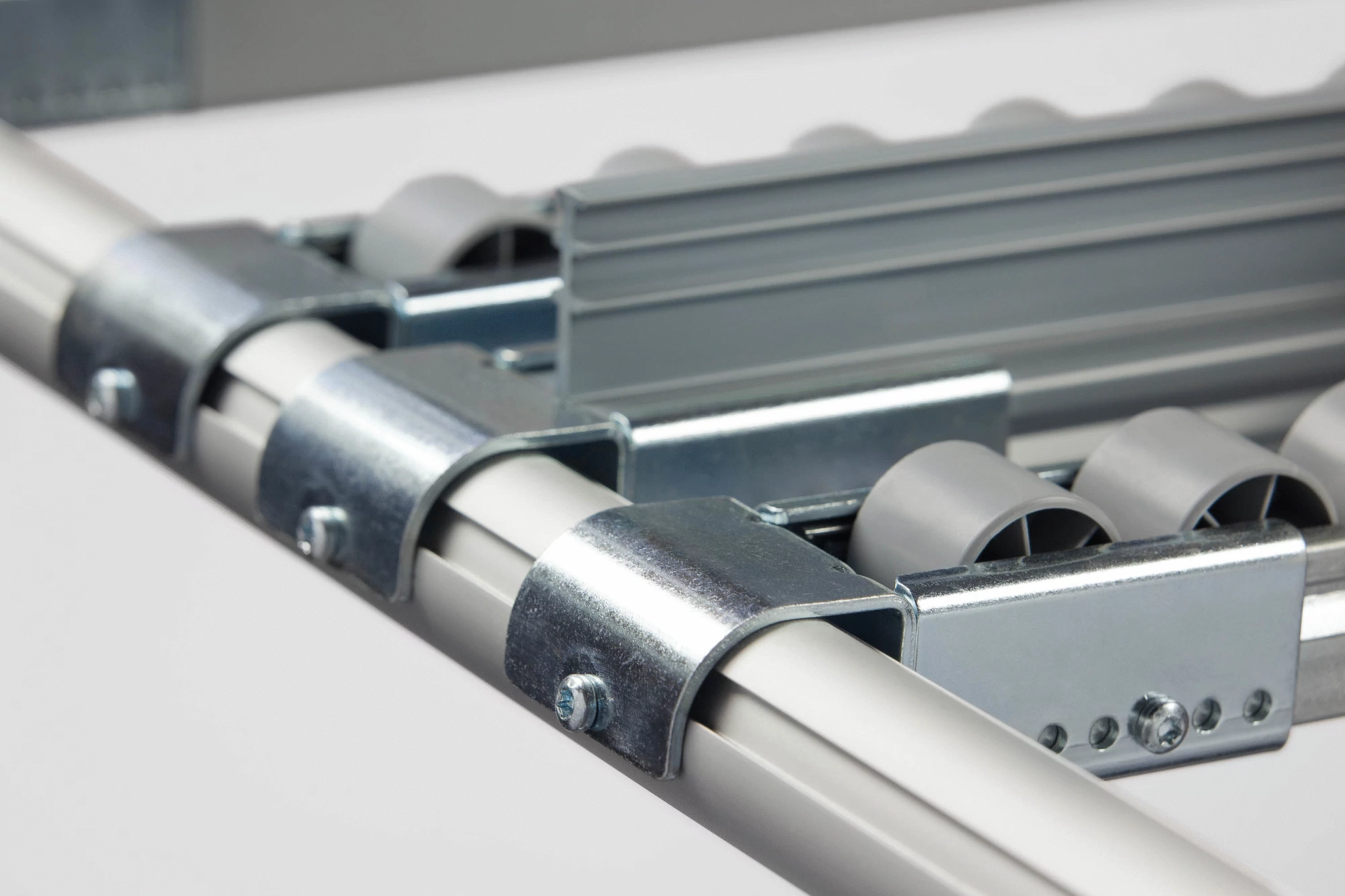

Sound support for Roller Conveyor St D30. Simply insert it into the Roller Conveyor St Fastening Bracket D30 and hang the bracket on a (Profile) Tube D30. If required, the Roller Conveyor Fastening Bracket can also be screwed into place.
Installation dimensions Dimensions for Roller Conveyors St and Al when using Roller Conveyor D30 Fastening Brackets.
