Roller Conveyor 6 80×40 Fastening Bracket D30 with Stop H43

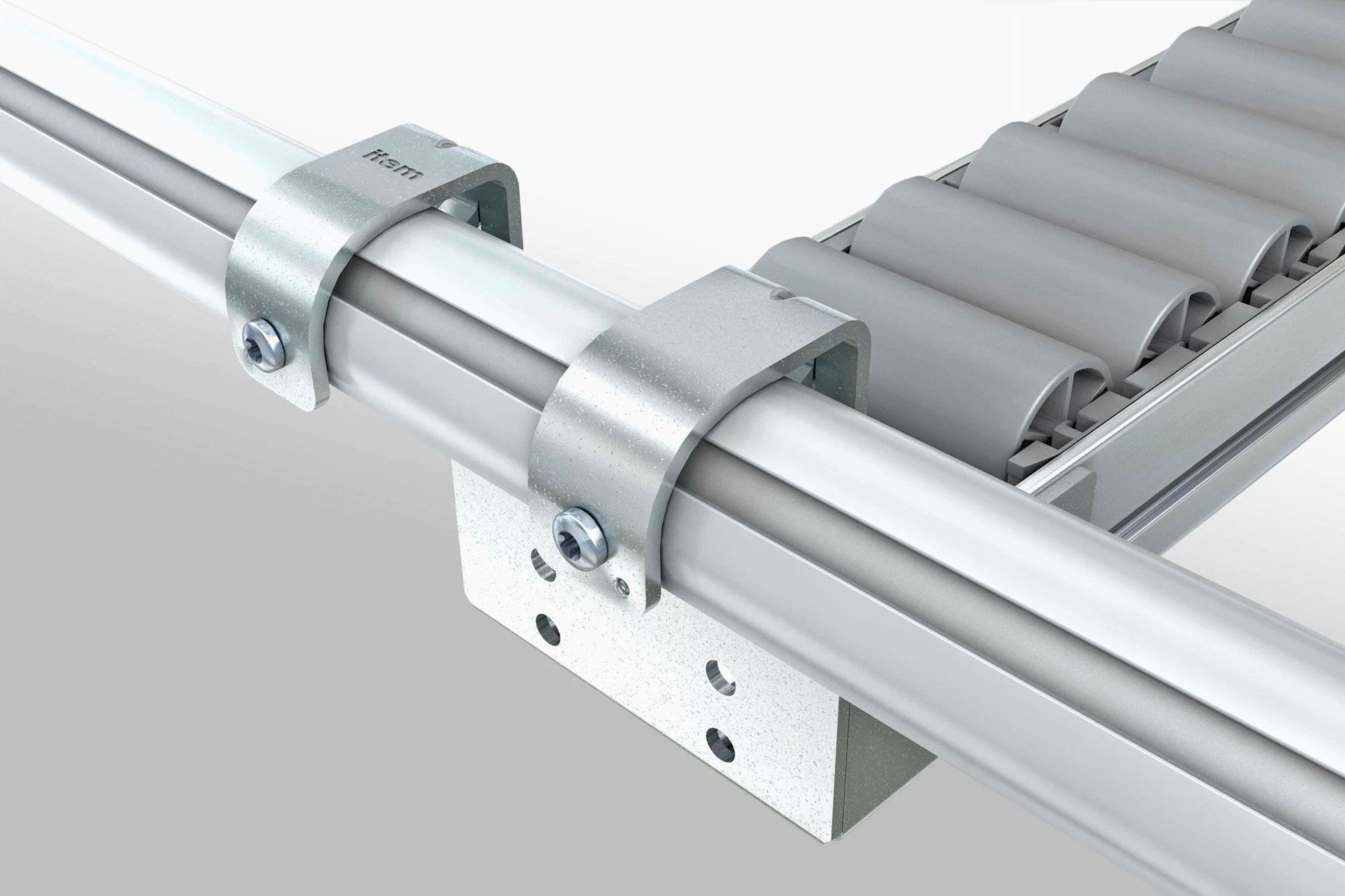

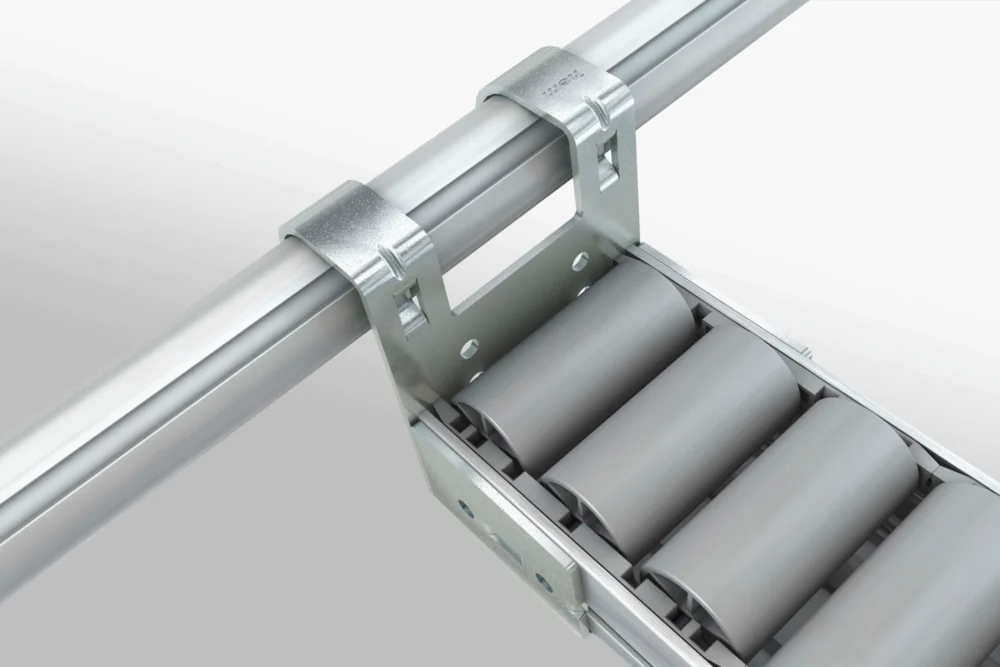

Roller Conveyor 6 80x40 Fastening Bracket D30 is a simple means of securing a conveyor to any frame. Roller Conveyor 6 80x40 Fastening Bracket D30 with Stop H43 can be used to create a robust end point. The raised stop secures crates and prevents them falling off. Both Fastening Brackets are simply slotted onto the ends of the Roller Conveyor and screwed to the profile grooves. Note: Roller Conveyor 6 80x40 Al Fastening Brackets U D30 and I D30 are used to interlink conveyor lines. Their hanger elements intermesh on the D30 profile and thus create a seamless transition point for crates to pass from one roller conveyor to another. A stable hold at every angle: Roller Conveyor 6 80x40 Fastening Bracket D30 is used to fasten Roller Conveyor 6 80x40 E D30 to a (Profile) Tube D30. The Fastening Bracket can be secured to the roller conveyor with the supplied T-Slot Nuts, thereby creating a very secure connection. This means the roller conveyor can be used as a load-bearing element, which enhances the stability of the frame. If required, the Fastening Bracket can also be secured to the profile using the enclosed self-tapping screws. Note: Roller Conveyor 6 Al Fastening Brackets U D30 (0.0.667.56) and I D30 (0.0.667.57) are used to interlink conveyor lines with Roller Conveyor 6 80x40. Their hanger elements intermesh on the strut. Two Fastening Brackets of each type are screwed to the Line 6 grooves on the roller conveyors.
