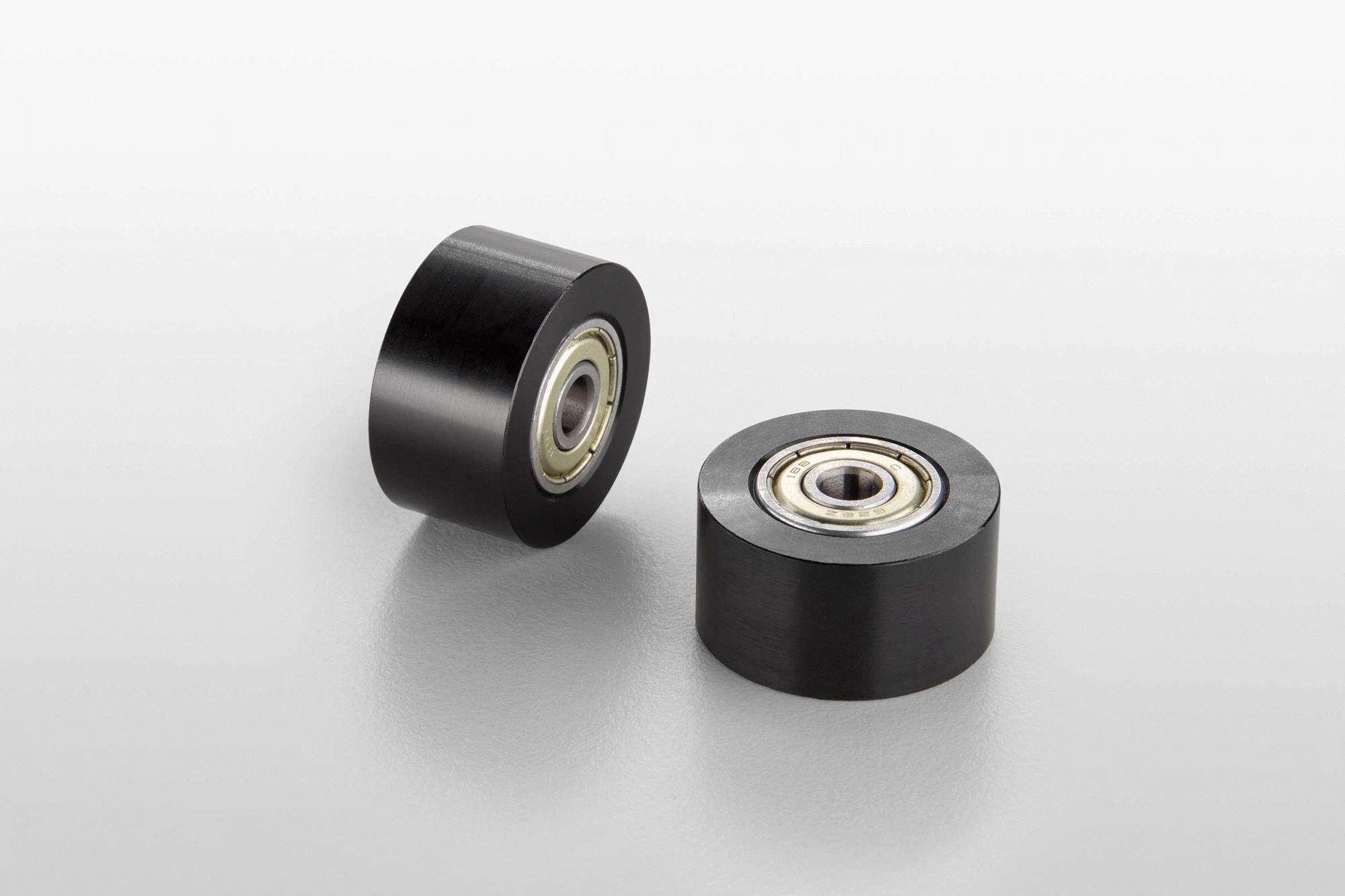

Roller D30/D6-16 T1 ESD
Preassembled Roller D30 T1, thermoplastic, ESD 2 deep groove ball bearings, St, bright zinc-plated
Tuotenro: 0.0.688.00
Osasto: Low-cost automation – the mechanical solution
Avainsana tuotteelle Static
Scope of Delivery
Preassembled Roller D30 T1, thermoplastic, ESD 2 deep groove ball bearings, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 28.4 g |
| Delivery unit | 1 pce. |
Precise movement under all conditions! Because Roller D30/D6-16 T1 is mounted on a ball bearing, friction changes only marginally under load. As a result, this sturdy Roller keeps carriages and other moving components running smoothly. For best results, Roller D30/D6-16 T1 should be installed together with Roller D30/D6-16 (0.0.681.68), which has a slight indentation in the centre of the running surface, allowing the use of a Tube or Profile Tube D30 as a guide. Using this combination of Rollers stops carriages jamming as a result of static overdetermination, which ensures Karakuri/LCA/low-cost automation solutions can transport light containers. The preassembled Roller Set 8 D30-30 T1 with T-Slot Nut 8 can be fitted to a Profile Tube 8 D30 or any Line 8 system groove in next to no time. The Spacer Bushings are designed to ensure adequate clearance between the structural profiles and the carriage.
F = 50 N
