RS Slat Profile Al, natural

Roller Shutters can be used primarily as moving panel elements for locking cabinet systems, control panels and operating consoles etc. The major advantage of the system is its flexibility, allowing it to be housed within the cabinet, and requiring far less space than swing or sliding doors. The Roller Shutter System is suitable for constructing manually-operated vertical and horizontal roller shutters on frames built from Profiles 8. The system consists of the Roller Shutter Guide and the Roller Shutter itself, both of which are of modular design. The Roller Shutter is available in aluminium or lightweight composite. Detailed installation instructions are included with the Roller Shutter Curved Guide Set 45°.

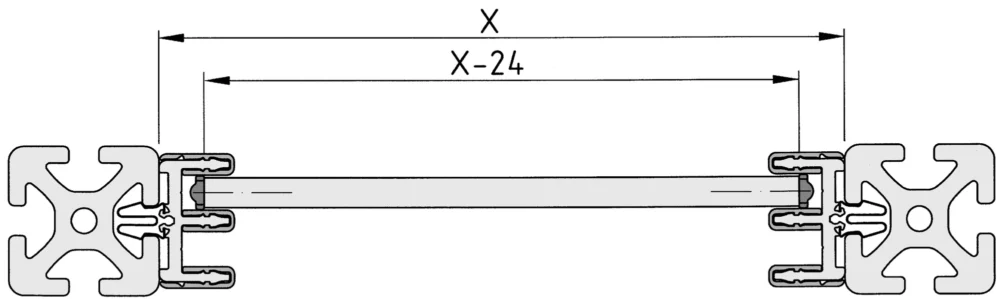

Aluminium Roller Shutters are constructed as Slat Profiles Al with Slat Insulators between them. Each slat must be provided with Slat Sliding Shoes at each end. Weight of aluminium Roller Shutter: 8 kg/m 2 Length of aluminium Roller Shutter Slats: l = X - 24 mm
