| Aseta CAD-muoto | ||
|---|---|---|
| Robot Mounting Plate 8 280×280 T1 | CADPDFRFQ |
Esikatselu
Robot Mounting Plate 8 280×280 T1
Properties
| rivi 8 | rivi 8 |
|---|---|
| ESD-safe | Kyllä |
| Paino | m = 4.04 kg |
| Delivery unit | 1 pce. |
| Materiaali | Al |
| Presentation | 2026-03-24T00:00:00 |

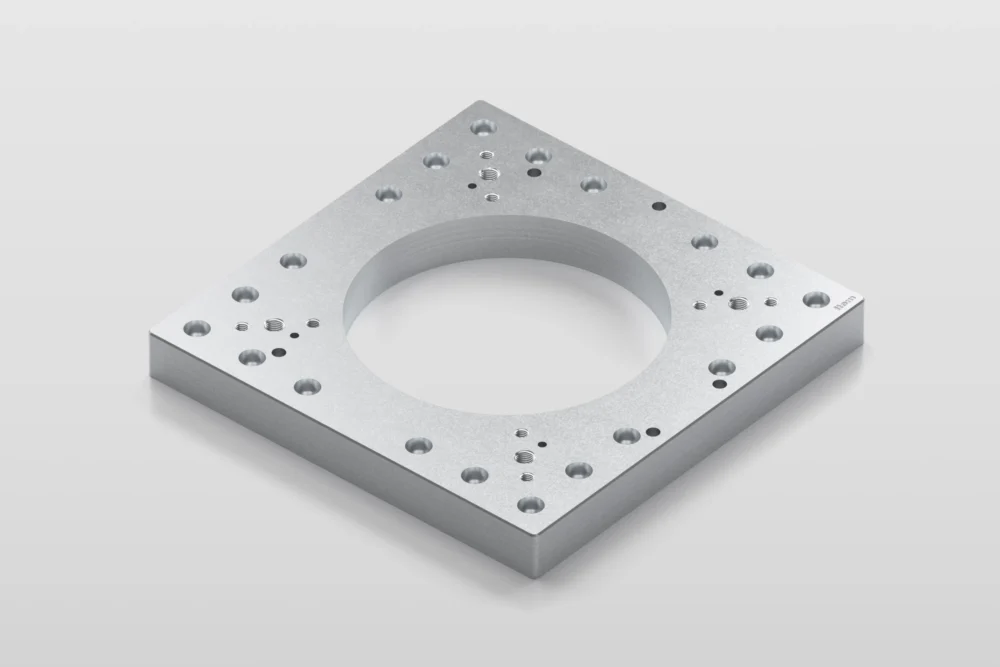

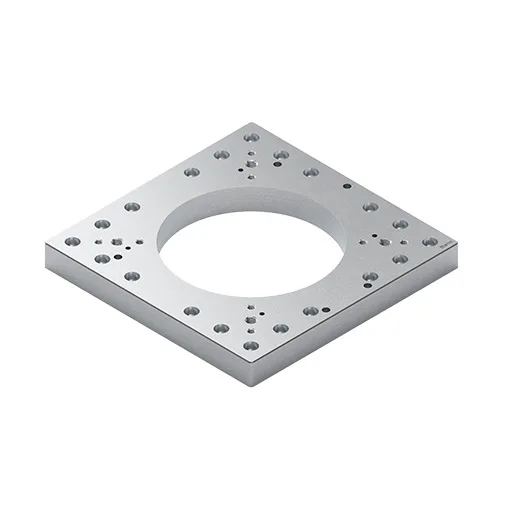

Robot Mounting Plate 8 280x280 T1 is used to securely fasten robots from manufacturers Fanuc and Doosan to profiles and frames that have Line 8 grooves. The pattern of holes has been designed for the H series and P series from Doosan, the CRX-25iA and CRX-30iA from Fanuc and the RV-7 from Mitsubishi. This high-strength aluminium plate is pre-drilled with holes to suit compatible models. item supplies additional mounting plates for cobots and robots from different manufacturers.
