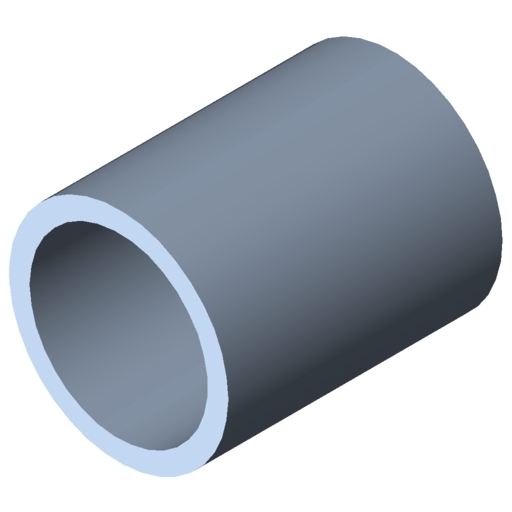

Tube D16x1.5 St, stainless
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| Property | stainless |
| ESD-safe | Yes |
| Moment of Inertia, torsional | It = 0.36 cm4 |
| Moment of Inertia, x-axis | Ix = 0.18 cm4 |
| Moment of Inertia, y-axis | Iy = 0.18 cm4 |
| Weight | m = 0.54 kg/m |
| Delivery unit | cut-off max. 2990 mm |
| Material | St |
| Resistance Moment, x-axis | Wx = 0.23 cm3 |

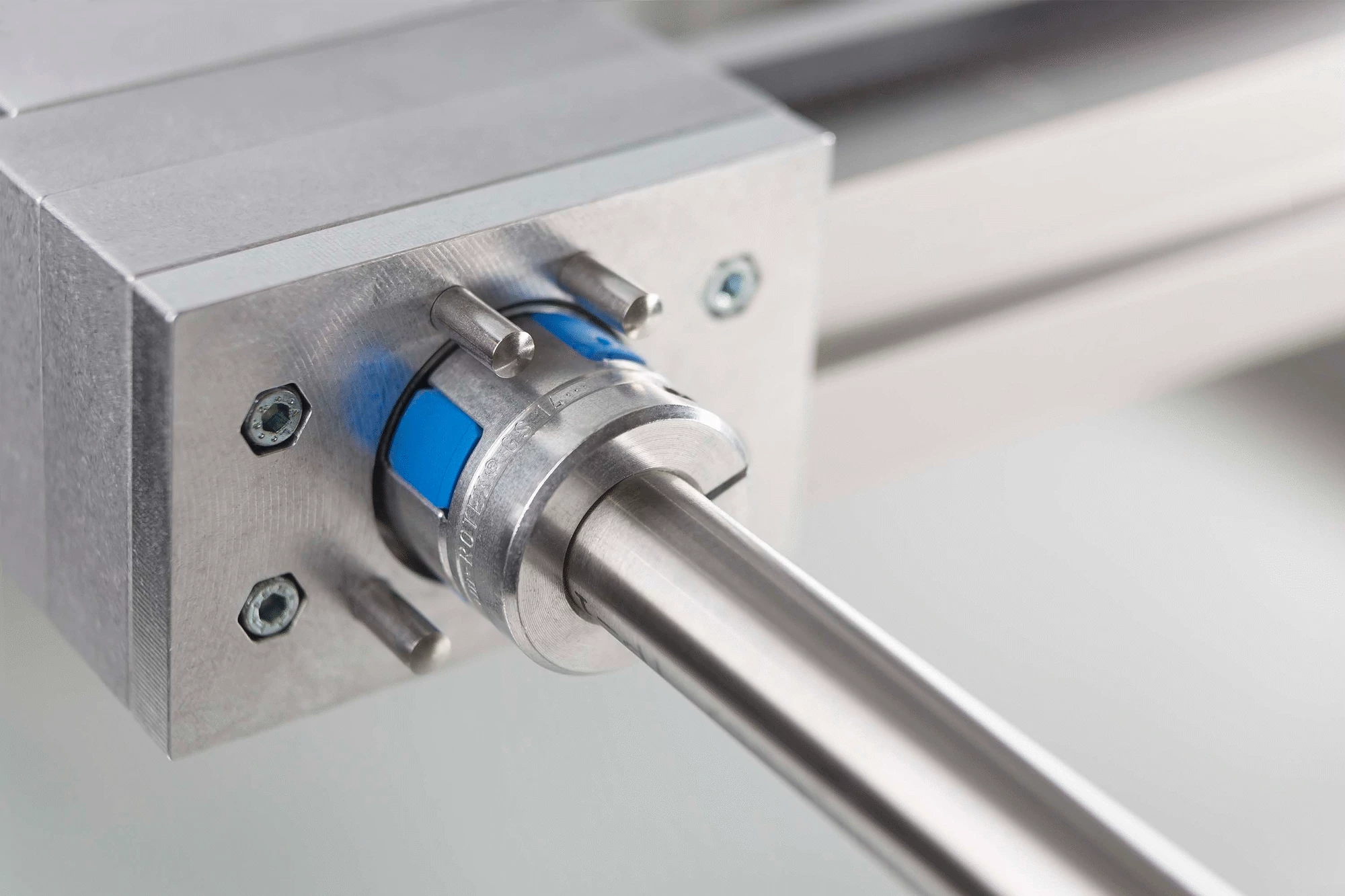

A steel Tube for transmitting torque to two Linear Units GSF 8 40 synchronously. Maximum speed restrictions must be observed as appropriate to the length of the synchroniser shaft.
