| Butt Fastener D30-45° | CADPDFRFQ |
Preview

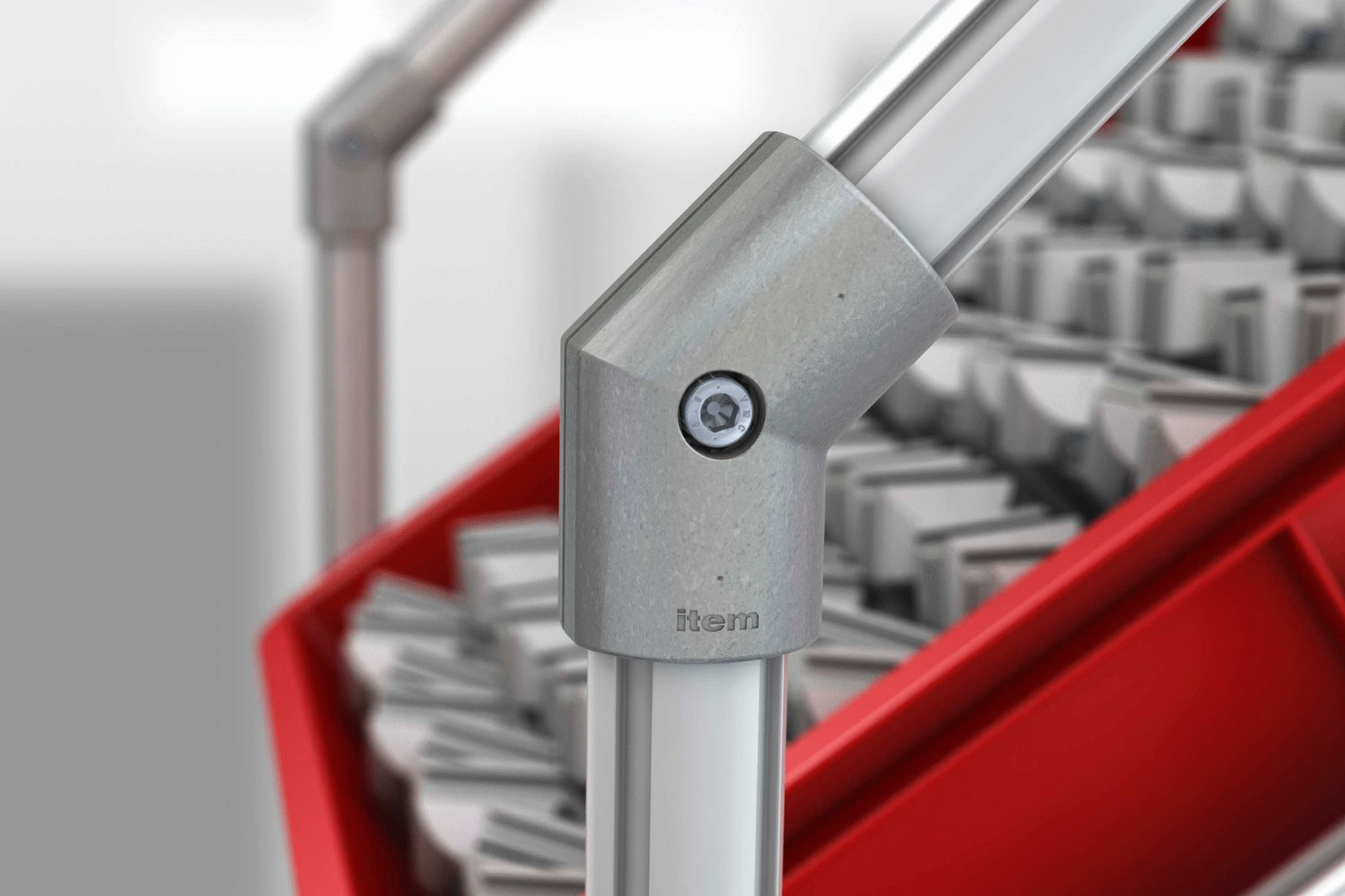

Butt Fastener D30-45°
Preassembled 2 butt fastener halves, die-cast aluminium, natural Hexagon Socket Head Cap Screw similar to DIN 912-M6x29.4, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Scope of Delivery
Preassembled 2 butt fastener halves, die-cast aluminium, natural Hexagon Socket Head Cap Screw similar to DIN 912-M6x29.4, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 131 g |
| Delivery unit | 1 pce. |
| Torque | M = 10 Nm |
The alternatives to a right angle: Butt Fasteners make Profile Tube System D30 even more versatile. Do you need to extend a profile, create rounded corners or chamfer a frame? Then there are creative and strong fasteners to help you do just that by connecting Profile Tubes D30 via their end faces. For direct connections at a diagonal: Following on from 30° (0.0.646.10) and 60° (0.0.646.94 ), there is now a happy medium in the form of Butt Fastener D30-45°. For example, this fastener can be used to design octagonal table tops. Note: Ball Joint Fastener D30 (0.0.646.85) can be used to create supporting struts and profile connections at any angle.
