This product has extended CAD support, please contact Aluflex with measurement specifications and desired CAD format on the product and Aluflex will send you the desired CAD file.

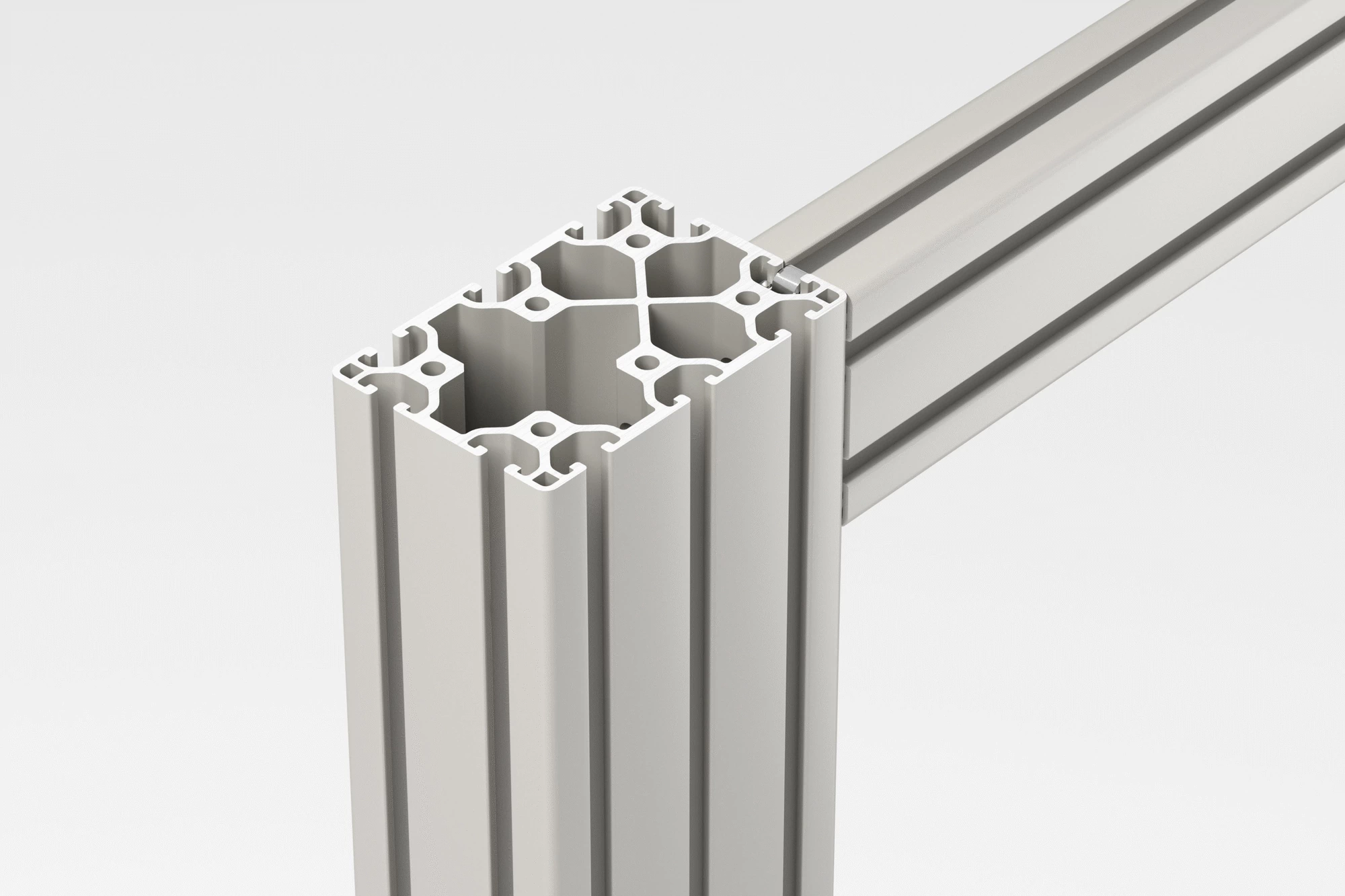

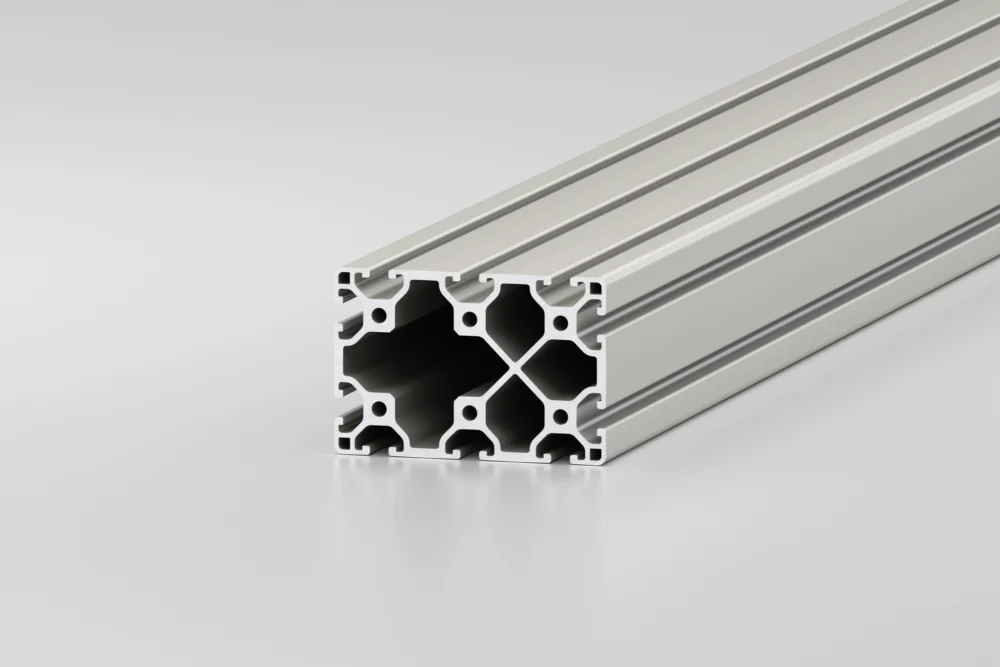

Profile 6 90×60 light, natural
Profile 6 90×60 light, natural
Profile 6 90×60 light, natural | |||
System: 6 line 6 | Material Al, anodized | Property natural | Unit m | ESD Yes | Cross-sectional area A = 14.93 cm2 | Moment of Inertia, x-axis Ix = 58.27 cm4 | Moment of Inertia, y-axis Iy = 121.34 cm4 | Weight, spec. Length m = 4.03 kg/m | Permissible groove extraction force F = 500 N |
