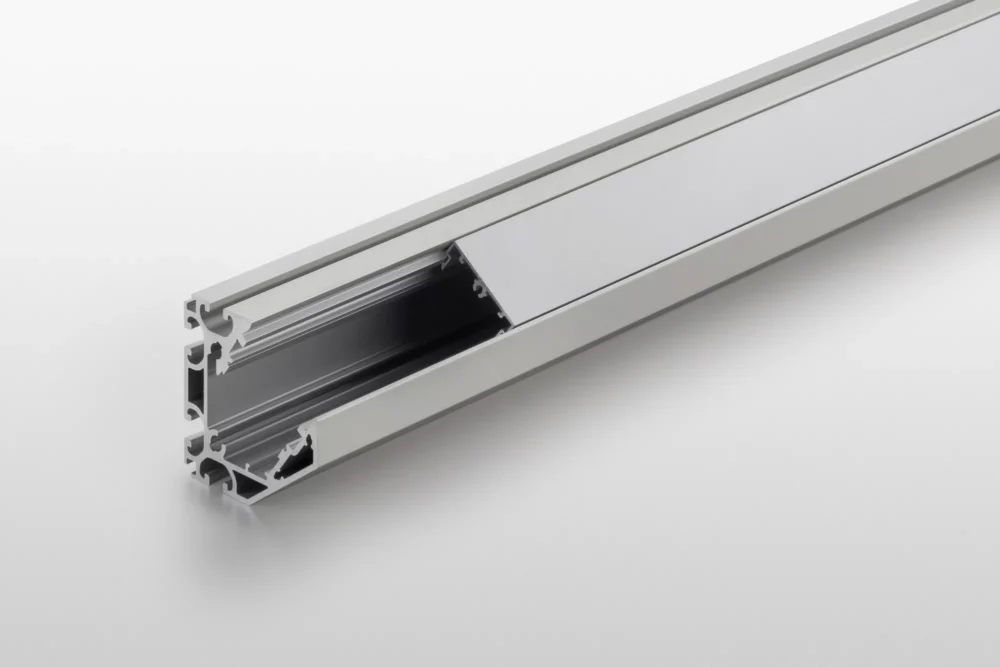

Profile X 8 80×80 M45-36° – XMS, natural

Profile X 8 80×80 M45-36° – XMS, natural

Tuotetunnus (SKU): 0.0.699.76 Osastot: , Avainsana tuotteelle

This product has extended CAD support, please contact Aluflex with measurement specifications and desired CAD format on the product and Aluflex will send you the desired CAD file.

Profile X 8 80×80 M45-36° – XMS, natural

System: 8

line 8

Material

Al, anodized

Property

natural

Unit

m

ESD

No

Cross-sectional area

A = 13.606 cm2

Moment of Inertia, x-axis

Ix = 82.27 cm4

Moment of Inertia, y-axis

Iy = 73.03 cm4

Weight, spec. Length

m = 3.674 kg/m

Permissible groove extraction force

F = 5000 N
