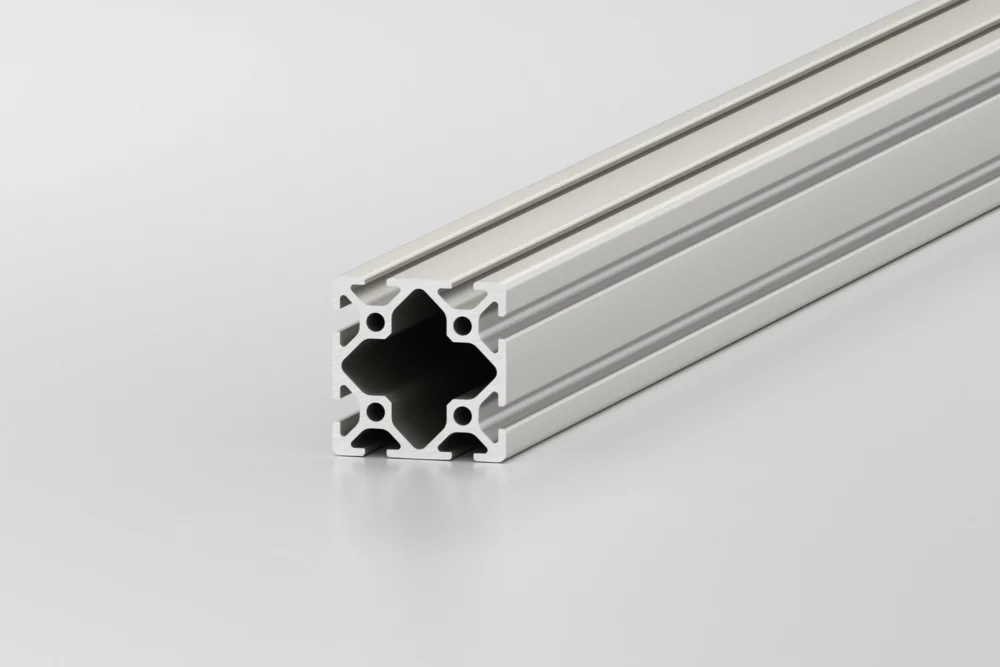

Profile 5 40×40, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 5 | line 5 |
|---|---|
| ESD-safe | Yes |
| Cross-sectional area | A = 5.14 cm2 |
| Moment of Inertia, torsional | It = 5.38 cm4 |
| Moment of Inertia, x-axis | Ix = 9.3 cm4 |
| Moment of Inertia, y-axis | Iy = 9.3 cm4 |
| Weight | m = 1.39 kg/m |
| Delivery unit | cut-off max. 6000 mm |
| Material | Al, anodized |
| Permissible groove extraction force | F = 500 N |
Profiles 5 are ideal for lightweight constructions of all kinds. The small exterior dimensions ensure particularly compact jigs, covers and handling equipment. The full functionality of the building kit is retained.
