| Table Top OCTA 25-1110×555 to suit Table Top Support Set 8 420-45°, grey, similar to RAL 7035 | CADPDFRFQ |

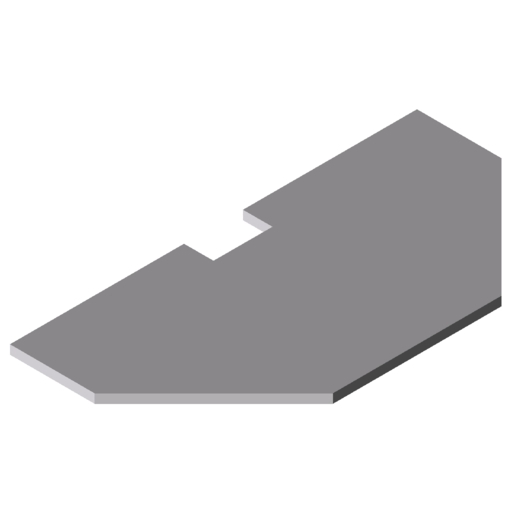

Preview

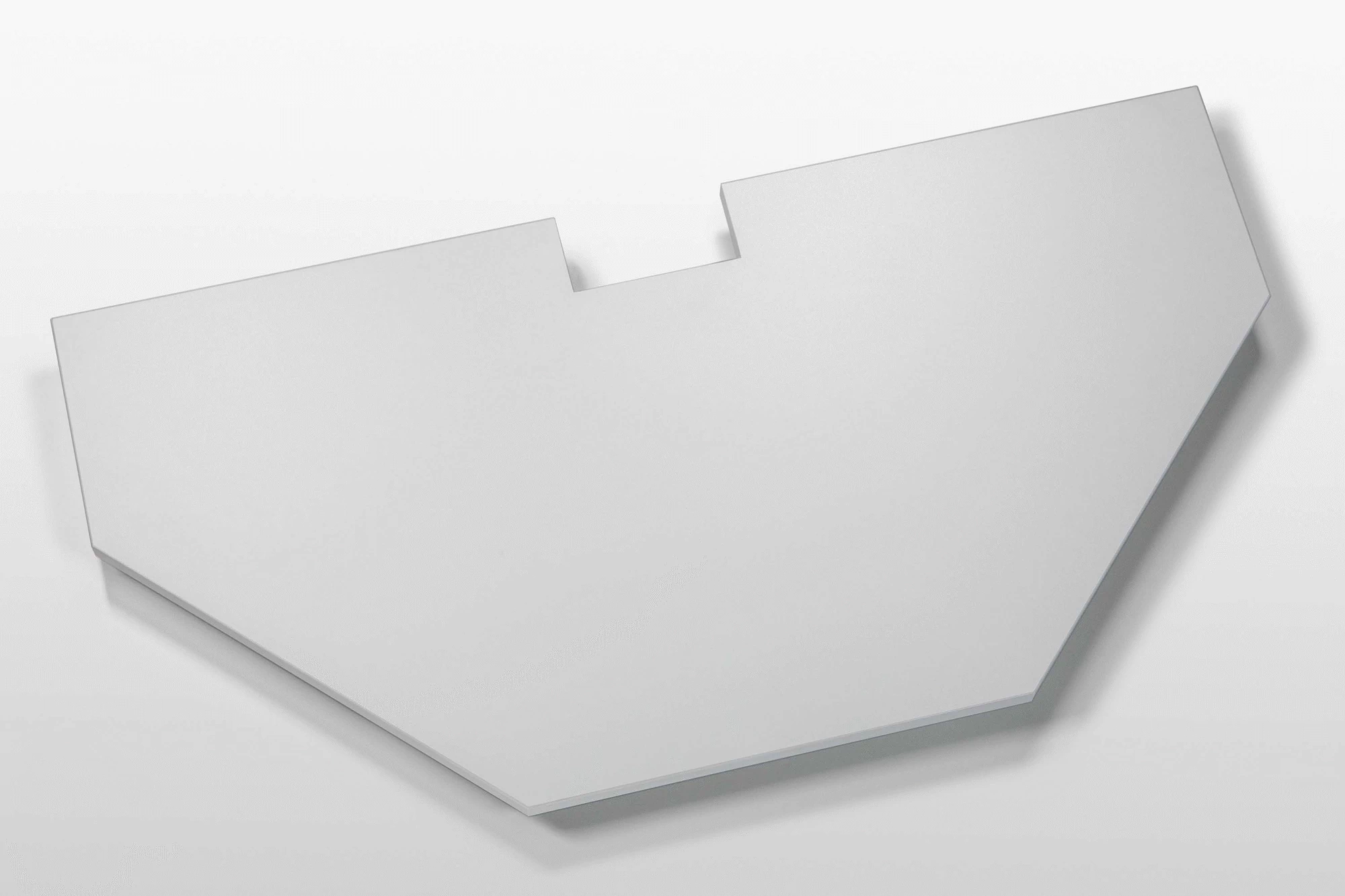

Table Top OCTA 25-1110×555 to suit Table Top Support Set 8 420-45°, grey, similar to RAL 7035

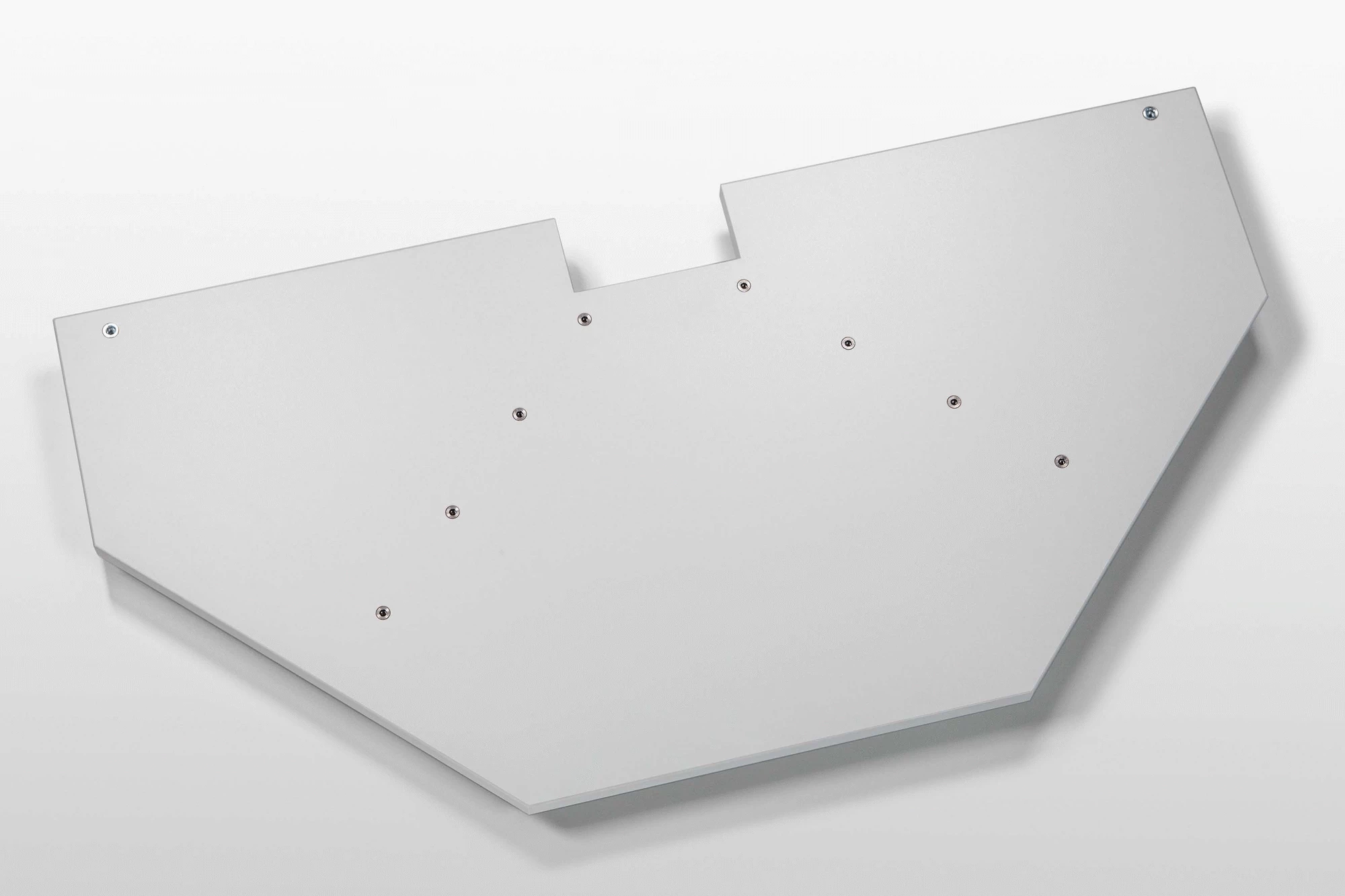

Table Top OCTA 25-1110×555, plastic coated 8 threaded inserts 12×15 M6 (installed) 2 threaded inserts 14×15 M8 (installed)
Scope of Delivery
Table Top OCTA 25-1110x555, plastic coated 8 threaded inserts 12x15 M6 (installed) 2 threaded inserts 14x15 M8 (installed)
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 8 kg |
| Delivery unit | 1 set |
| Colour | grey, similar to RAL 7035 |

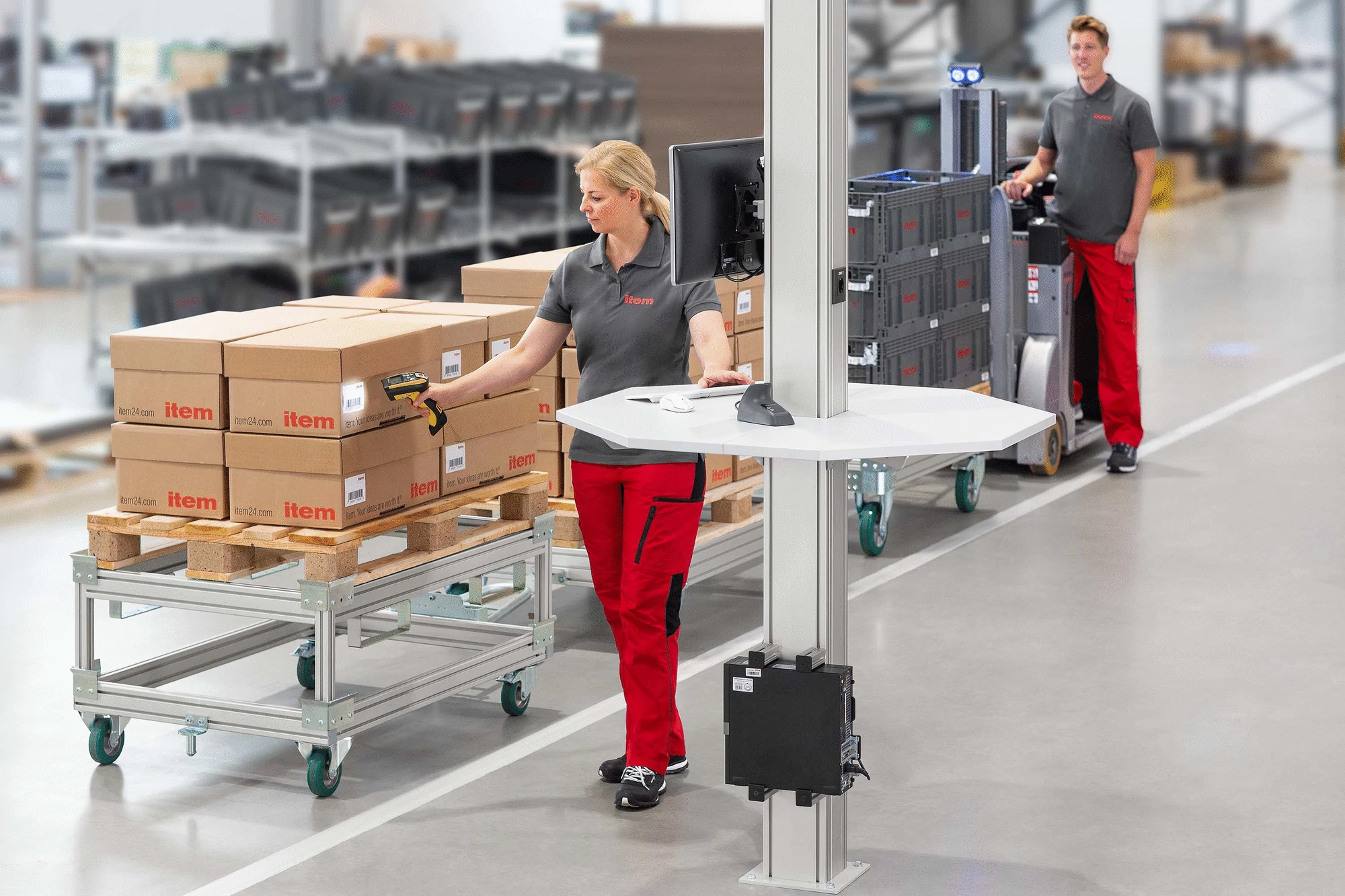

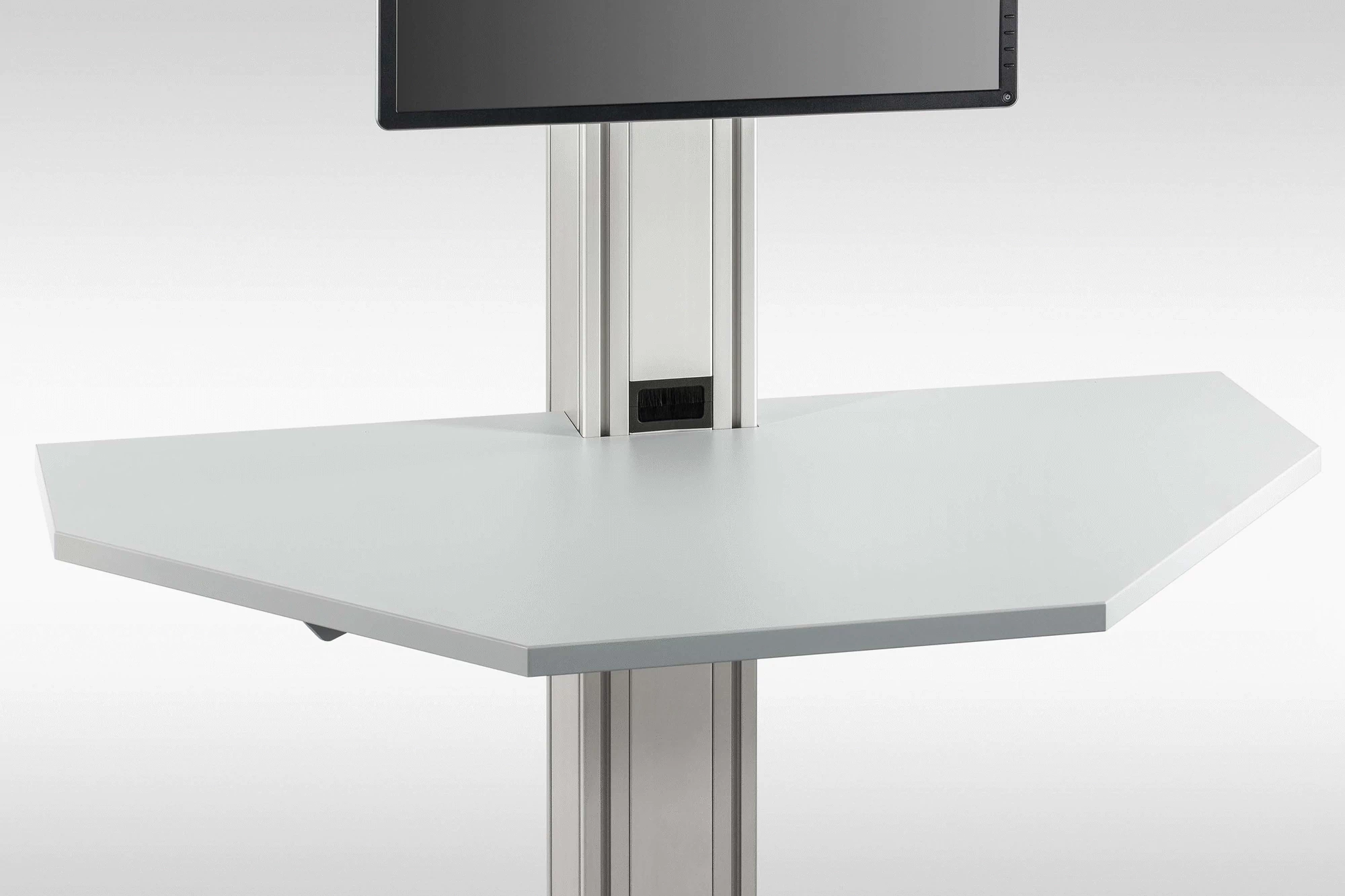

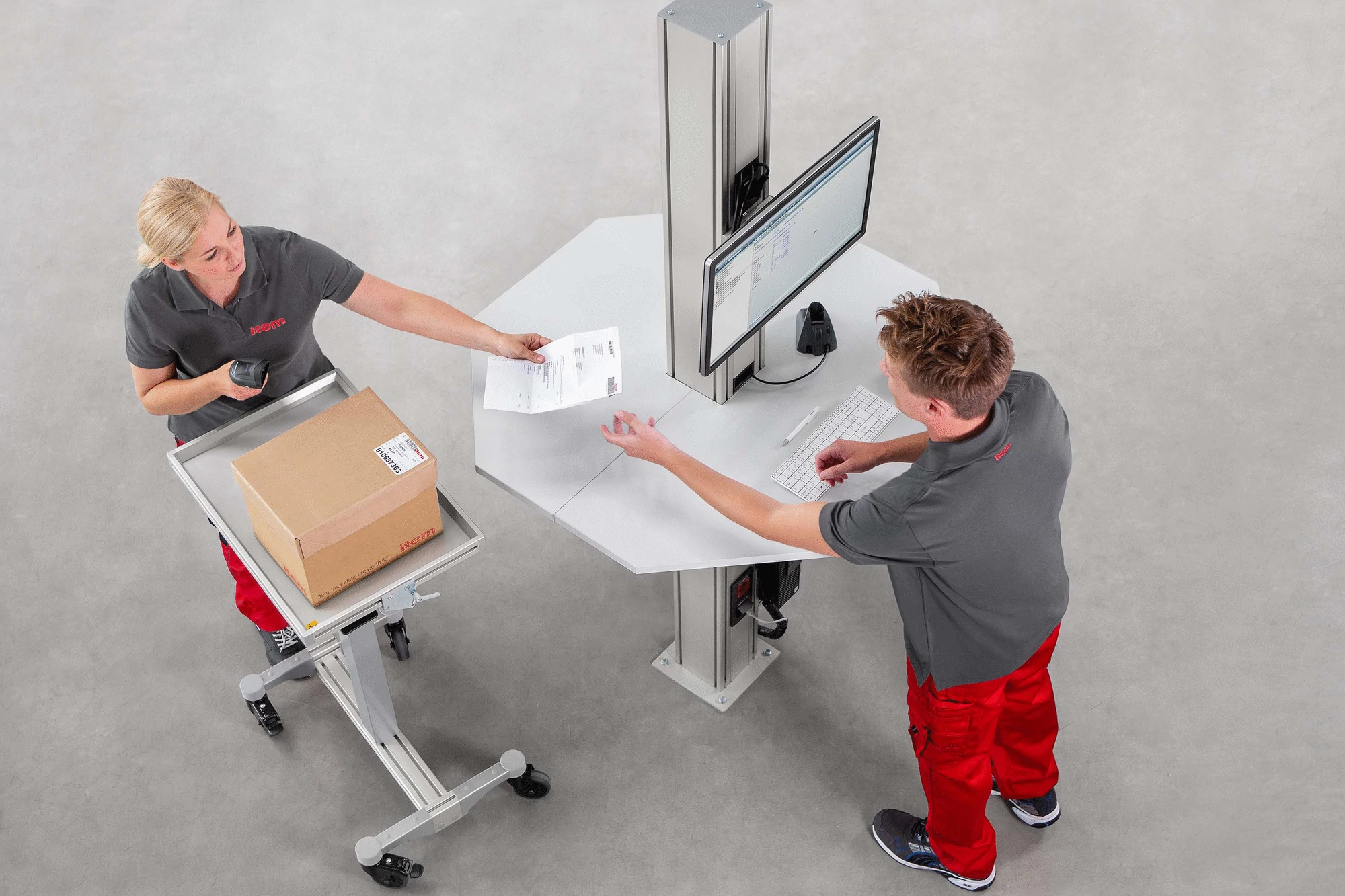

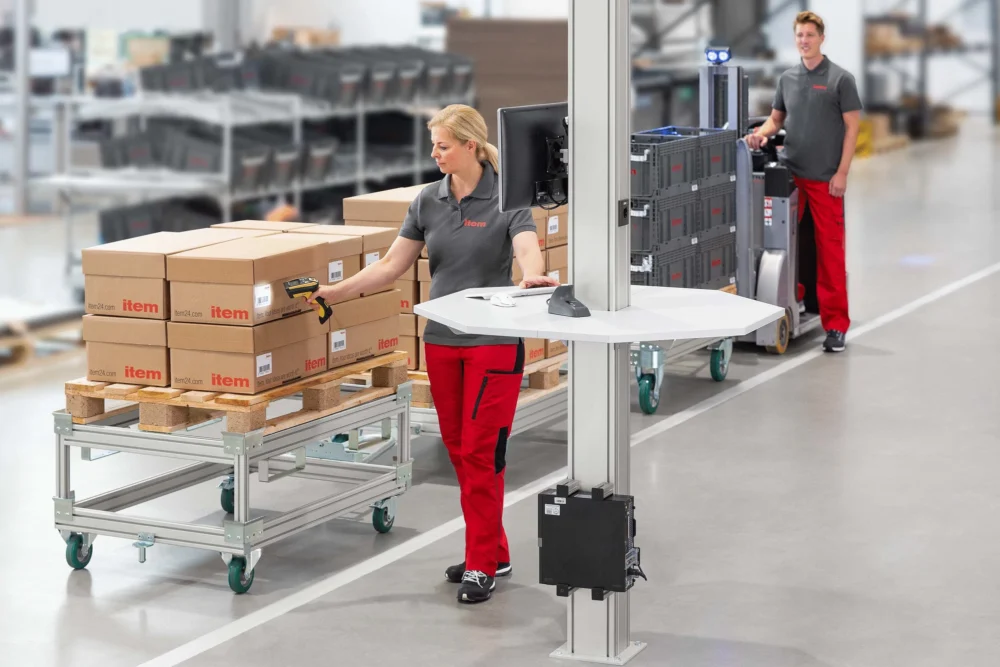

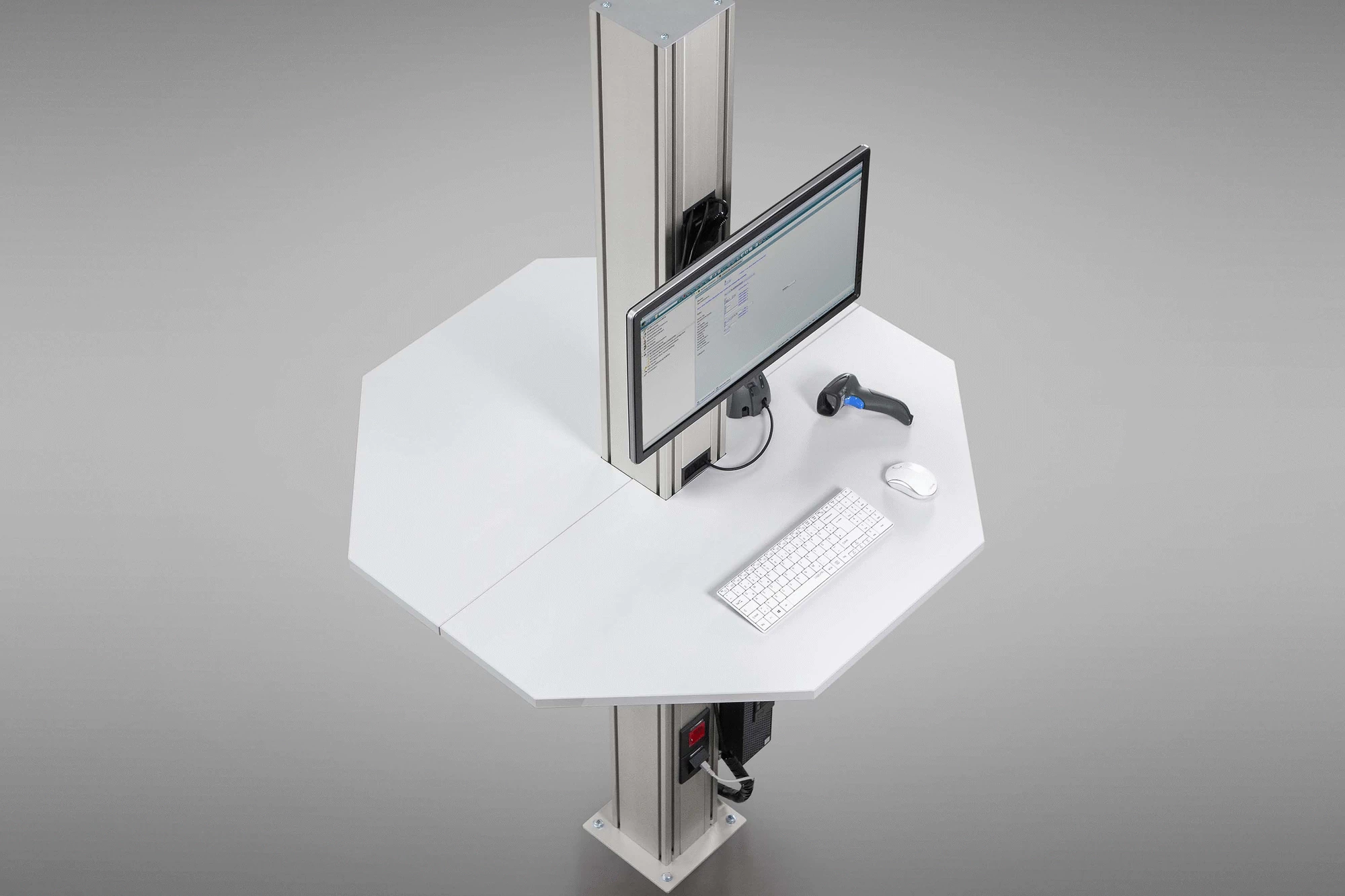

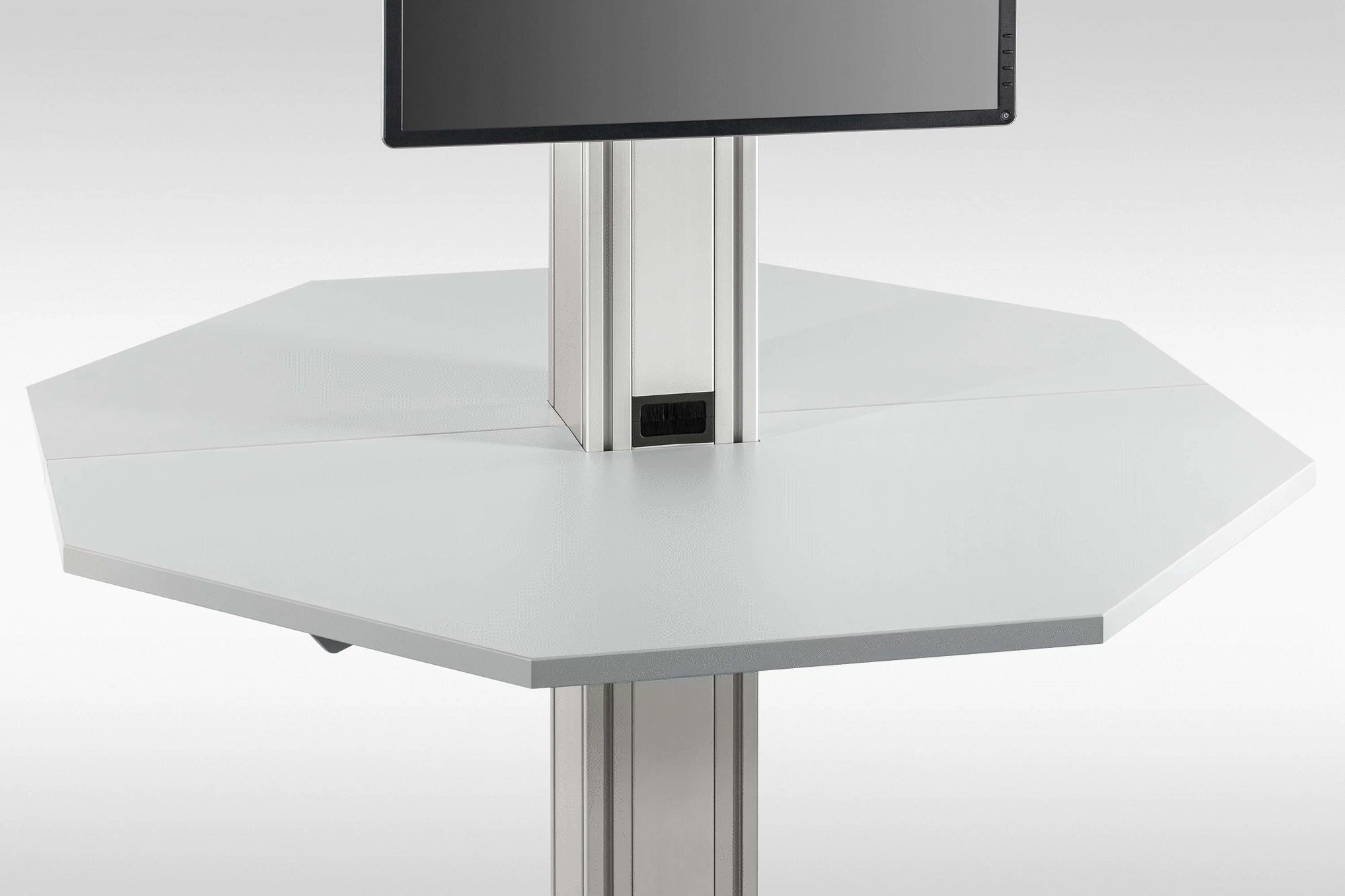

Table Top OCTA 25-1110x555 can be used to create an additional working surface in a production or logistics area. It wraps around half of the Installation Column, so that two Table Tops OCTA 25 can be installed together to produce an octagonal working surface that encircles the Installation Column. The Table Top features M6 threaded inserts on the underside so it can be quickly and securely fixed in place using Table Top Support Set 8 420-45°. To ensure optimum alignment, the join between two Table Tops OCTA 25 should be stabilised using two Brackets 8 80x40 flat St (0.0.692.16) and four Countersunk Screws DIN 7991 M8x18 (8.0.008.84).
