| Base Plate 8 40×40, M10, black | CADPDFRFQ |
Preview
Base Plate 8 40×40, M10, black
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Thread | M10 |
| Weight | m = 119 g |
| Delivery unit | 1 pce. |
| Material | Die-cast zinc |
| Colour | black |

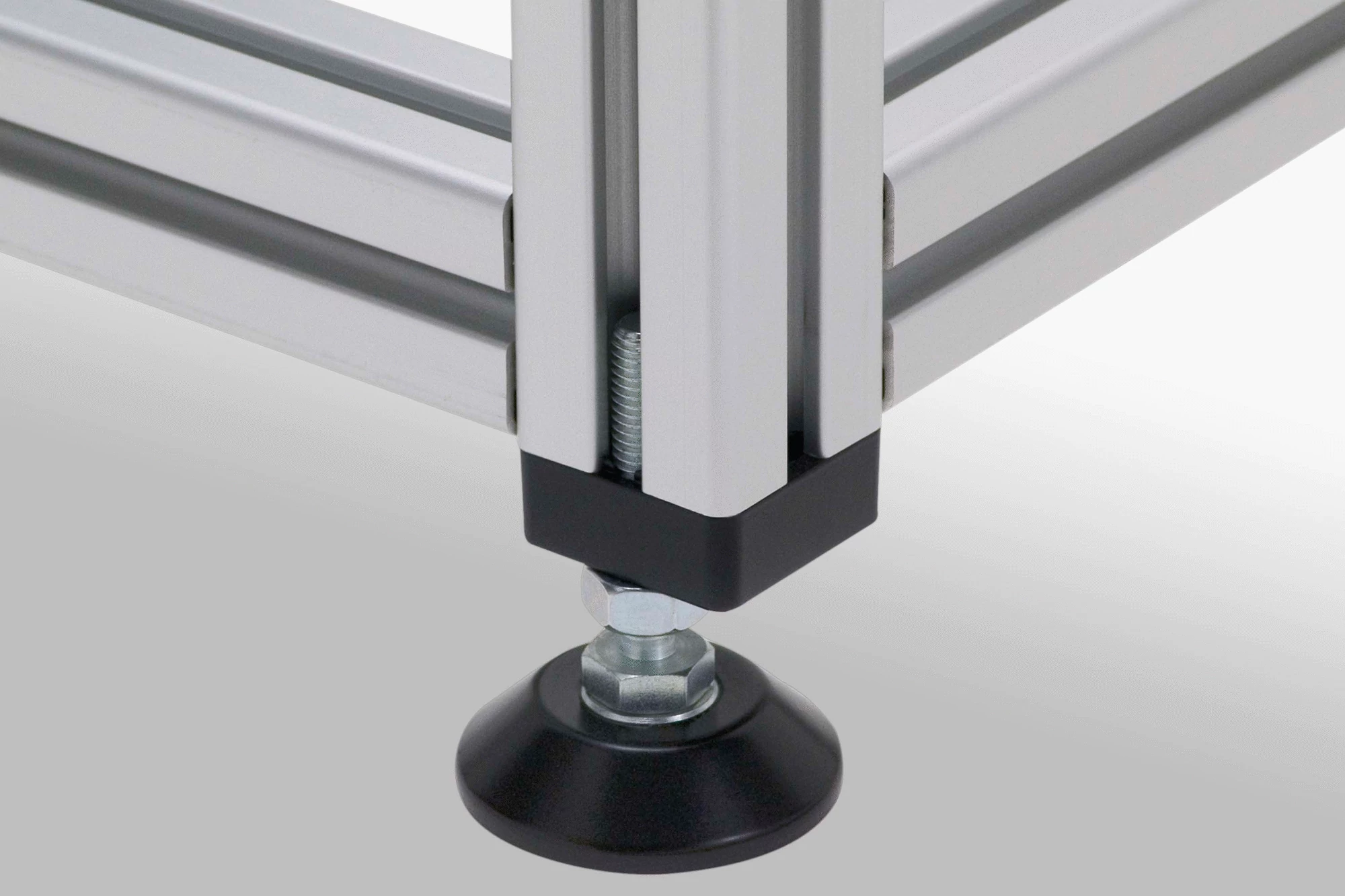

Base Plate 8 40x40 is a stable fastening plate for accommodating Adjustable Feet that are to be screwed to Profiles 8 40x40. Where a long adjustment path is required, Adjustable Feet with long threaded spindles are often used, although the length of thread in the core bore is insufficient. Base Plate 8 40x40, M10 is fitted with a 16 mm long thread that can accommodate any length of Adjustable Foot. The threaded spindle is then contained within the profile groove.
Permissible pressure loading of Base Plate 8 40x40, M10 is: F max. = 10,000 N Ensure that the loading limit for the Adjustable Foot is not exceeded!
