| Pneumatic Connecting Plate 8 80×40 G3/8, black | CADPDFRFQ |
Preview
Pneumatic Connecting Plate 8 80×40 G3/8, black
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 248 g |
| Delivery unit | 1 pce. |
| Material | Die-cast zinc |
| Colour | black |

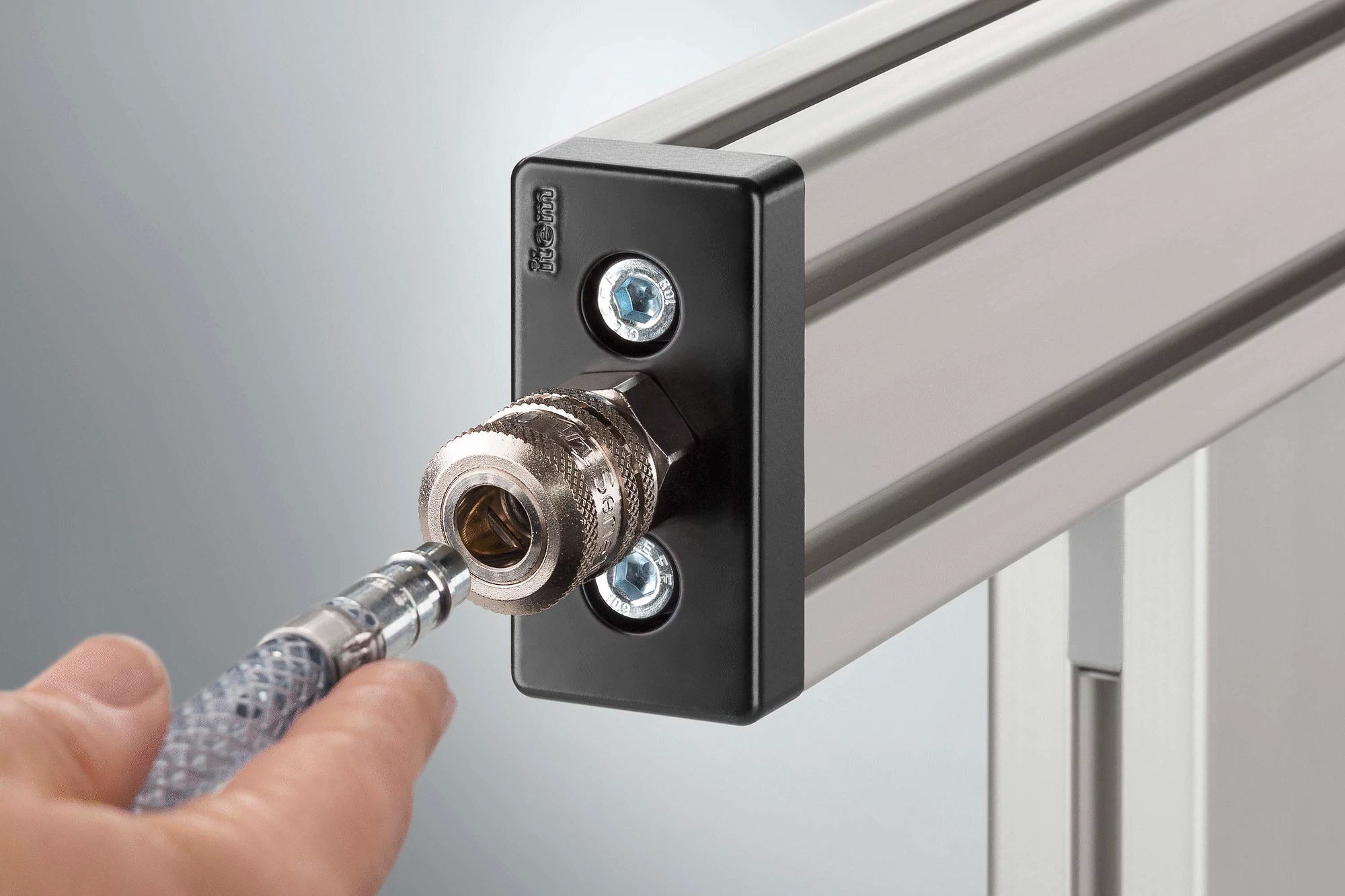

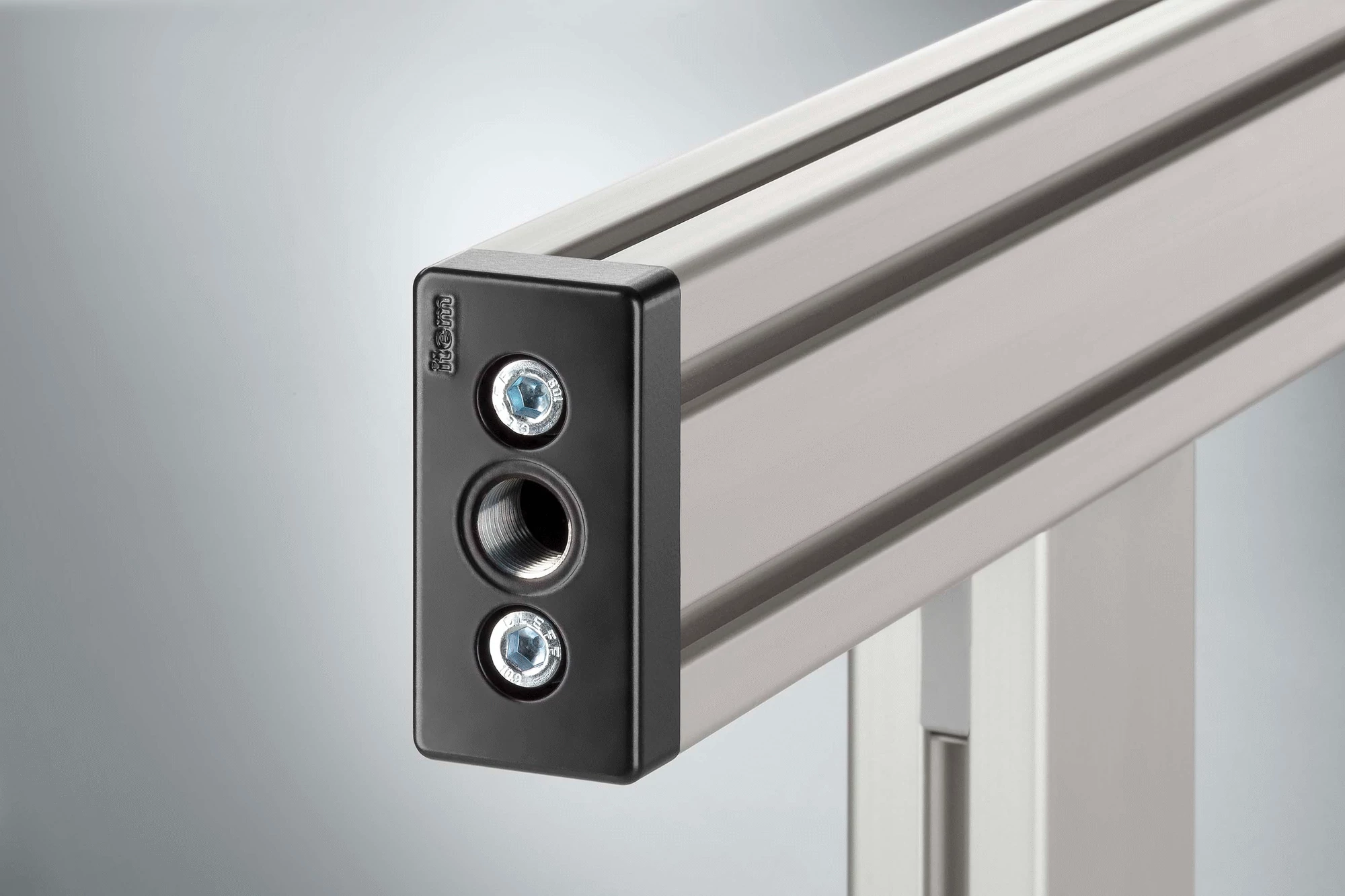

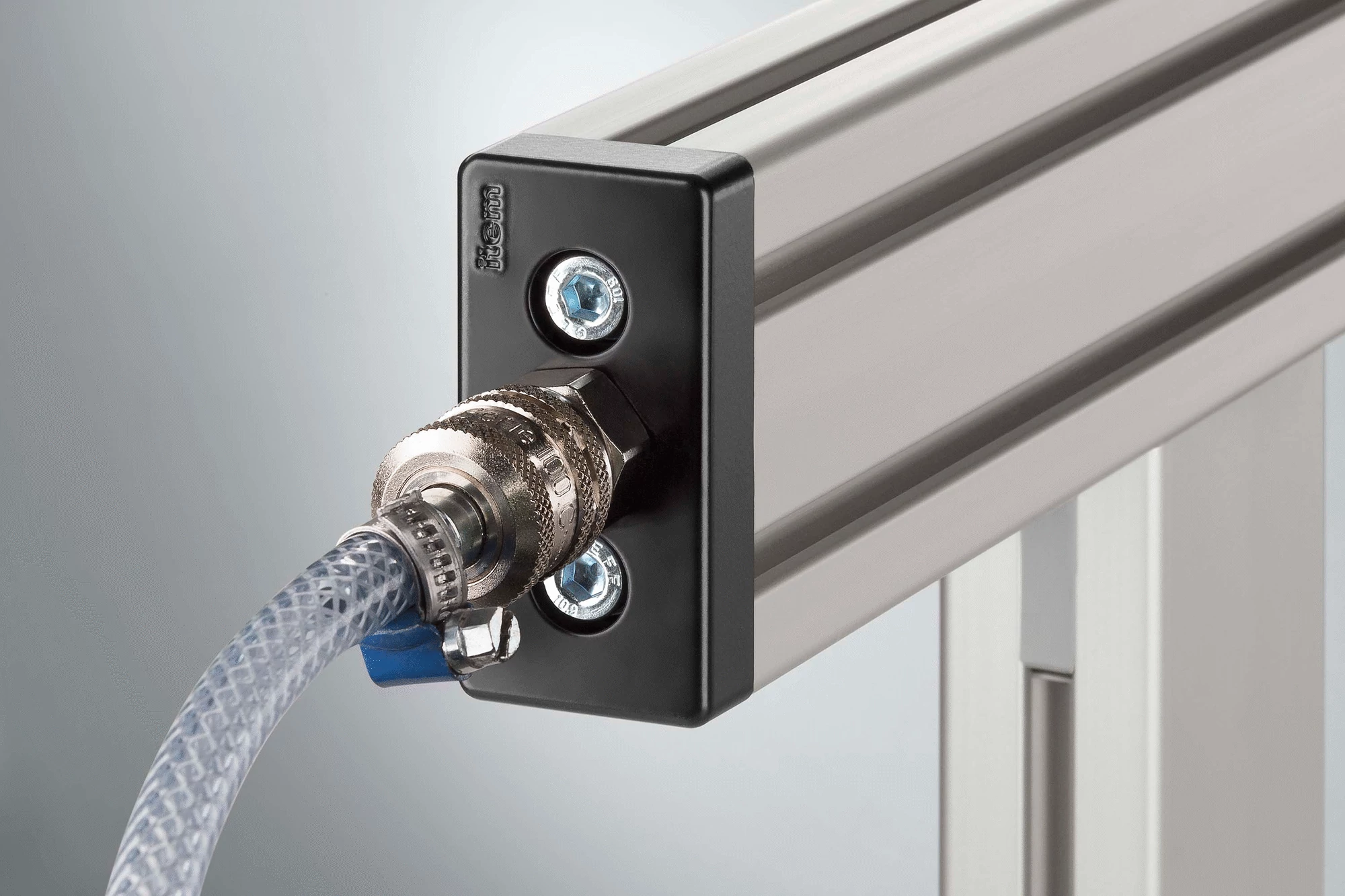

Air-tight, rapid and practical! Pneumatic Connecting Plate 8 80x40 G3/8 is screwed onto the end face of a Profile 8 80x40 so that the profile can be used as a compressed air conduit. The compressed air coupling is screwed into the G3/8 thread. The Pneumatic Connecting Plate is installed in the core bores of the profile using Hexagon Socket Head Cap Screws DIN 912-M8x20 (8.0.004.41). Note: Pneumatic Connecting Plate 8 80x40 G3/8 is used with Seal 8 80x40 PE (0.0.420.80). item offers numerous components for integrating complete compressed-air solutions into profile constructions, such as Pneumatic Universal-Fastening Sets for leak-tight and robust profile connections. item Pneumatic Connecting Plates are also available with a G1/2 connection (0.0.406.34, 0.0.406.25).
