| Socket 33° M45 1 Gang, black grey, similar to RAL 7021 | CADPDFRFQ |
Preview
Socket 33° M45 1 Gang, black grey, similar to RAL 7021
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 36 g |
| Delivery unit | 1 pce. |
| Material | PC |
| Colour | black grey, similar to RAL 7021 |

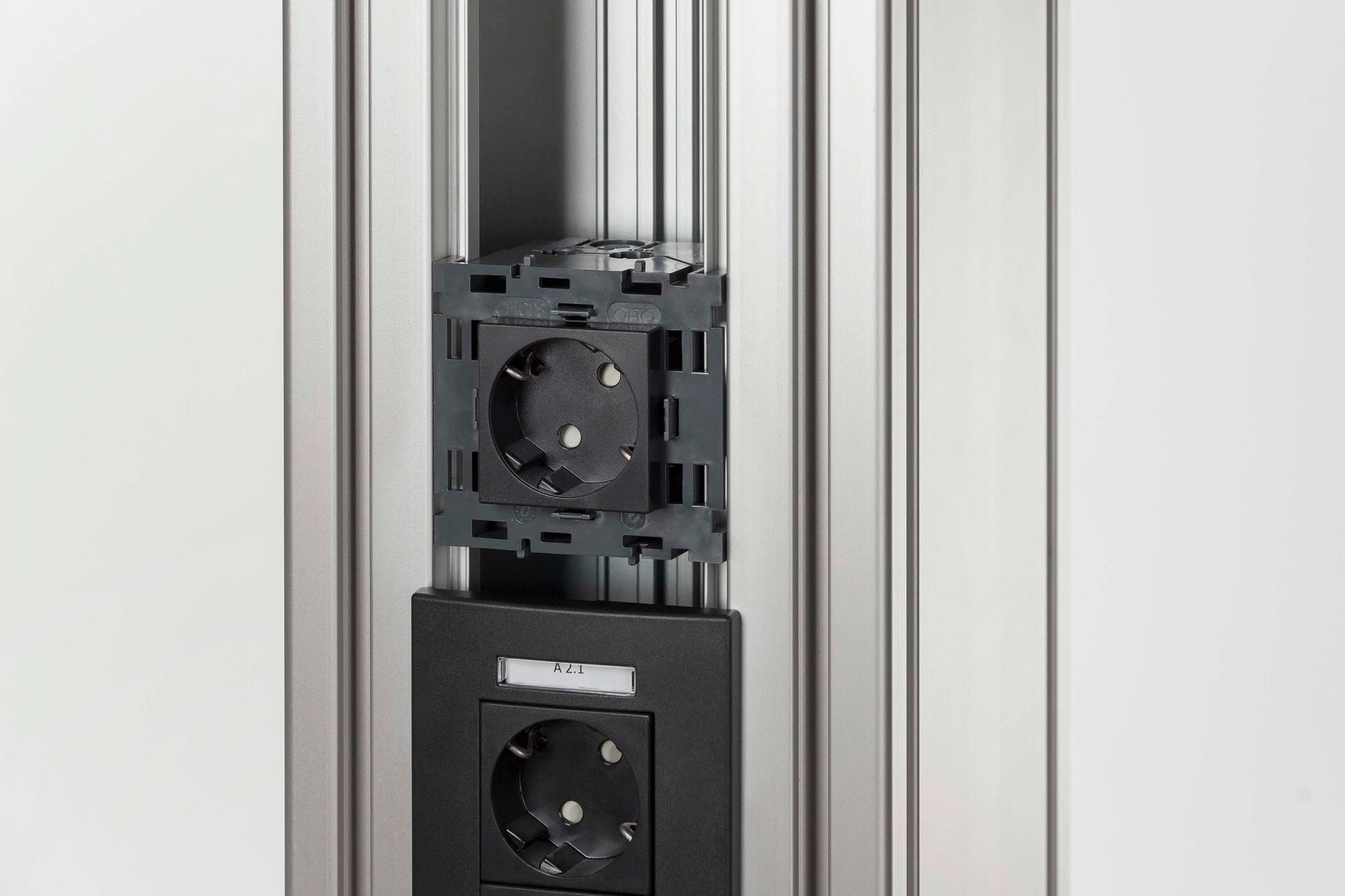

The earthed Socket with enhanced shock protection is mounted on the item installation profiles using Mounting Box K76 M45. The 2-pole connection is designed for standard conditions (16 A and 250 V alternating current). The contact arrangement is offset by 33 degrees. The front-locking Schuko (protective earth) flush-mounted socket features connection terminals to IEC 60884-1. The Sockets should be covered with a suitable Face Plate.
