Panel Clamp X 6-8
2 housing components, die-cast zinc, white aluminium 2 inserts, PUR, transparent Bolt D6x21.5, St, bright zinc-plated Collar D6/D10, PUR, grey T-Slot Nut V 8 St M6, bright zinc-plated Button-Head Screw ISO 7380-M6x16, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 7984-M5x20, St, bright zinc-plated 2 square nuts similar to DIN 557-M5, St, bright zinc-plated
Scope of Delivery
2 housing components, die-cast zinc, white aluminium 2 inserts, PUR, transparent Bolt D6x21.5, St, bright zinc-plated Collar D6/D10, PUR, grey T-Slot Nut V 8 St M6, bright zinc-plated Button-Head Screw ISO 7380-M6x16, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 7984-M5x20, St, bright zinc-plated 2 square nuts similar to DIN 557-M5, St, bright zinc-plated
Properties
| Line | line X |
|---|---|
| line 6 | line 6 |
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 175 g |
| Force max | Fmax. = 100 N |
| Delivery unit | 1 set |

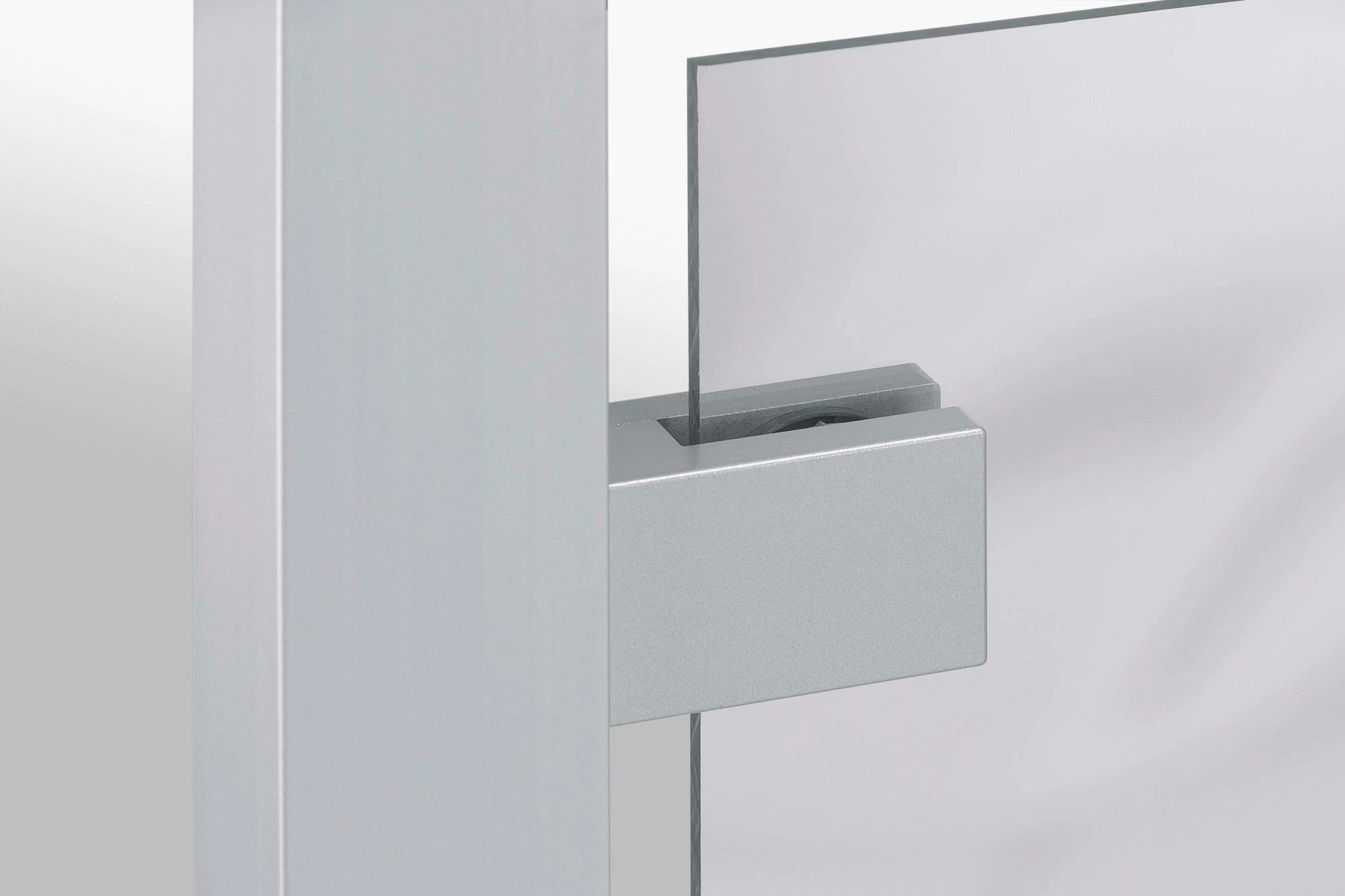

Panel Clamp X 6-8 is a fastener for unframed panels (4 - 8 mm thick) that does not require any further machining of the panel element. The panel element is held securely by elastic inserts. Fitting the panel element securely using internal bolts is also an option.

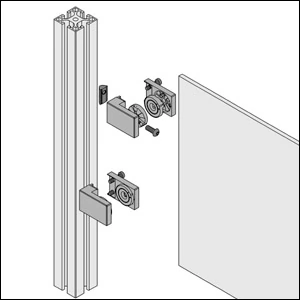

The Panel Clamp is fastened in the groove in Profiles 8 using a screw connection with T-Slot Nut 8. When using the Panel Clamp with Line 6 profiles, a T-Slot Nut 6 St M6 (0.0.419.40) with a Button-Head Screw M6x14 (0.0.417.26) is required. The anti-torsion elements are also to be removed as appropriate for this purpose.

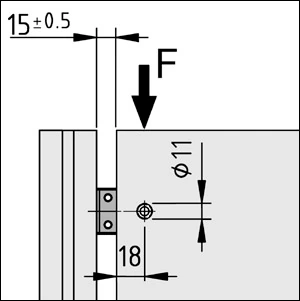

A clearance of 15 mm is to be ensured when cutting the panel element. When using fastening bolts, through bores with a diameter of 11 mm also need to be cut. Max. load for each Panel Clamp without a fastening bolt F max. = 100 N.

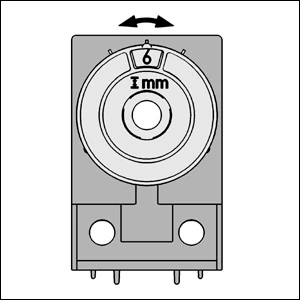

The Panel Clamp can be adapted to panel elements between 4 and 8 mm thick by turning the elastomer inserts. A window in the insert shows the selected panel thickness.
