| Ball Joint Fastener 8 D30 | CADPDFRFQ |
Preview

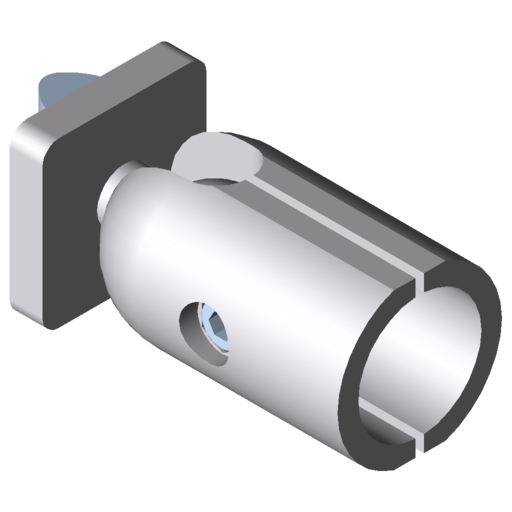

Ball Joint Fastener 8 D30
Partially preassembled Ball 40×40, die-cast Al, natural 2 ball joint fastener halves, ball socket, die-cast Al, natural Hexagon Socket Head Cap Screw similar to DIN 912 M6x29.4, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912 M8x40, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated T-Slot Nut 8 St M8, St, bright zinc-plated
Scope of Delivery
Partially preassembled Ball 40x40, die-cast Al, natural 2 ball joint fastener halves, ball socket, die-cast Al, natural Hexagon Socket Head Cap Screw similar to DIN 912 M6x29.4, St, bright zinc-plated Hexagon Socket Head Cap Screw DIN 912 M8x40, St, bright zinc-plated Hexagon nut DIN 934 M6-I8I, St, bright zinc-plated T-Slot Nut 8 St M8, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 190 g |
| Delivery unit | 1 set |
| Torque | M = 10 Nm |
Ball Joint Fastener 8 D30 incorporates a flange plate that enables connection to a Line 8 Profile.
Turning on a pin. Ball Joint Fasteners are used to install struts at any angle in the flick of a wrist. A stable integral ball in the fastener produces this versatility. It enables users to twist and turn the fastener to the desired angle and fix it in place with a single screw. The Ball Joint Fasteners can be turned through 180° in all directions. As a result, they are ideal for fastenings in any spatial arrangement.
