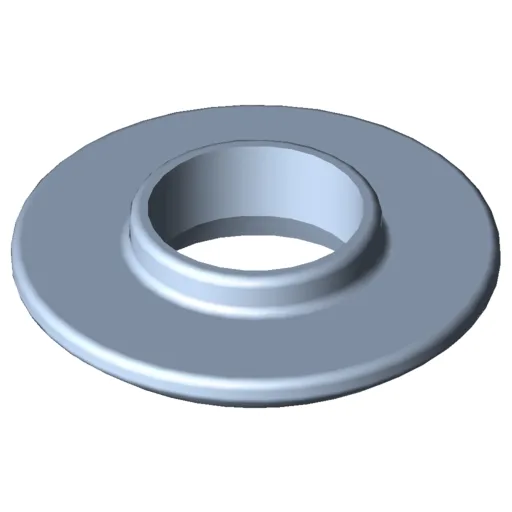

Locating Washer 5 D4, bright zinc-plated
a min. = ⌀ 3.5 mm
Scope of Delivery
a min. = ⌀ 3.5 mm
Properties
| line 5 | line 5 |
|---|---|
| Property | bright zinc-plated |
| ESD-safe | No |
| Weight | m = 0.63 g |
| Delivery unit | 1 pce. |
| Material | St |
Locating Washers for optimising the application of screw forces when using screws in profile grooves which are wider than the screw‘s nominal diameter (suitable for Button-Head Screws DIN ISO 7380). The screw can be tightened through a mounting bore (similar to Standard Profile Connection).
Locating Washers can be used to conceal the component securing mechanism (screw head in profile groove, thread in component).
In addition, the Locating Washers allow Standard Connections (without anti-torsion element) between profiles of different Lines or they may be used simply to centre attachments.
