| End Cap D30 H43, grey similar to RAL 7042 | CADPDFRFQ |
Preview
End Cap D30 H43, grey similar to RAL 7042
Preassembled End Cap D30 H43, PA-GF Internal fastener D30 claw Hexagon Socket Head Cap Screw DIN 912 M6x22, St, bright zinc-plated Washer, St, bright zinc-plated
Scope of Delivery
Preassembled End Cap D30 H43, PA-GF Internal fastener D30 claw Hexagon Socket Head Cap Screw DIN 912 M6x22, St, bright zinc-plated Washer, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | No |
| Weight | m = 47.8 g |
| Delivery unit | 1 pce. |
| Colour | grey similar to RAL 7042 |

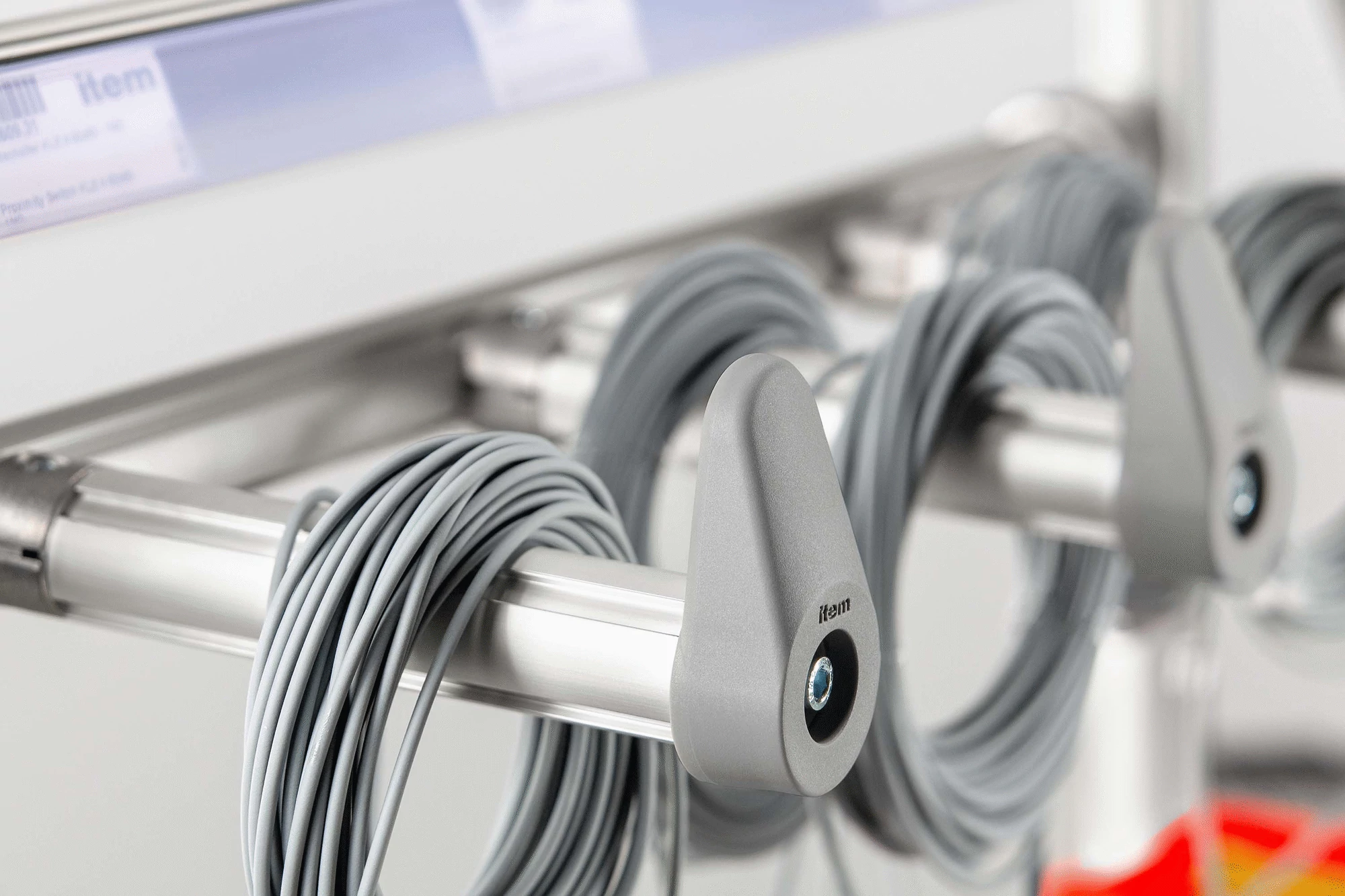

Making sure everything stays in place! End Cap D30 H43 is a raised end piece for (Profile) Tubes. It ensures that cables or rubber door seals that have been draped over a profile won’t slide off the end. The thick-walled design with rounded edges ensures products aren’t damaged when removed. This product can turn any cylindrical D30 aluminium profile into a large hook. The End Cap is simply screwed onto the end face of a Tube D30 or Profile Tube D30 using the preassembled claw fixing. This produces a torsion-resistant connection without the need for any additional steps. The claw of the fixing can also be removed so the End Cap can be screwed to an M6 thread in Profile Tube D30 heavy duty or Profile 6 D30. This also removes the anti-torsion feature.
