| Door Profile Cap Set 8 103×40, natural | CADPDFRFQ |
Preview
Door Profile Cap Set 8 103×40, natural
2 Abdeckkappen A, Al 2 Abdeckkappen B, Al 8 Halbrundschrauben ISO 7380-M8x10, St, verzinkt
Scope of Delivery

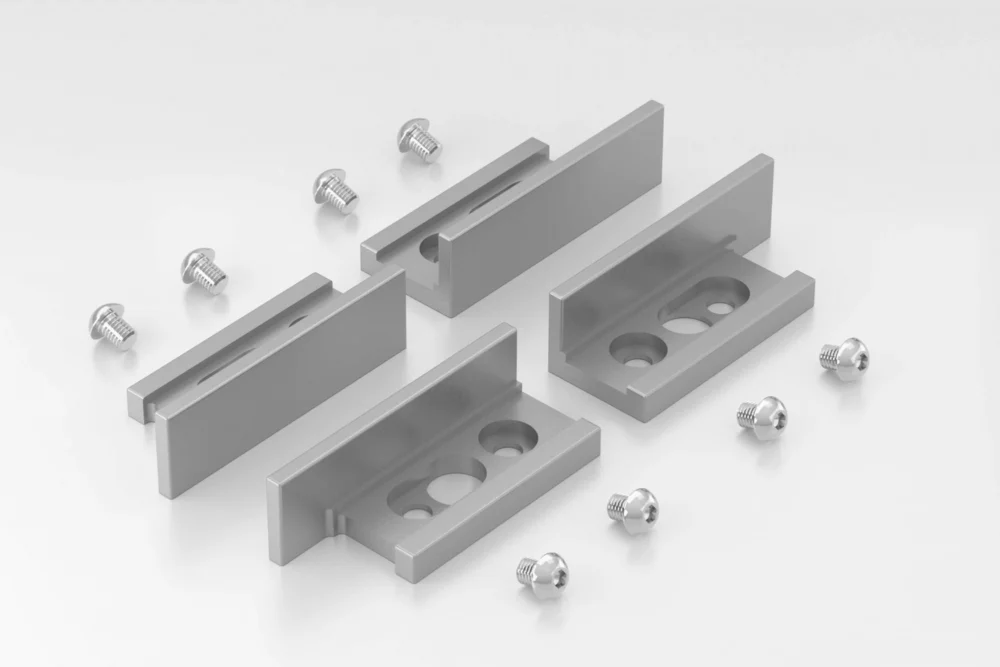

2 caps A, Al 2 caps B, Al 8 Button-Head Screws ISO 7380 M8x10, St, bright zinc-plated
Properties
| Torque | M = 15 Nm |
|---|---|
| line 8 | line 8 |
| ESD-safe | No |
| Weight | m = 428 g |
| Delivery unit | 1 set |
| Colour | natural |
The item Access Door system is based on components that have been carefully coordinated to produce highly functional door solutions. The components are available both separately and as a standardised or configurable door solution. The finished door can be combined with an outer door frame made of Line 8 profiles (standard or light variants). It can also be opened and closed from both sides and features an all-round seal.

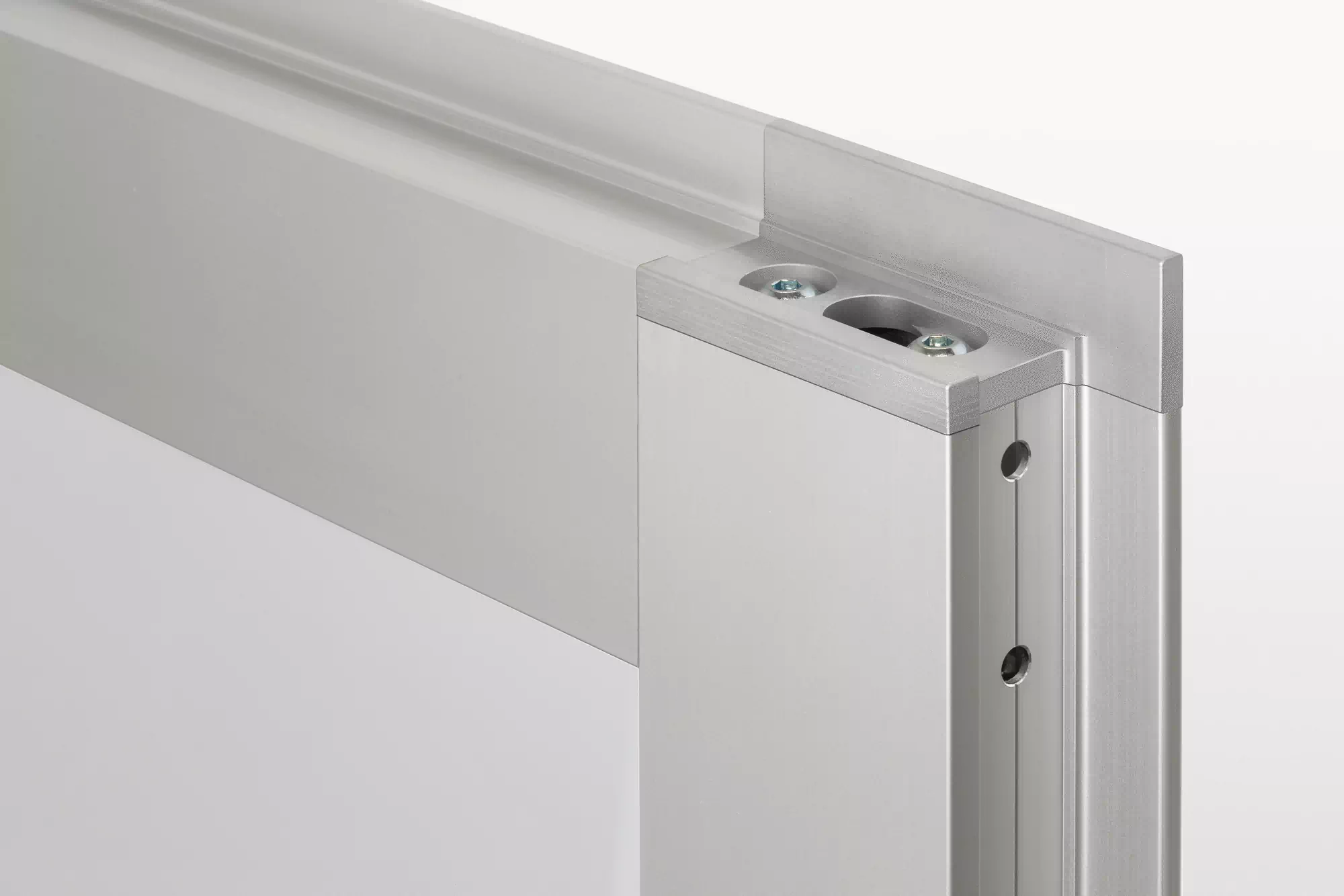

Door Profile Cap Set 8 103x40 seals off Door Profile 8 103x40 (0.0.706.51) at the end face. The caps are screwed into the core bores and form the corners of the door. The set contains the necessary fastening materials.
