| Door Handle Set 9mm | CADPDFRFQ |
Preview
Door Handle Set 9mm
2 Rosetten-Halbgarnituren, Edelstahl matt 1 Drückerstift, Edelstahl matt 8 Blechschrauben ISO 14586-4,8×19 TX25, St, verzinkt
Scope of Delivery
2 escutcheon halves, matt stainless steel 1 handle spindle, matt stainless steel 8 self-tapping screws ISO 14586-4.8x19 TX25, St, bright zinc-plated
Properties
| ESD-safe | No |
|---|---|
| Weight | m = 607 g |
| Delivery unit | 1 set |
The item Access Door system is based on components that have been carefully coordinated to produce highly functional door solutions. The components are available both separately and as a standardised or configurable door solution. The finished door can be combined with an outer door frame made of Line 8 profiles (standard or light variants). It can also be opened and closed from both sides and features an all-round seal.

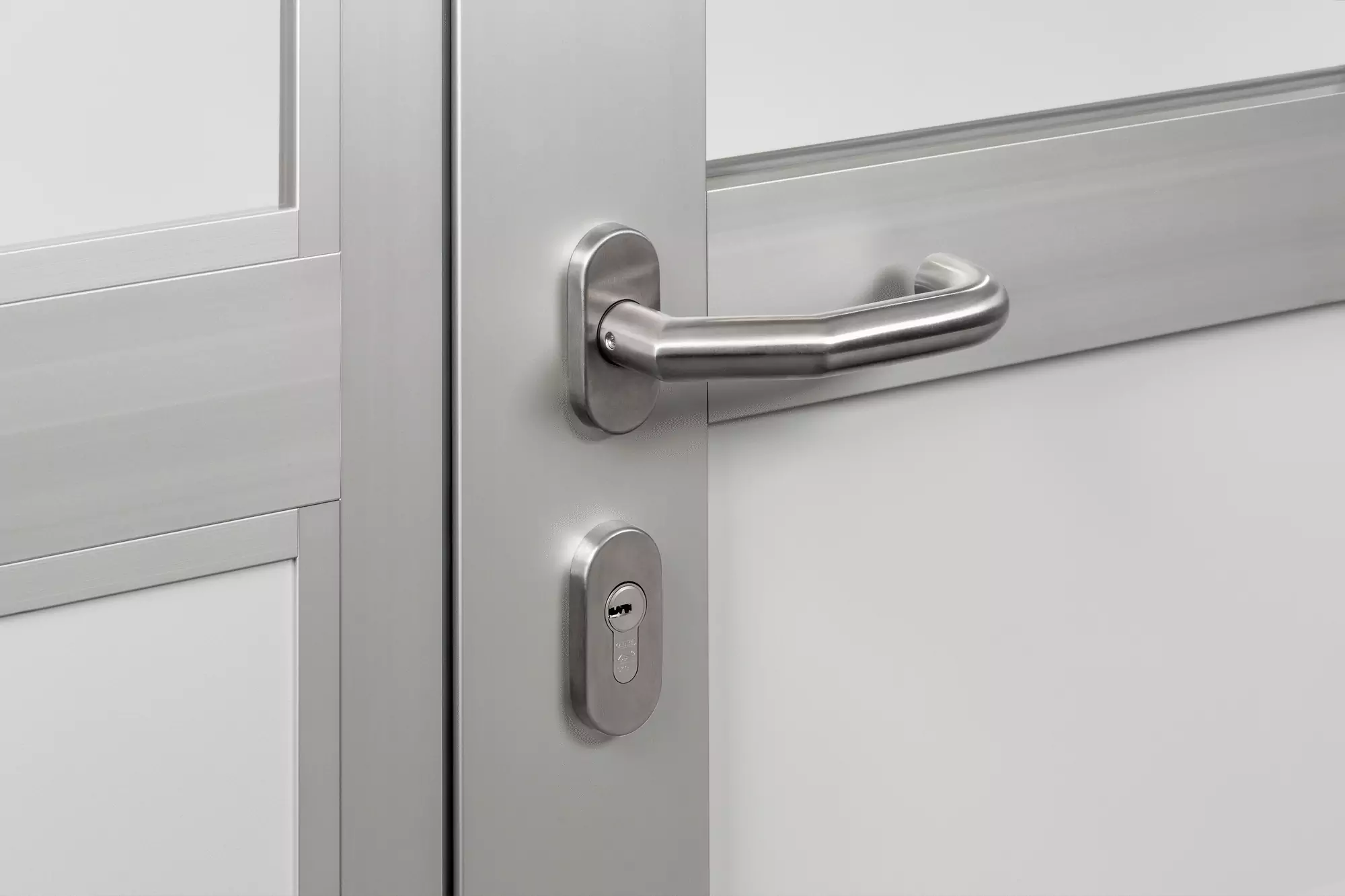

Door Handle Set 9mm is a stainless steel door fitting. It consists of ergonomic grips that allow plenty of clearance from the door and two keyhole escutcheons. The 9 mm square spindle is compatible with Mortise Lock 40/9mm (0.0.711.45).
Through holes must be drilled into the Door Profile for installation purposes. The self-tapping screws included in the scope of supply can then be used to fix in place the Door Handle Set. Please consult the installation guide for precise fastening dimensions.
