| Locking Ring D30 | CADPDFRFQ |
Preview

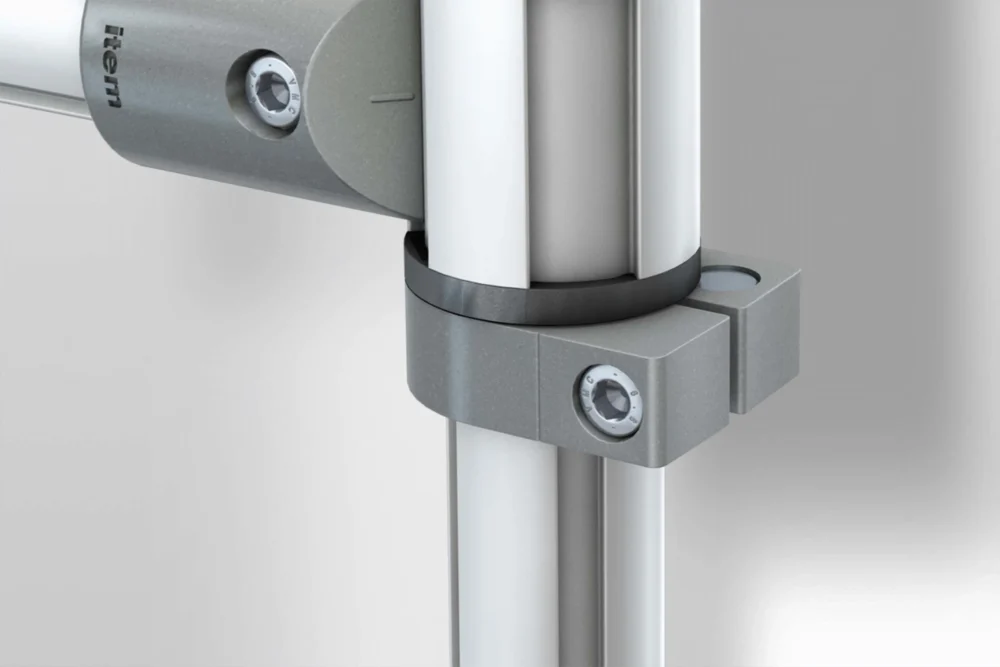

Locking Ring D30
Preassembled Locking Ring D30 profile, Al Threaded cross dowel M6, St, bright zinc-plated Hexagon Socket Head Cap Screw similar to DIN 912 M6x29.4, St, bright zinc-plated
Tuotenro: 0.0.664.50
Osasto: Low-cost automation – the mechanical solution
Avainsana tuotteelle Static
Scope of Delivery
Preassembled Locking Ring D30 profile, Al Threaded cross dowel M6, St, bright zinc-plated Hexagon Socket Head Cap Screw similar to DIN 912 M6x29.4, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 50 g |
| Delivery unit | 1 pce. |
Locking Ring D30 secures the position of the Plain Bearing D40/30 along its axis. This design measure has to be used to secure the position of the bearing because of the minimal friction on the support profile.
