Slide Guide 8/8e F
with through bores 2 T-Slot Nuts 8 St M4, bright zinc-plated 2 Button-Head Screws M4x25, St, bright zinc-plated 2 O-rings 4×1.5
Scope of Delivery
with through bores 2 T-Slot Nuts 8 St M4, bright zinc-plated 2 Button-Head Screws M4x25, St, bright zinc-plated 2 O-rings 4x1.5
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 44 g |
| Delivery unit | 1 set |
| Material | PE-UHMW |

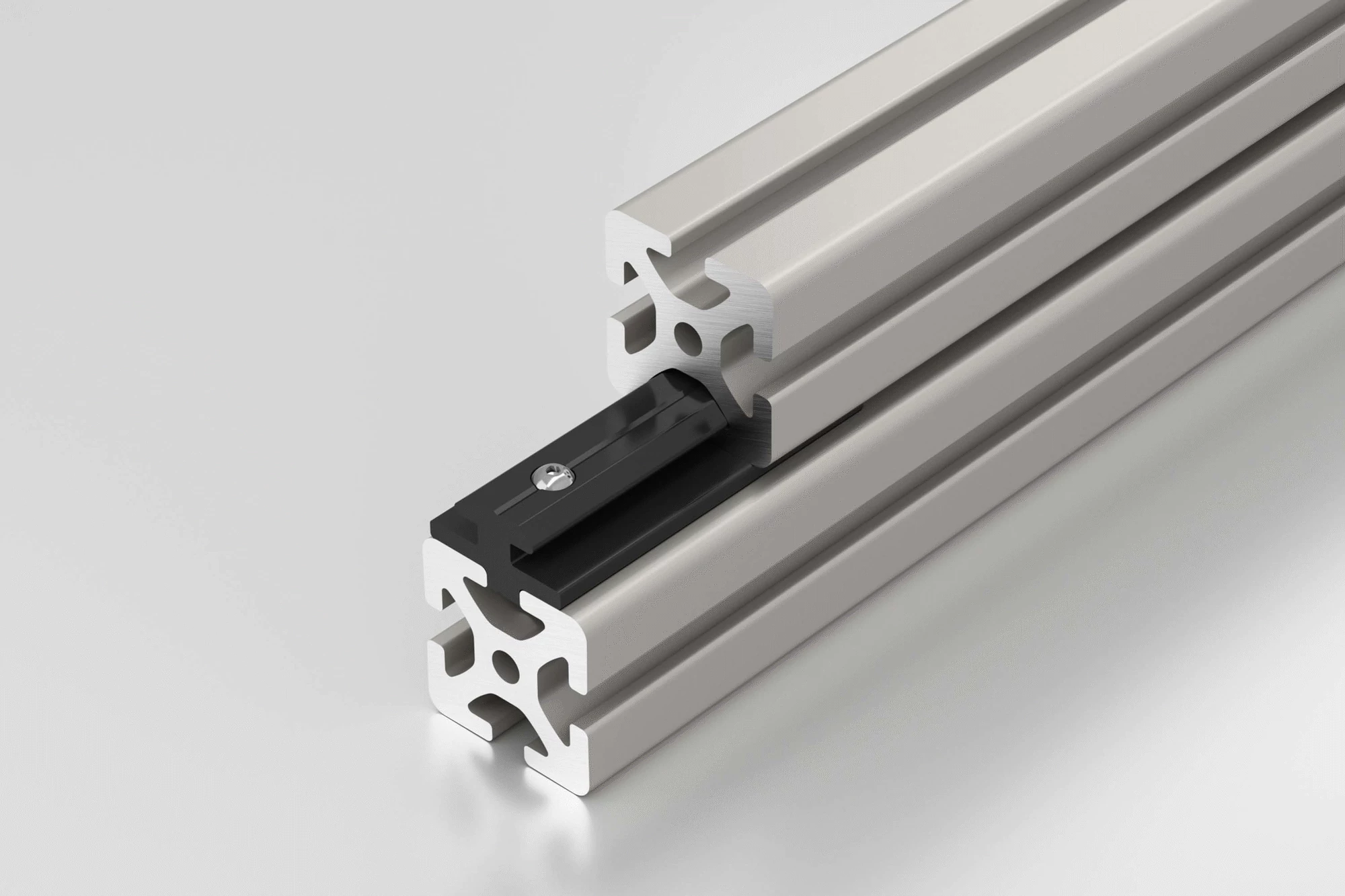

The Slide Guide Strip can be mounted directly in the profile groove to create simple slide mechanisms. It can be screw-connected to the profiles of the surrounding frames or to moving modules. Slide Guides L and F are only suitable for installation on moving profiles. The offset "e" prevents the moving components from colliding with the fixed frame elements.
Slide Guide L (A = floating bearing) and Slide Guide F ( B = fixed bearing) as guide elements, secured to a moving component. e = 2 mm l = 9.5 +0.5 mm
