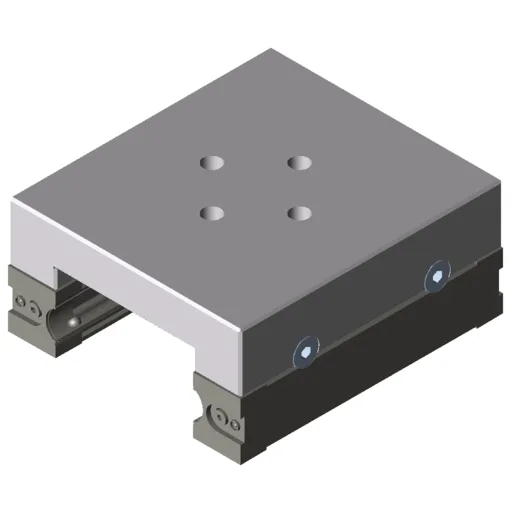

Linear Guide Carriage Unit 8 D14 120×40

2 Linear Guide Units Carriage plate, Al 4 sets crews 8 M5, St, bright zinc-plated 6 Hexagon Socket Head Cap Screws DIN 6912-M5x40, St, bright zinc-plated Notes on Use and Installation

Tuotenro: 0.0.629.19 Osastot: , Avainsana tuotteelle
Set CAD-format
Linear Guide Carriage Unit 8 D14 120×40CADPDFRFQ

Preview

Scope of Delivery

2 Linear Guide Units Carriage plate, Al 4 sets crews 8 M5, St, bright zinc-plated 6 Hexagon Socket Head Cap Screws DIN 6912-M5x40, St, bright zinc-plated Notes on Use and Installation

Properties

line 8line 8
ESD-safeNo
Weightm = 1.31 kg
Delivery unit1 set
Looking for a linear slide that is more rigid and compact than roller guides but just as modular and easy to fit to standard profiles? The linear guide units from item are exactly what you need! Complete carriages for profile widths of 40 and 80 mm that are mounted on shafts in Shaft-Clamp Profiles. Other benefits of these guide elements include ease of assembly, lower moving mass and simple adjustability. Guiding shafts D14 can be fitted to Profiles 8 (not the light or E variants) in widths of 40 or 80 mm. Maximum guide length: 6,000 mm. The guide is particularly suitable for tensile and compressive loads on the carriage plate .
Universal connection bores in the carriage plate: M8 threaded holes for fastening profiles or any other structures.
The driving force: A Timing Belt or spindle drive KGT can be connected to a Profile 8 that is screwed to the carriage plate.
MB Building Kit System
