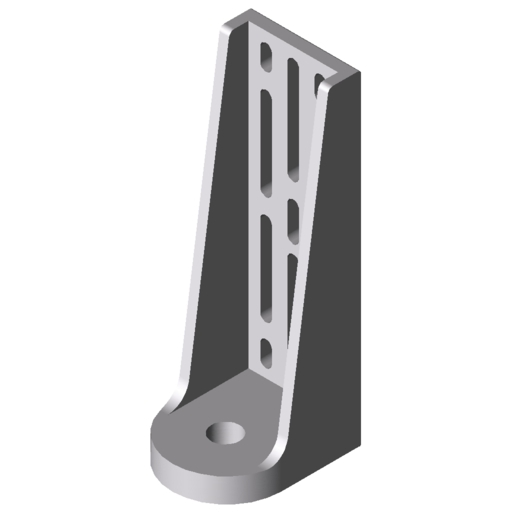

L-Based Foot 8-12 240×100, white aluminium, similar to RAL 9006

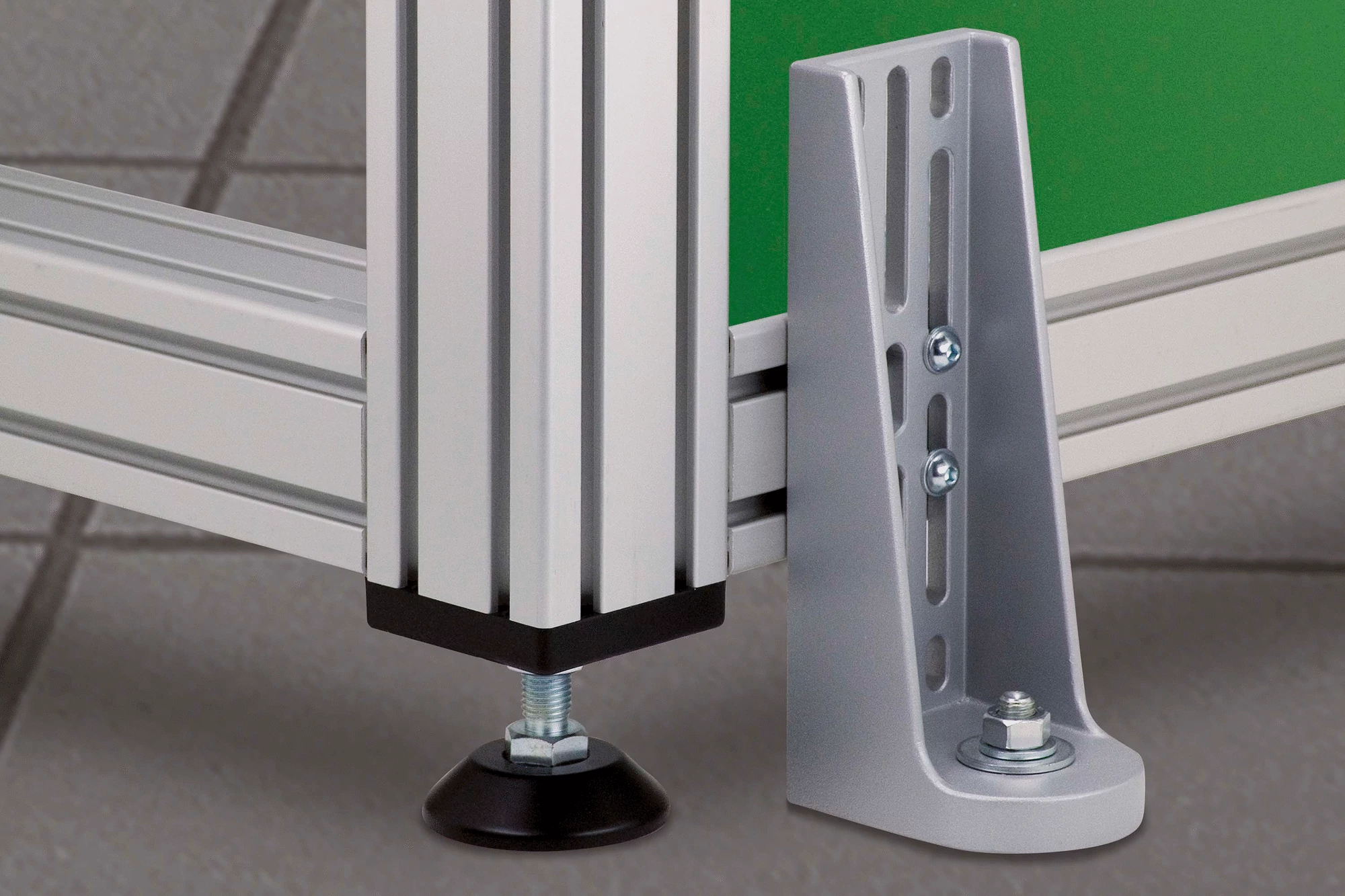

This stable L-Based Foot made of die-cast aluminium is also used to secure frame constructions to the floor. Its optimised form provides secure support against bending loads. To secure a machine that has already been installed, L-Based Foot 8-12 240x100 is screwed to any point of the horizontal or vertical profile grooves using the slots provided.

The slotted holes for fastening to the side face of a profile are compatible with the modular dimensions of Lines 8, 10 and 12. The number of fastening screws can be increased to raise the stability. In this way, L-Based Foot 8-12 240x100 also stabilises machine frames against movement and vibration.

In the case of Line 8 profiles, the distance to the floor when using the lower groove for attaching the L-Based Foot is a = 9.5 mm. In the case of Line 10 profiles a = 4.5 mm. Line 12 profiles can be screwed to the L-Based Foot so that they are flush to the floor. M max. = 150 Nm F max. = 4,000 N
