| Angle Hinge Bracket 8 | CADPDFRFQ |
Preview

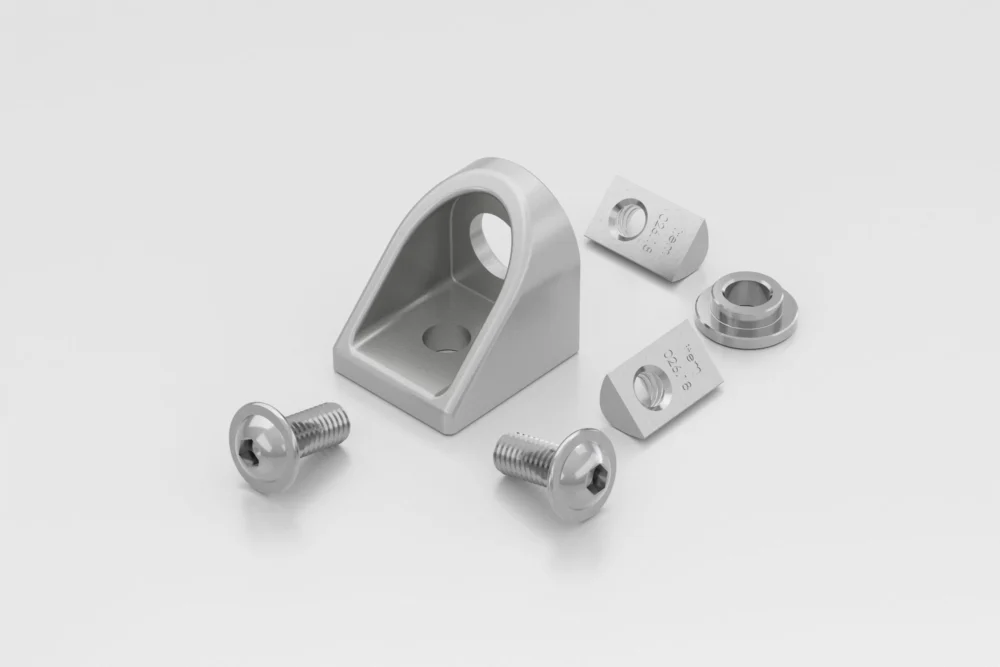

Angle Hinge Bracket 8
Die-cast Al, RAL9006 white aluminium bearing bush, St, bright zinc-plated 2 T-Slot Nuts 8 St M8, bright zinc-plated 2 dome-head screws M8x18, St, bright zinc-plated a = 20 mm
Scope of Delivery
Die-cast Al, RAL9006 white aluminium bearing bush, St, bright zinc-plated 2 T-Slot Nuts 8 St M8, bright zinc-plated 2 dome-head screws M8x18, St, bright zinc-plated a = 20 mm
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 85 g |
| Delivery unit | 1 set |

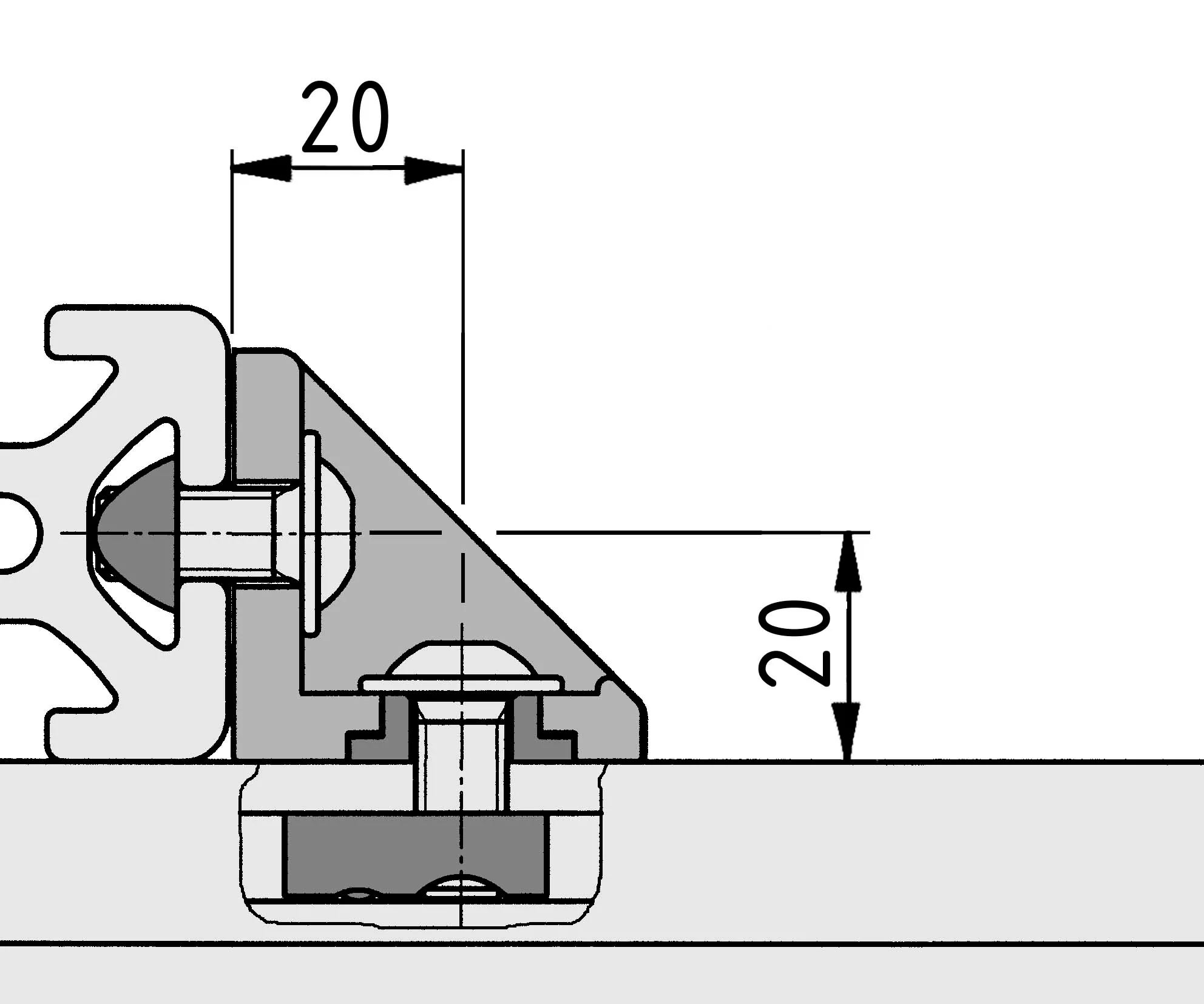

The Angle Hinge Bracket serves as a fixed point of rotation for profiles crossing each other. When the screws are tight, the rotational position around the bearing bush can still be selected at will.
The Angle Hinge Bracket serves as a fixed point of rotation for profiles crossing each other. When the screws are tight, the rotational position around the bearing bush can still be selected at will.
