Conveyor Roller TR32, Bearing Set

2 bearing flanges, PA-GF, black ball-bearing support, sealed

Tuotenro: 0.0.472.08 Osasto: Avainsana tuotteelle
Set CAD-format
Conveyor Roller TR32, Bearing SetCADPDFRFQ

Preview

Scope of Delivery

2 bearing flanges, PA-GF, black ball-bearing support, sealed

Properties

line 8line 8
ESD-safeNo
Weightm = 16 g
Force maxFmax. = 100 N
Delivery unit1 set

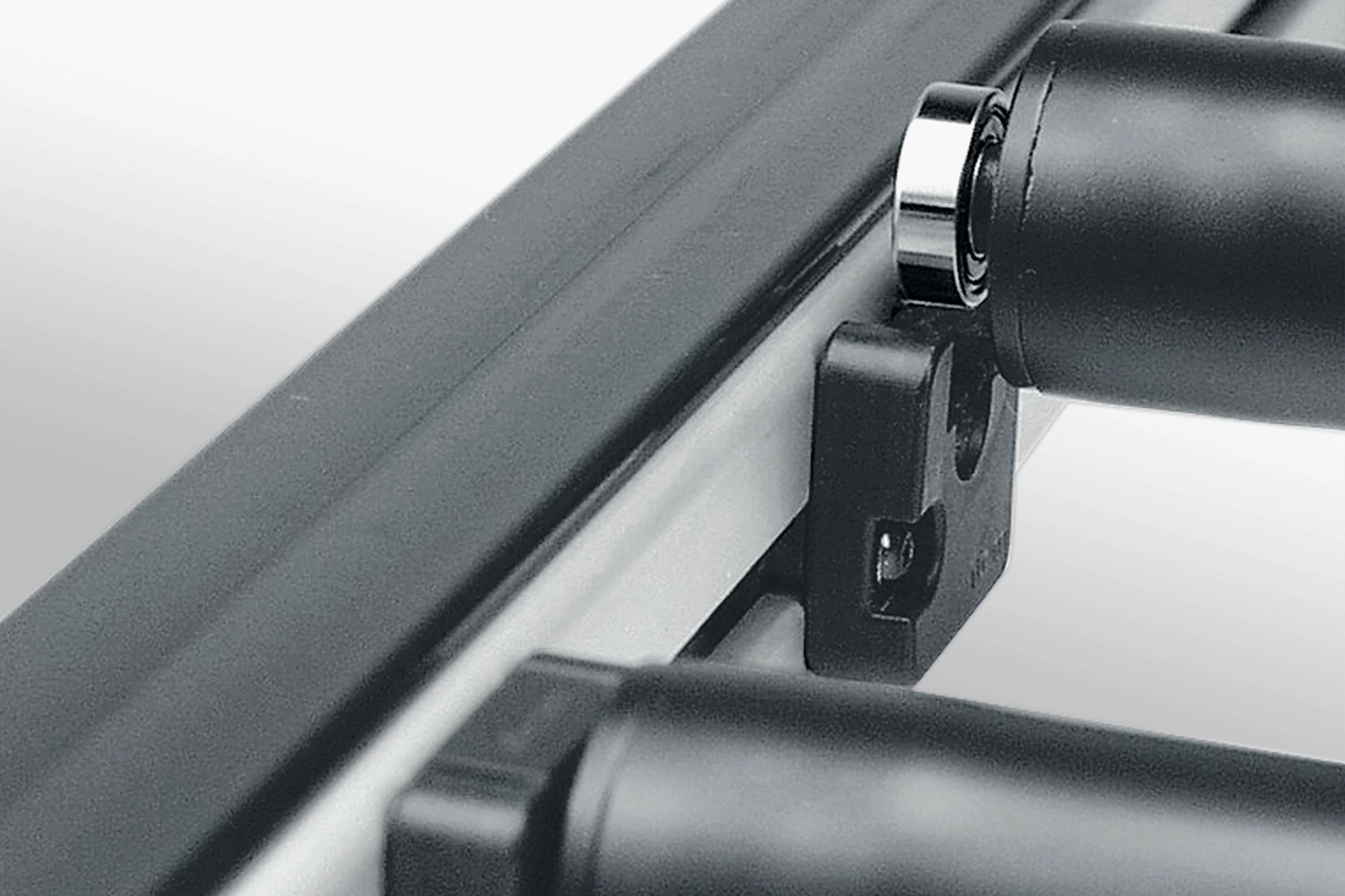

Multifunctional Conveyor Roller ideal for interlinking manual working stations where slim diameter rollers are an advantage. The ball bearing Conveyor Rollers TR32 are simply pushed on and engage in the Bearing Blocks which are screw fitted in the groove of Profiles 8. The distance between the rollers can be selected as a function of the load. A Conveyor Roller TR32 of any required length can be customized using a Bearing Set and a Tube D32. (Please note load specifications in the table below).

The minimum distance between two side-by-side Conveyor Roller TR32, Bearing Block Sets 8 is ≥6mm.
