| Contact Pin 8 ESD, bright zinc-plated | CADPDFRFQ |

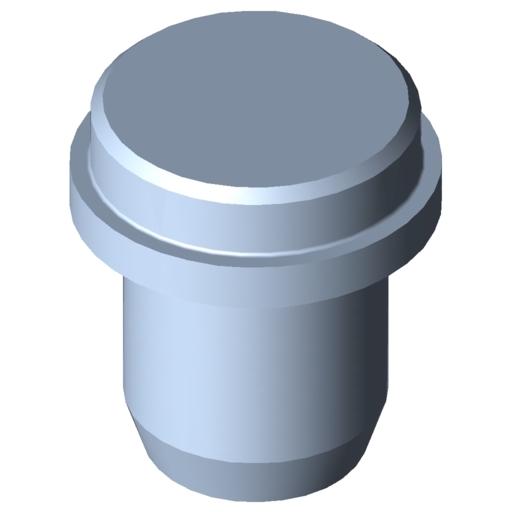

Preview
Contact Pin 8 ESD, bright zinc-plated
Properties
| line 8 | line 8 |
|---|---|
| Property | bright zinc-plated |
| ESD-safe | Yes |
| Weight | m = 3 g |
| Delivery unit | 1 pce. |
| Material | St |
Contact Pin 8 ESD is an additional component used in conjunction with Universal-Fastening and Automatic-Fastening Sets 8. Pressed into the core bore of the Profile Bar, the Contact Pin makes the electrical connection between the profiles when the fastening screws are tightened. Note: Use of Contact Pin 8 ESD can lead to restrictions when retrofitting profiles into closed structures.
Contact Pin 8 ESD destroys the insulating anodized layer in the core bore and profile groove of the connected profiles.
