| Clamp-Profile Cross Connector 6 30×30, white aluminium, similar to RAL 9006 | CADPDFRFQ |
Preview
Clamp-Profile Cross Connector 6 30×30, white aluminium, similar to RAL 9006
a = 12 -1 mm
Properties
| line 6 | line 6 |
|---|---|
| ESD-safe | No |
| Weight | m = 49 g |
| Delivery unit | 1 pce. |
| Material | Die-cast zinc |
| Colour | white aluminium, similar to RAL 9006 |

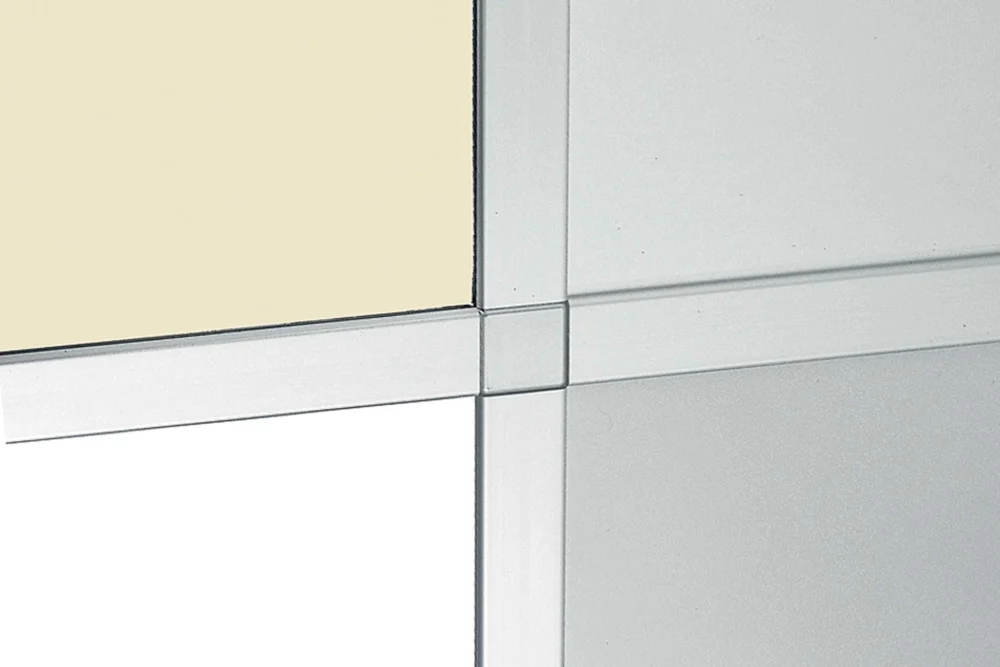

The Clamp-Profile Cross Connector is designed for connecting Clamp Profiles / Clamp Profiles E of Lines 6 and 8. It can be used for the construction of framed panel elements for enclosures and guards which feature inside corners, cut-outs or internal apertures. In addition, up to 4 Clamp Profiles can be secured at a single intersection point.
The Clamp-Profile Cross Connector is designed for connecting Clamp Profiles / Clamp Profiles E of Lines 6 and 8. It can be used for the construction of framed panel elements for enclosures and guards which feature inside corners, cut-outs or internal apertures. In addition, up to 4 Clamp Profiles can be secured at a single intersection point.
When planning panel element cut-outs, the penetration depth (a) specified here must be taken into account irrespective of the penetration depth specified for the Clamp Profiles.
Installation note: The following screws are required for securing the Clamp-Profile Cross Connectors to the Clamp Profiles: - Clamp Profile 6 30x30: Screw ISO 7380 M6x14 - Clamp Profile 8 40x40: Screw ISO 7380 M8x20
