| Threaded Insert, Profile Tube D40 M8 Al, natural | CADPDFRFQ |
Preview

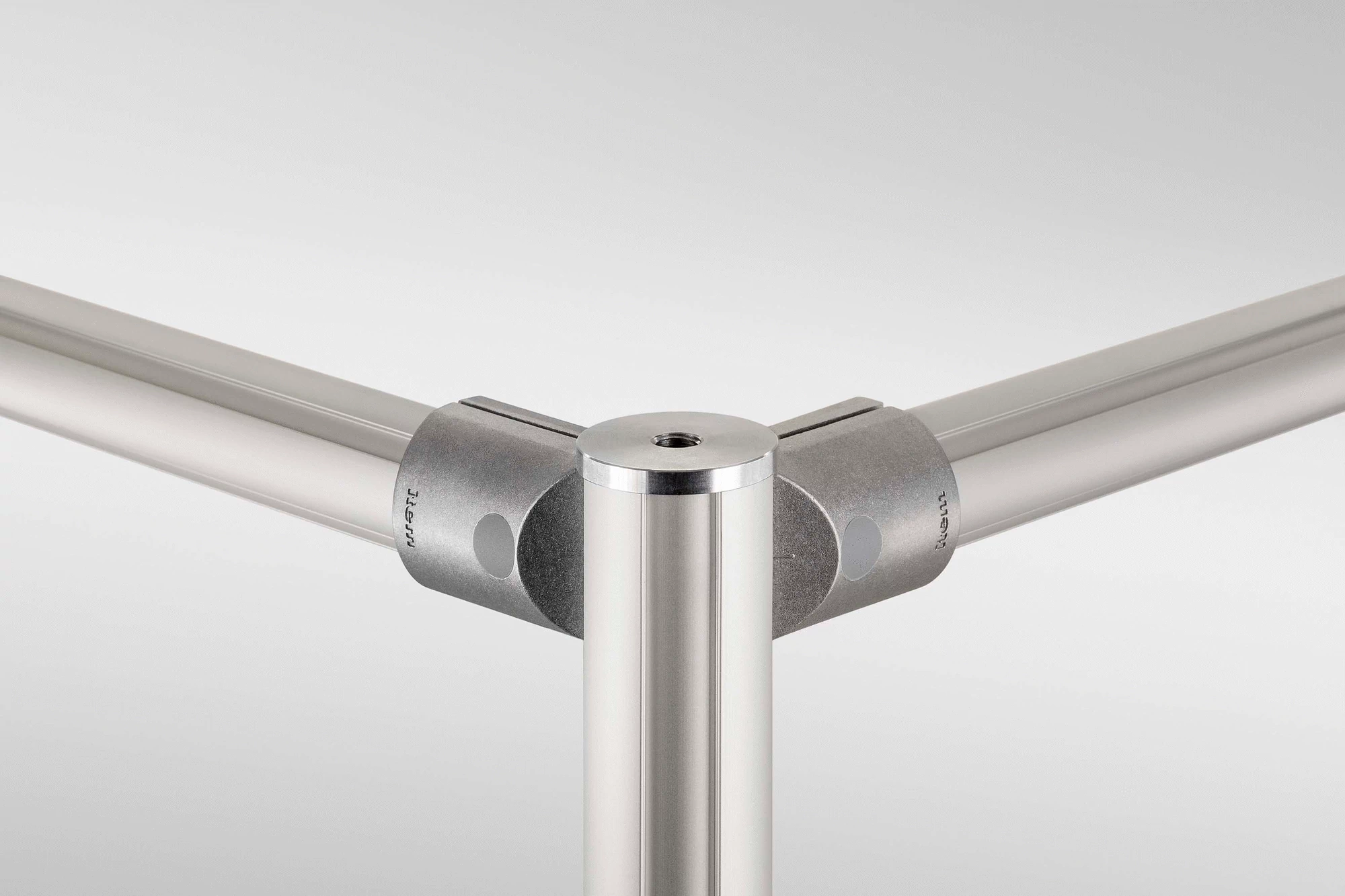

Threaded Insert, Profile Tube D40 M8 Al, natural
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 73 g |
| Delivery unit | 1 pce. |
| Material | Al |
| Colour | natural |

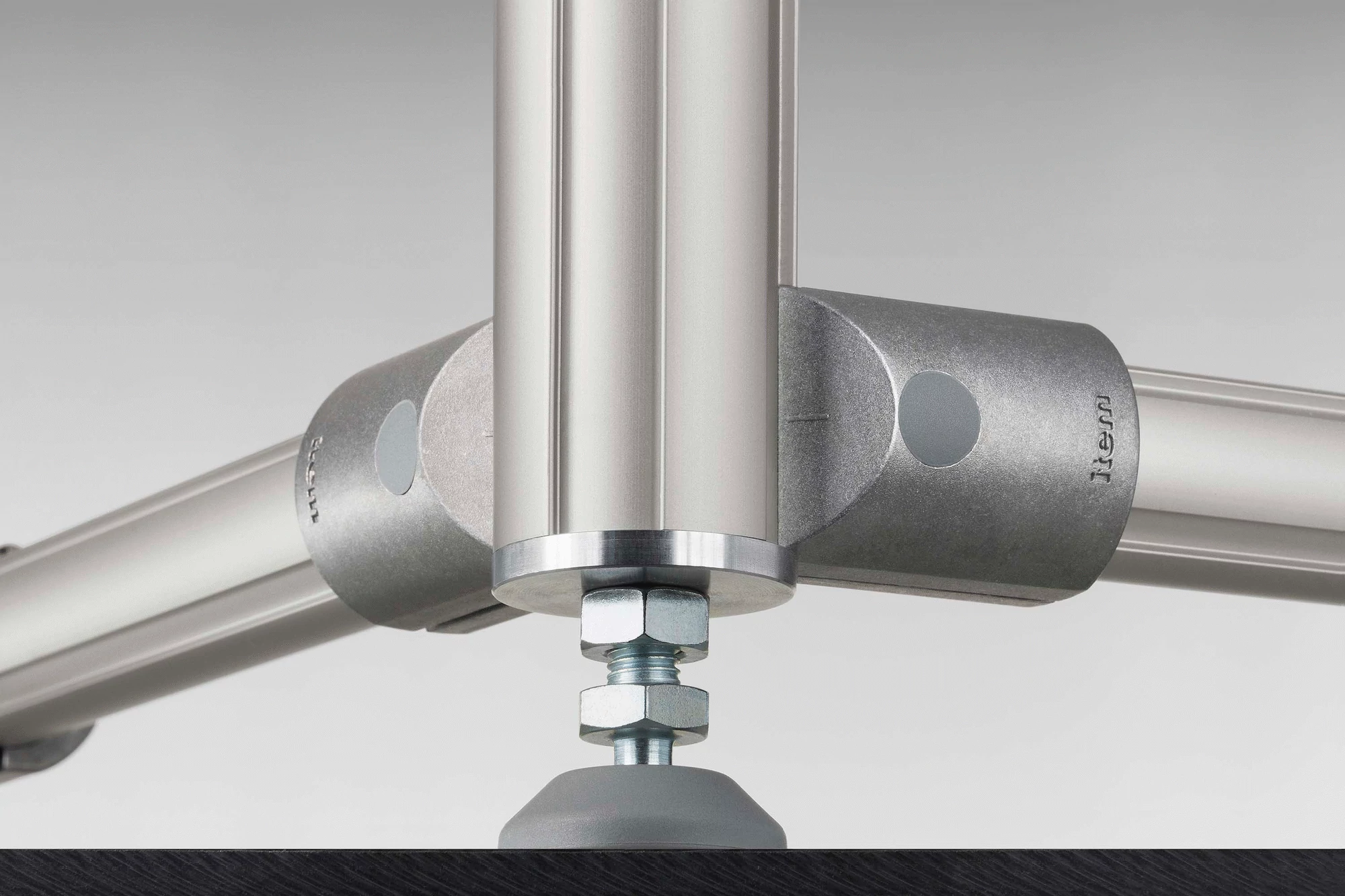

More holding force for the end faces of Profile Tubes! Threaded Inserts, Profile Tube D30 Al and Threaded Inserts, Profile Tube D40 Al are made of aluminium and are ESD-safe as standard. They assume an especially strong connection with the Profile Tubes. The threads can be used to fit Adjustable Feet, Castors and other accessories. Custom threads can be tapped into them for special dimensions larger than M10.
Threaded Inserts, Profile Tube D40 Al can be used to attach accessories to moving LCA/Karakuri/LCA components.
F max = 2000 N
