Threaded Insert, Profile Tube D30 heavy duty M8

Tuotenro: 0.0.672.18 Osasto: Avainsana tuotteelle
Set CAD-format
Threaded Insert, Profile Tube D30 heavy duty M8CADPDFRFQ

Preview

Properties

LineLine D30
ESD-safeYes
Weightm = 18.6 g
Delivery unit1 pce.
MaterialSt, bright zinc-plated

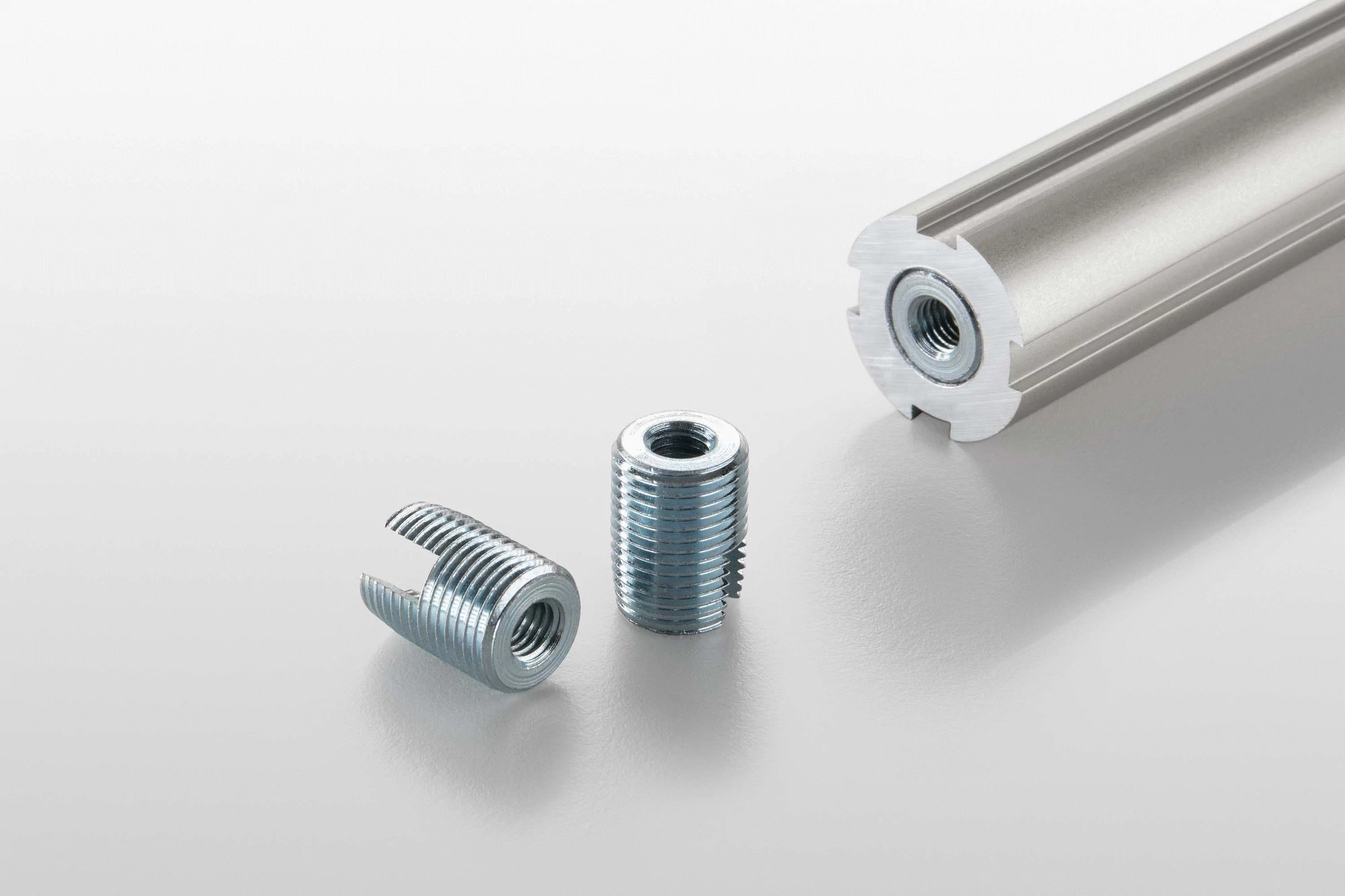

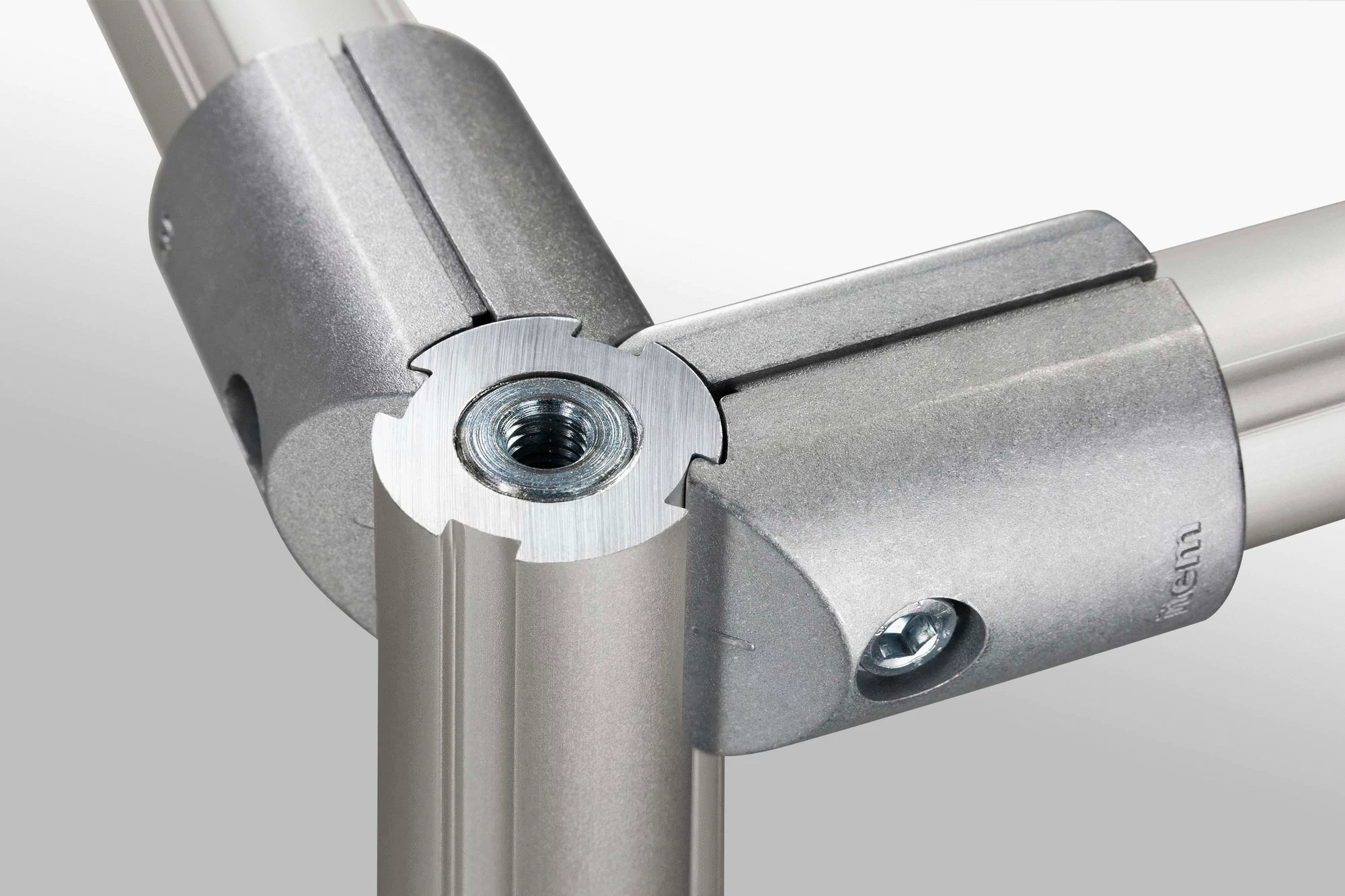

The combination for a particularly strong hold: These Threaded Inserts accommodate extremely high compressive and tensile loading in the reinforced Profile Tubes D30 heavy duty. The self-tapping inserts make it possible to screw all kinds of attachments to the end face of a Profile Tube D30 heavy duty or Profile Tube D30-45° heavy duty. They are available for M6, M8, M10 and M12 threads and are typically used to attach adjustable feet and castors.
