Hand-Rail Joint

2 joint elements D40, die-cast Al, white aluminium similar to RAL 9006 Joint element spacer, St, white aluminium similar to RAL 9006 2 Countersunk Screws DIN 7991-M8x14, St, bright zinc-plated 2 Countersunk Screws DIN 7991-M8x25, St, bright zinc-plated

Tuotenro: 0.0.620.23 Osasto: Avainsana tuotteelle
Set CAD-format
Hand-Rail JointCADPDFRFQ

Preview

Scope of Delivery

2 joint elements D40, die-cast Al, white aluminium similar to RAL 9006 Joint element spacer, St, white aluminium similar to RAL 9006 2 Countersunk Screws DIN 7991-M8x14, St, bright zinc-plated 2 Countersunk Screws DIN 7991-M8x25, St, bright zinc-plated

Properties

line 8line 8
ESD-safeNo
Weightm = 197 g
Delivery unit1 pce.

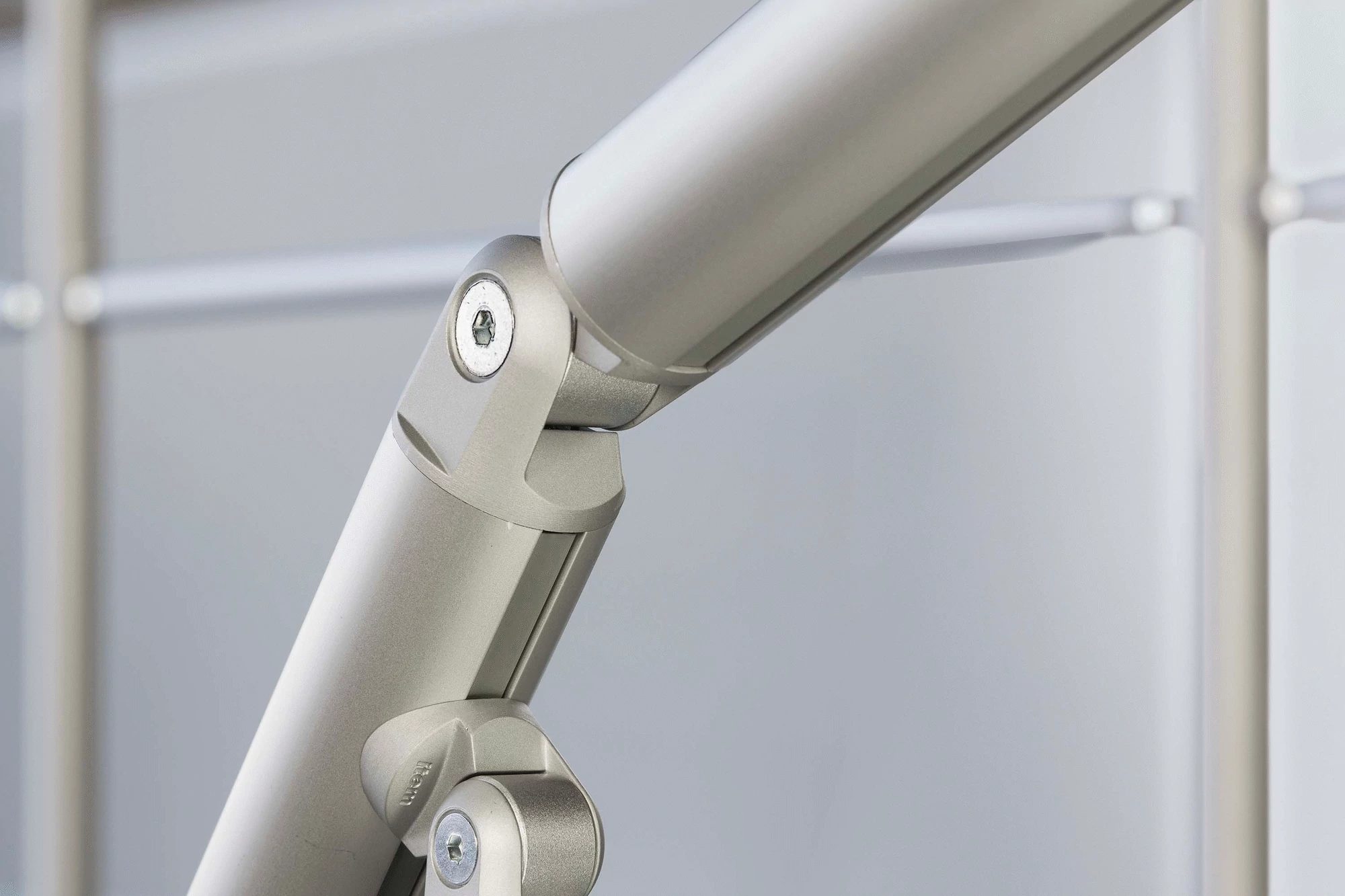

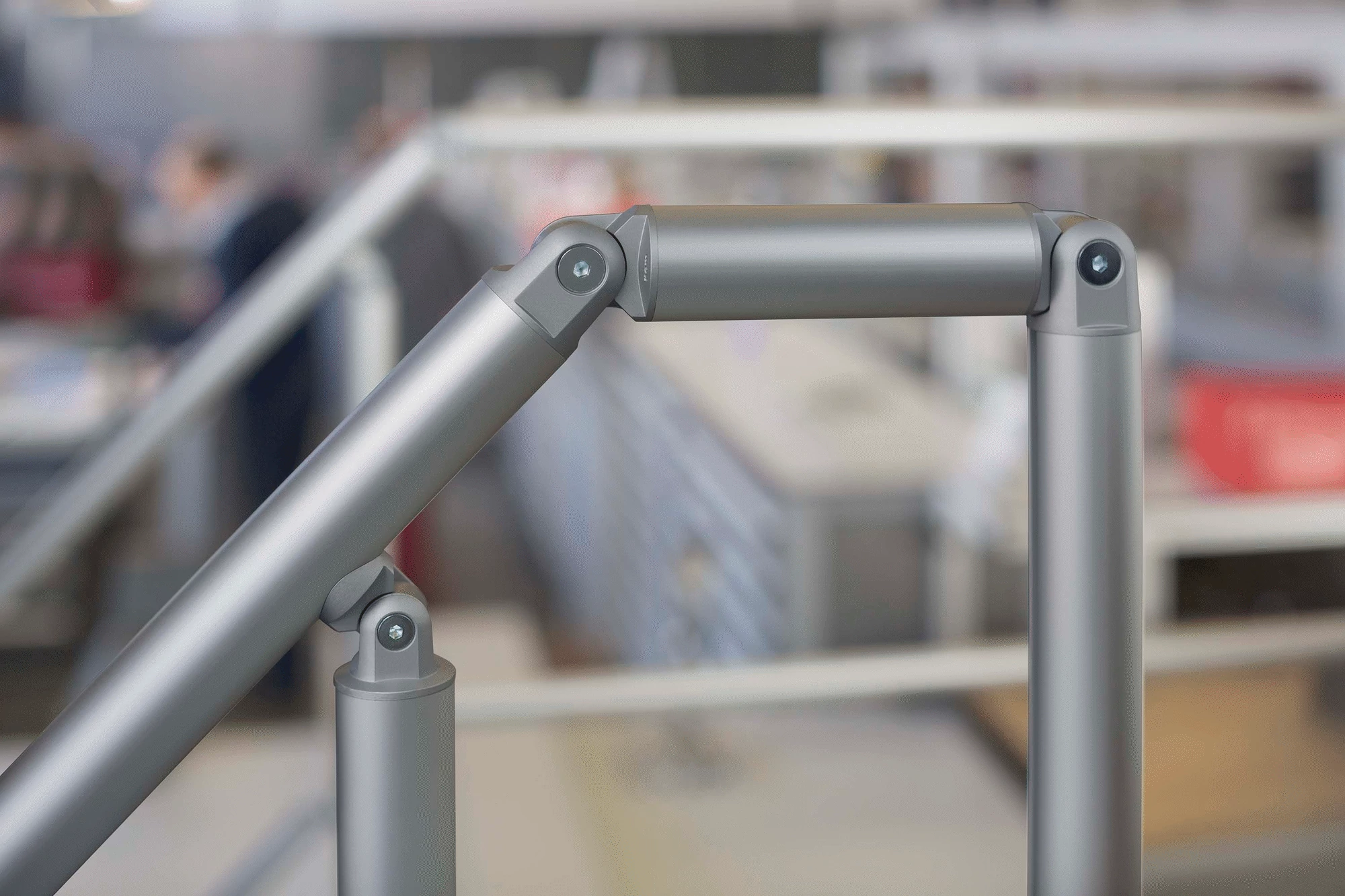

Hand-Rail Joint The Hand-Rail Joint connects together two sections of hand-rail. It can be used at the point where a stairway meets a platform or at the corner of a hand-rail. The Hand-Rail Joint eliminates gaps in hand-rails, which boosts stability and gives users an added sense of safety. The Joint is screwed to the end faces of two Profiles 8 D40 3NO (0.0.493.46). The necessary fastening elements are included in the scope of supply.
