Cover Profile 76 Al, natural
Configurated product data
Nothing generated yet
You must configurate your product below before requesting quoteProperties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 405 g/m |
| Delivery unit | cut-off max. 2000 mm |
| Material | Al, anodized |
| Colour | natural |

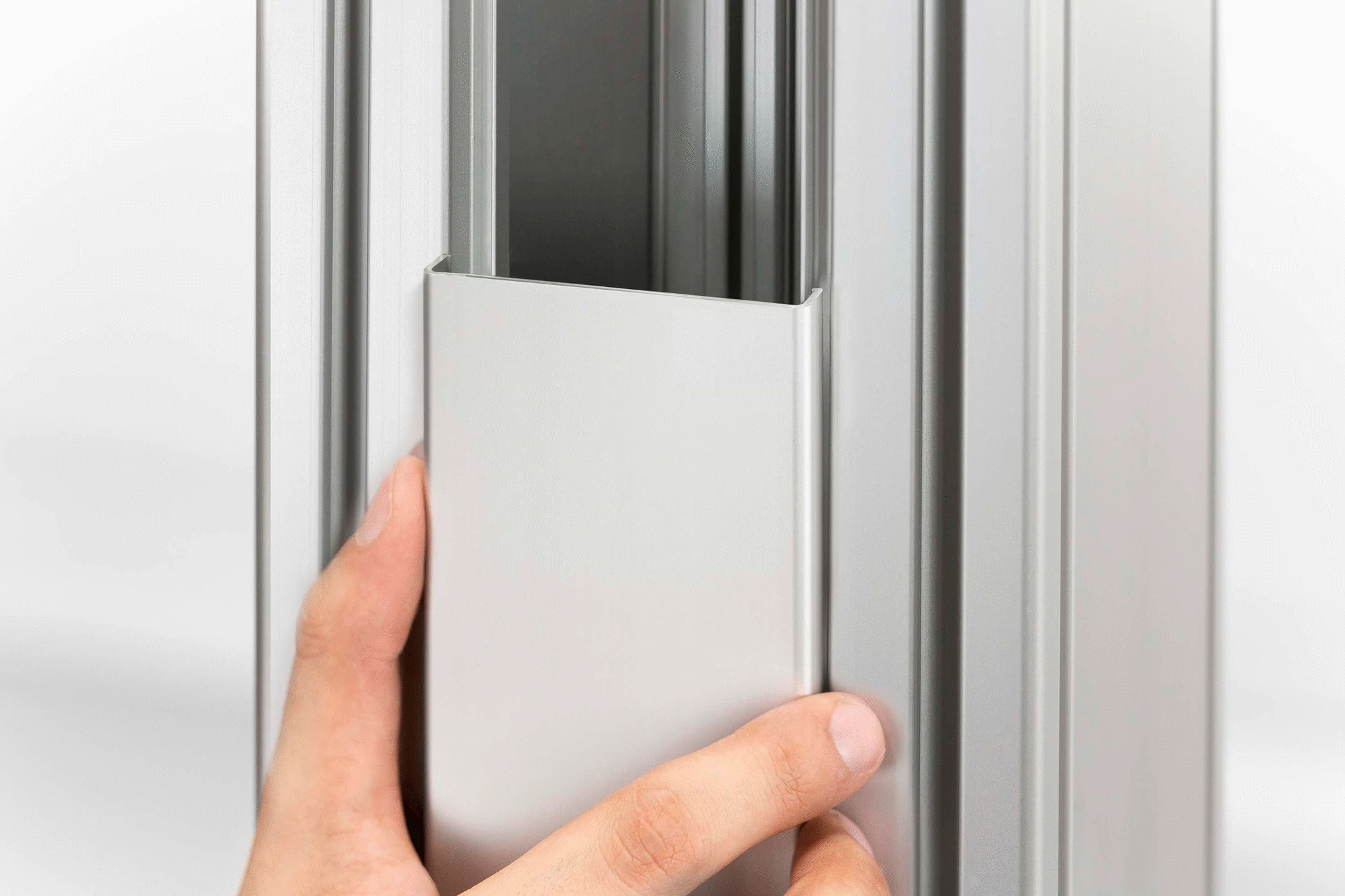

The aluminium profile seals over the cable conduit in the installation profiles. It is held securely in dedicated grooves by Locking Clips and does not require any screw fixings. The conduit can be reopened just as easily to permit maintenance work. Cover Profile 76 Al can be cut to length easily to make space for sockets and connections. Note: Locking Clips (0.0.663.42) are used to secure the Cover Profile in place and create an electrical contact with the lower part of the column. Each segment of the Cover Profile must be secured with at least four Locking Clips. We recommend using six Locking Clips to secure profile lengths measuring from 1000 mm to 2000 mm and at least eight for lengths of over 2000 mm. The Locking Clips ensure that the Cover Profile is earthed.
