| Double Pivot Bearing Unit D30-28.5 M8 | CADPDFRFQ |
Preview
Double Pivot Bearing Unit D30-28.5 M8
Preassembled Bearing shaft, St, bright zinc-plated Bearing sleeve, Al, untreated 2 deep groove ball bearings, St, bright zinc-plated Dome-head screw M8x35, St, bright zinc-plated O-ring DIN ISO 3601 7×2, NBR
Tuotenro: 0.0.681.92
Osastot: Material flow, Low-cost automation – the mechanical solution
Avainsana tuotteelle Static
Scope of Delivery
Preassembled Bearing shaft, St, bright zinc-plated Bearing sleeve, Al, untreated 2 deep groove ball bearings, St, bright zinc-plated Dome-head screw M8x35, St, bright zinc-plated O-ring DIN ISO 3601 7x2, NBR
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 97 g |
| Delivery unit | 1 pce. |

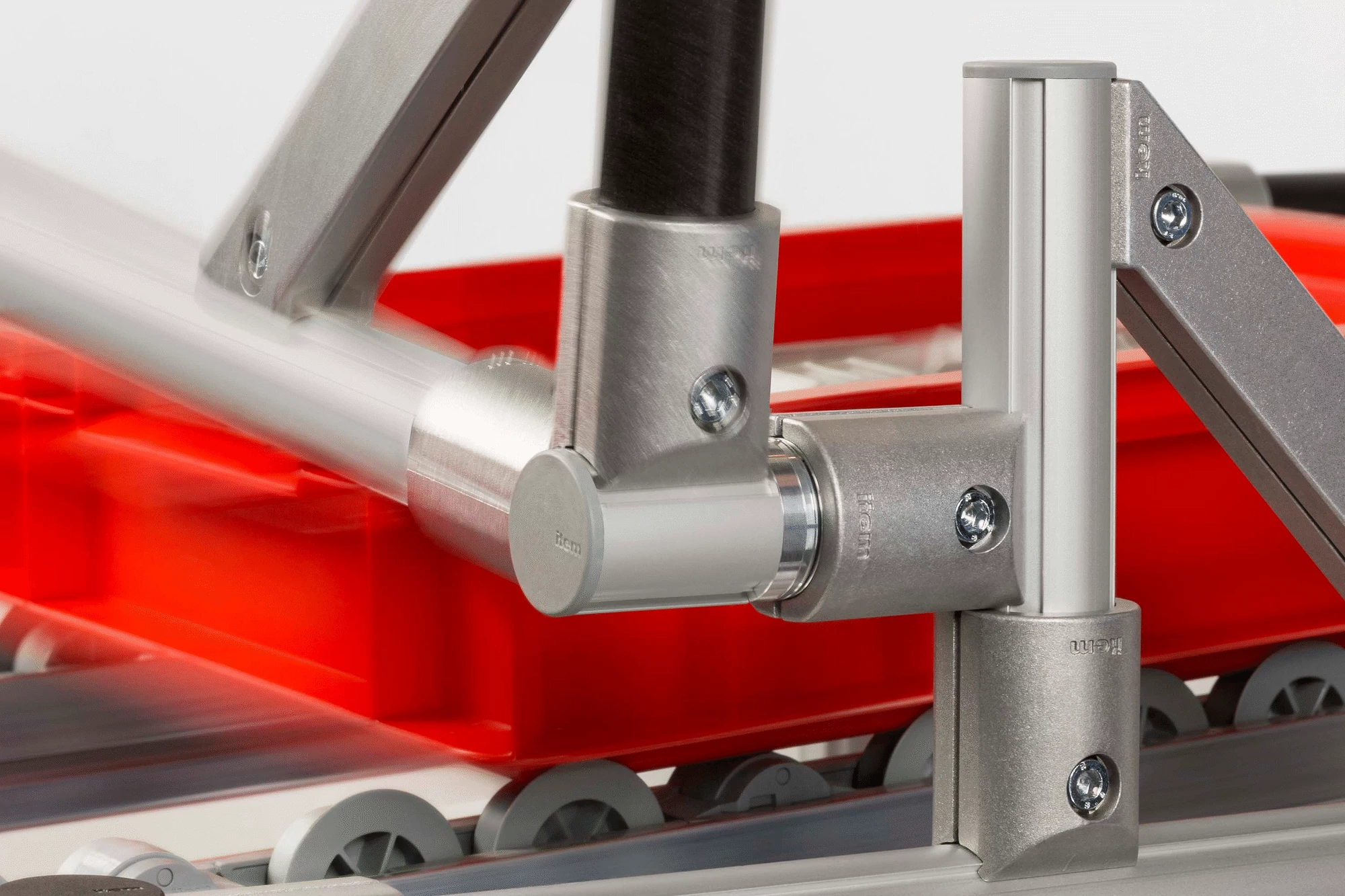

Wenn nur eine Lagerstelle benötigt wird oder wenn sehr hohe Belastungen auftreten, empfiehlt sich die Doppel-Drehlagereinheit D30-28,5 M8. Sie besitzt zwei Kugellager. Damit können größere Kräfte bei Drehbewegungen verarbeitet werden. Als Festlager bietet die Doppel-Drehlagereinheit D30 kein Spiel bei axialer Belastung.
Use the relevant M8 Threaded Insert to create a fixing with the end-face of a D30 profile.
Double Pivot Bearing Unit D30-28.5 M8 can be fitted to just one end of a profile, via the end face. The required profile length L 2 is determined by the combination of Threaded Insert and profile. In addition to the maximum load-carrying capacity of the Double Pivot Bearing Unit, it is important to also take into account the load limits of the adjacent components. F x = 200 N F z = 750 N M y = 15 Nm M z = 15 Nm
