| Pivot Arm 8 80 370 heavy-duty | CADPDFRFQ |
Preview
Pivot Arm 8 80 370 heavy-duty
Profile 8 80×40 4N 180 E End Swivel Joint 80 Double Swivel Joint 80 Connecting cover, PA, grey 3 Connecting Plates, Al, natural 3 Button-Head Screws M8x22, St, bright zinc-plated 3 T-Slot Nuts 8 St M8, bright zinc-plated Notes on Use and Installation F max. = 400 N
Scope of Delivery
1 Profile 8 80x40 4N 180 E 1 End Swivel Joint 80 1 Double Swivel Joint 80 1 Connecting cover, PA, grey 3 Connecting Plates, Al, natural 3 Button-Head Screws M8x22, St, bright zinc-plated 3 T-Slot Nuts 8 St M8, bright zinc-plated Notes on Use and Installation
Properties
| Line | Work Bench System |
|---|---|
| line 8 | line 8 |
| ESD-safe | Yes |
| Weight | m = 2.2 kg |
| Force max | Fmax. = 400 N |
| Delivery unit | 1 set |

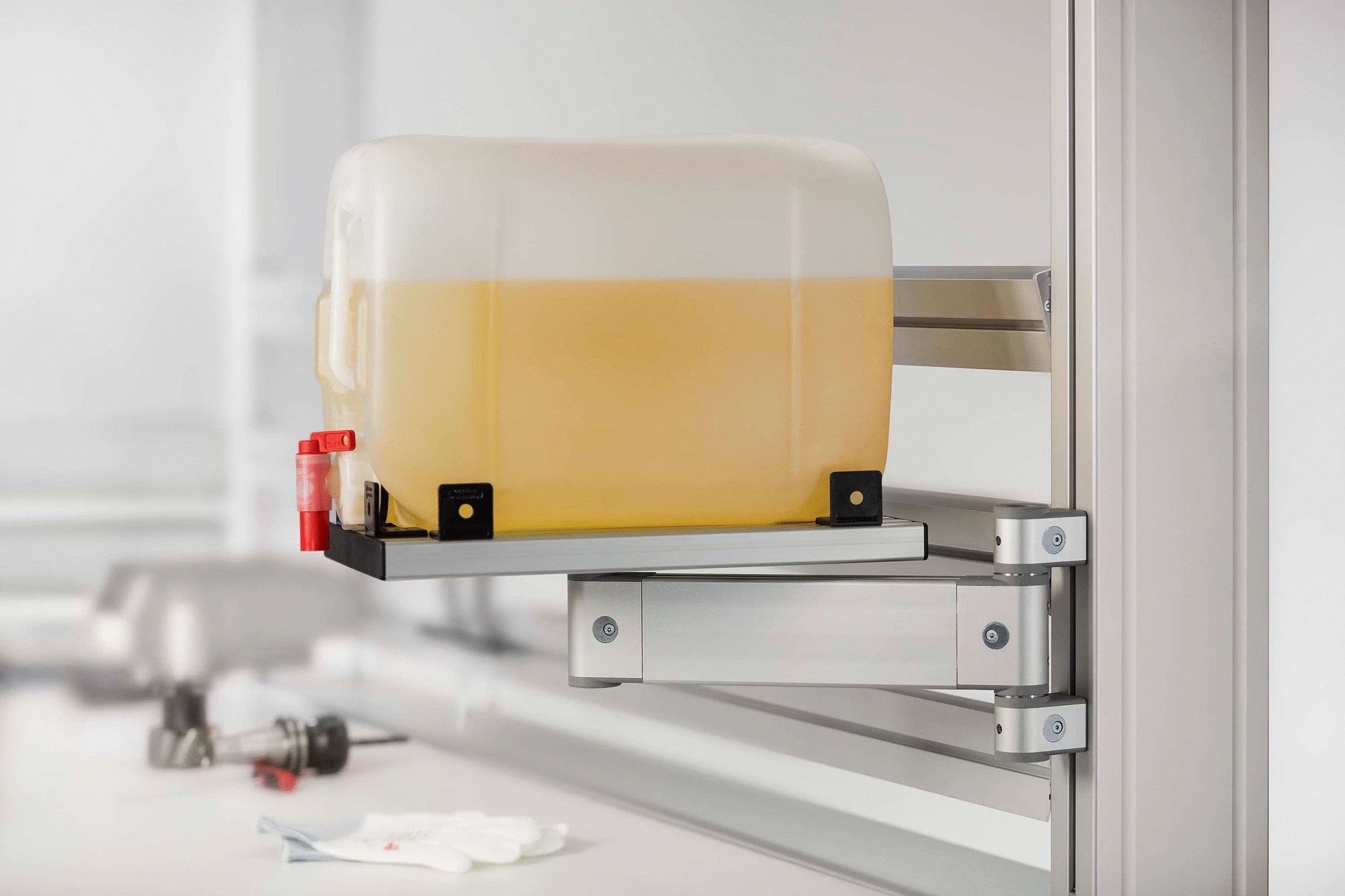

What might be a tough challenge for others is no problem for this solution – Pivot Arm 8 80 370 heavy-duty can be used to safely reposition loads of up to 400 N over the table top of a work bench. The strongest Pivot Arm available from item can be positioned and moved with exceptional precision. Its adjustable frictional moment is consistent regardless of the direction of rotation. The grooves of the profile offer a whole range of fastening options for attachments and cable holders.
The connection can be made with either a horizontal or vertical profile groove. It can also be connected to the end face of a profile. All the joints can be rotated 360° and allow the adjustment of frictional moment.
