| Hinge 8/8 40 Zn ESD, matt chrome-plated | CADPDFRFQ |
Esikatselu

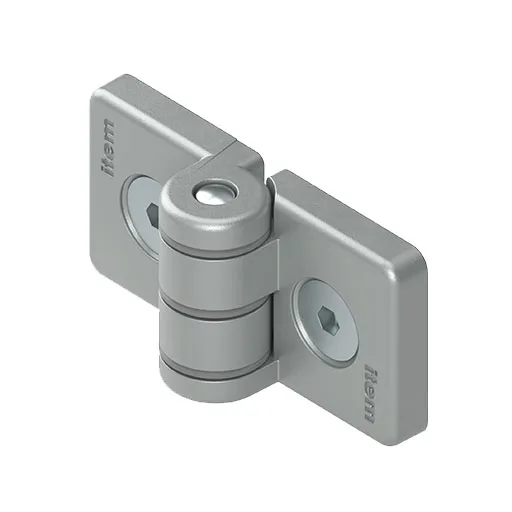

Hinge 8/8 40 Zn ESD, matt chrome-plated
2 hinge halves 8 40 Zn, die-cast Al, chrome-plated 3 Hinge 8 40 Zn washers, PA6, grey 1 Hinge 8 40 Zn pin, St 2 Countersunk Screws DIN 7991 M8x18, bright zinc-plated 2 T-Slot Nuts V 8 St M8
Scope of Delivery
2 hinge halves 8 40 Zn, die-cast Al, chrome-plated 3 Hinge 8 40 Zn washers, PA6, grey 1 Hinge 8 40 Zn pin, St 2 Countersunk Screws DIN 7991 M8x18, bright zinc-plated 2 T-Slot Nuts V 8 St M8, bright zinc-plated
Properties
| Vääntömomentti | M = 20 Nm |
|---|---|
| rivi 8 | rivi 8 |
| Kiinteistö | matt chrome-plated |
| ESD-safe | Kyllä |
| Paino | m = 233 g |
| Delivery unit | 1 set |
| cleanroom suitability | Ei |
| Presentation | 2026-03-24T00:00:00 |
Hinges 8/8 40 Zn ESD from item are joints that allow rotation and connect together doors and surrounding frames made of Line 8 profiles. They can be fitted so that doors and hatches can be opened from the right or left side, they incorporate anti-torsion features and are ESD safe. These robust hinges are quick to fit and cover a wide range of applications. They are equally suitable for machine doors as they are for fitting to simple hatches. They can be fastened to a groove or – after removing the anti-torsion features – directly to a panel element.
The anti-torsion features can be removed with a screwdriver. This means the product can be screwed to panel elements and other components that do not have a profile groove.
