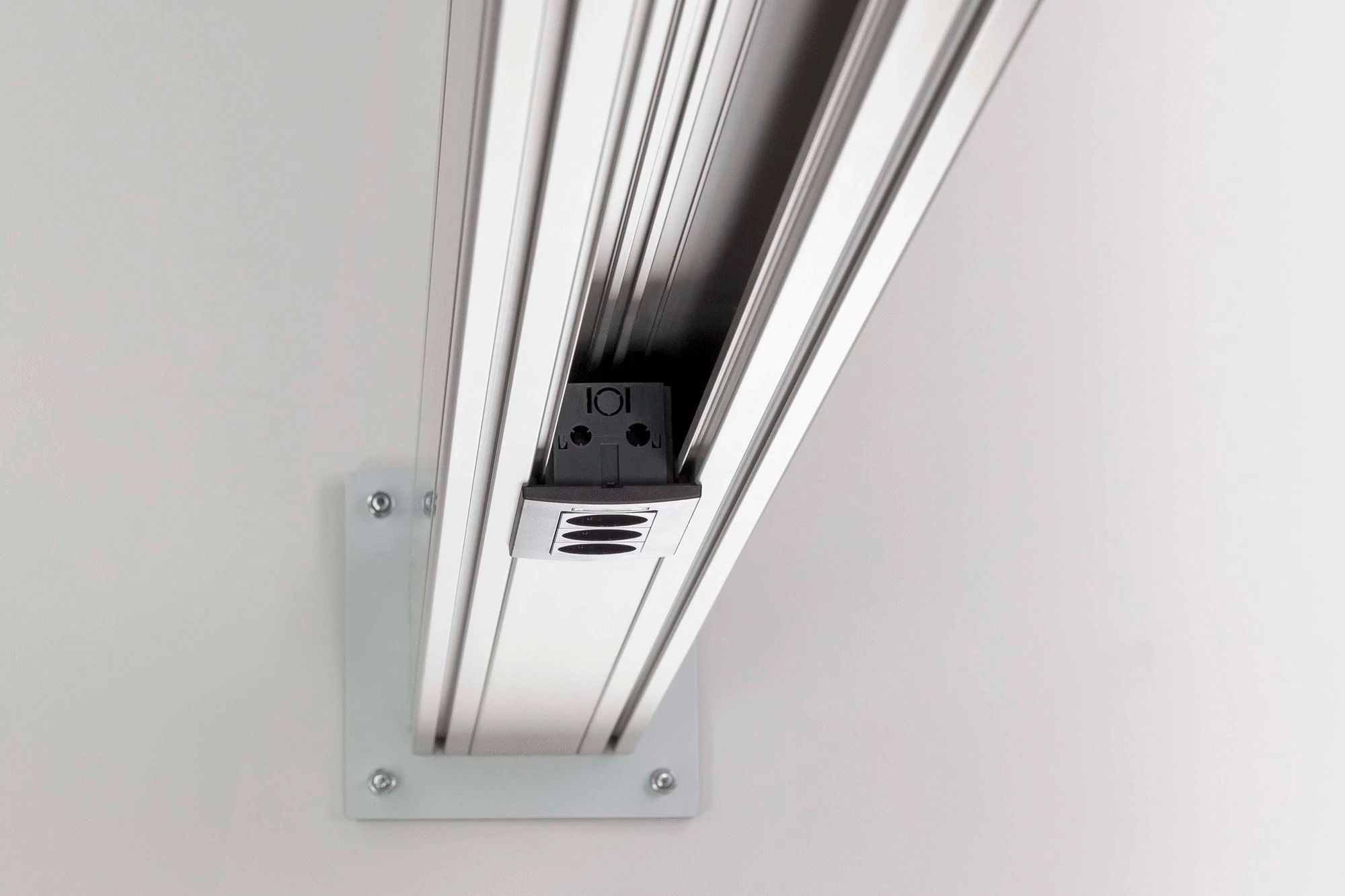

Installation Column Profile 8 160×160 K76, natural

Power, compressed air, data network access – all from a single, central point. The item Installation Column Profile is a robust and versatile solution for routing supply lines right up to workstations. The sturdy Installation Column Profile features two large cable conduits that can each be divided in two using Partition Profiles K76 K to route high and low voltage lines separately in line with EN 50174. The opening on the conduits also holds Mounting Boxes in place. Mounting Boxes are simply plugged into place where needed and are used to install network connections, couplings for CEE three-phase plug connectors and conventional sockets at the desired positions. Each side features two Line 8 grooves for mounting accessories. Two aluminium ducts inside the Column can be used to convey compressed air. The outlets for these lines can be implemented at any height with Pneumatic Connection Set 8 160 G1/2 (0.0.663.45). Open sections of the cable conduit can be sealed to keep out dust by fitting the corresponding aluminium Cover Profile 76 (0.0.663.40). Locking Clips ensure a secure hold and grounding.
