| Axial Joint Set M6 | CADPDFRFQ |
Preview
Axial Joint Set M6
1 Axialgelenk M6, St, verzinkt 1 Axialgelenk M6 LH, St, verzinkt 1 Sechskantmutter DIN 934-M6-I8I LH, St, verzinkt 3 Sechskantmuttern DIN 934-M6-I8I, St, verzinkt
Tuotenro: 0.0.710.49
Osasto: Low-cost automation – the mechanical solution
Avainsana tuotteelle Static
Scope of Delivery
1 axial joint M6, St, bright zinc-plated 1 axial joint M6 LH, St, bright zinc-plated 1 hexagon nut DIN 934-M6-I8I LH, St, bright zinc-plated 3 hexagon nuts DIN 934-M6-I8I, St, bright zinc-plated
Properties
| Line | Line D30 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 53 g |
| Delivery unit | 1 set |

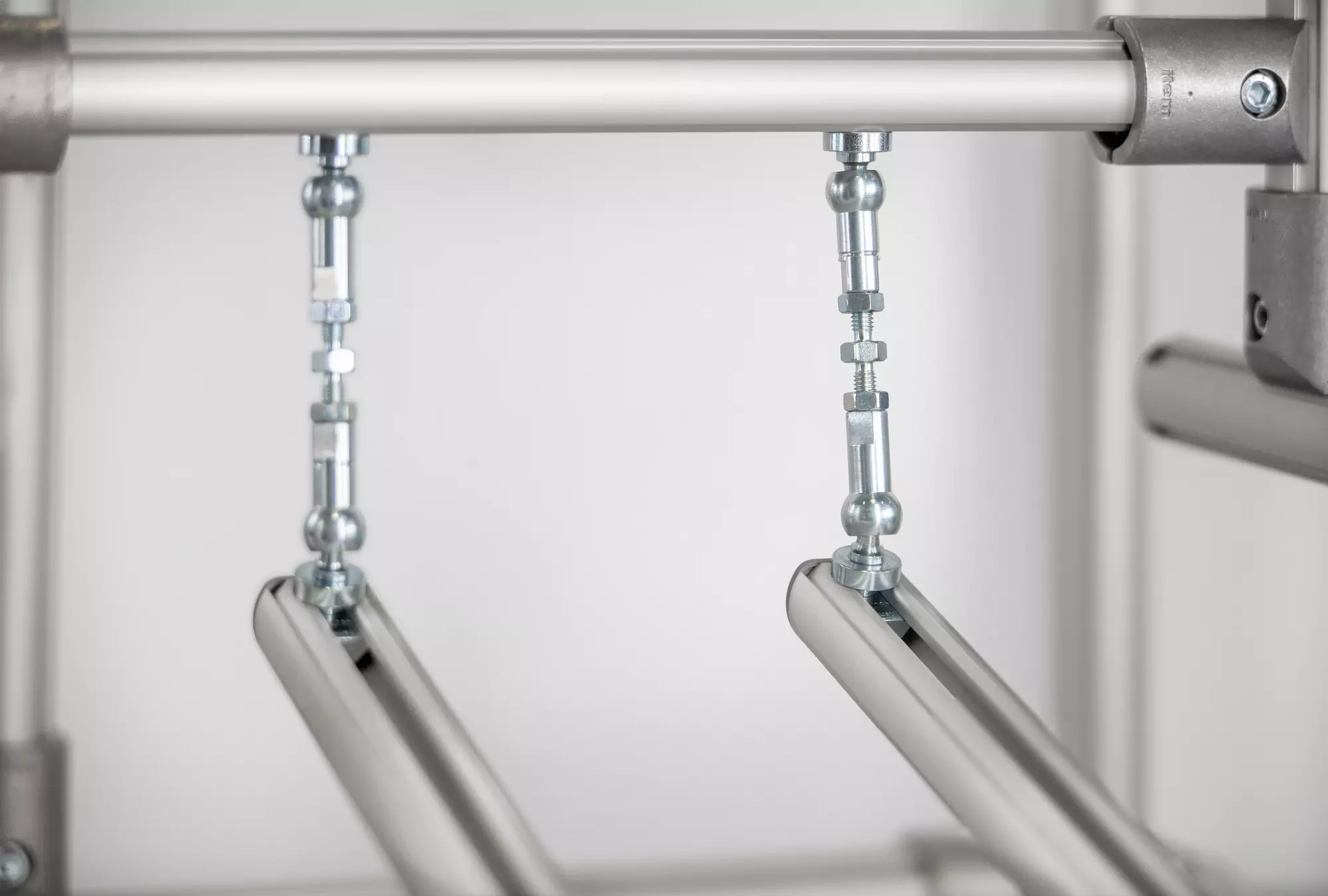

Axial Joint Set M6 connects moving components in Karakuri/LCA applications along an axial direction without any play. The joints are perfect for easy-running and reliable power transmission in two directions of movement. The solution is low maintenance and ensures high process reliability. The maximum pivot angle of 15° compensates for slight axial misalignment.The two ball studs have a right-hand male thread (RH) while one of the two ball sockets has a right-hand female thread and the other has a left-hand (LH) female thread. This enables precise adjustment because the spacing gets bigger or smaller depending on the direction of rotation. Note: If a Threaded Rod is used, Thread Adapter M6 LH/RH T1 (0.0.709.48) must also be used (left/right-hand thread). If a Threaded Rod is not used, Thread Adapter M6 LH/RH T2 (0.0.709.41) is required.
