| Steel Mesh Fixing Block 8 Zn | CADPDFRFQ |
Förhandsvisning

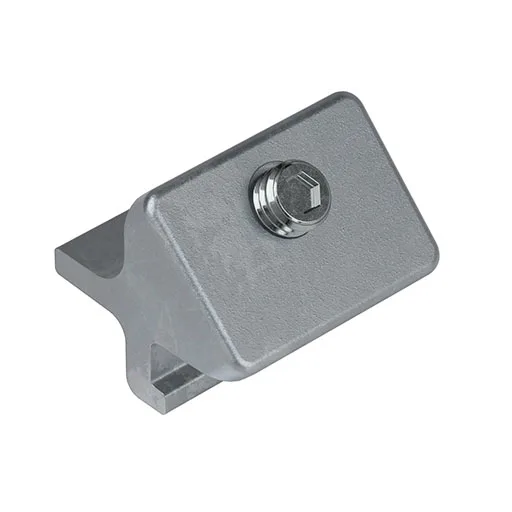

Steel Mesh Fixing Block 8 Zn
1 Steel Mesh Fixing Block 8, Zn, bright zinc-plated 1 grub screw DIN 916 M6x10, St, bright zinc-plated
Art. nr: 0.0.725.22
Kategorier: New Products MB Building Kit System, Clamp profiles
Etikett: Statisk
Scope of Delivery
1 Steel Mesh Fixing Block 8, Zn, bright zinc-plated 1 grub screw DIN 916 M6x10, St, bright zinc-plated
Properties
| Vridmoment | M = 1.5 Nm |
|---|---|
| linje 8 | linje 8 |
| ESD-safe | Nej |
| Vikt | m = 25 g |
| Delivery unit | 1 set |
Steel Mesh Fixing Block 8 Zn fastens mesh with a wire diameter of 3.8 mm to a Line 8 groove without requiring any machining work. The mesh fixing element helps ensure enclosures and guards with a Steel Mesh infill can be built efficiently.
To construct a guard safely, the panel element must be secured using at least three Steel Mesh Fixing Blocks in each groove. To achieve a load capacity of 115 J in line with DIN EN ISO 14120:2016, three Steel Mesh Fixing Blocks need to be fitted per 1000 mm. Using four Steel Mesh Fixing Blocks per 1000 mm increases this capacity to 329 J.
