| Linear Unit LRE 8 D14 80×40 KU 80 | CADPDFRFQ |

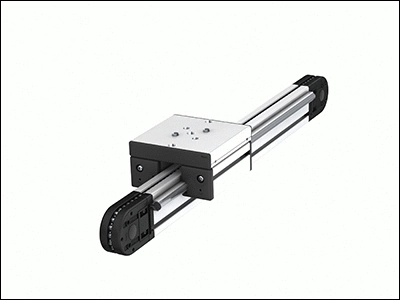

Preview

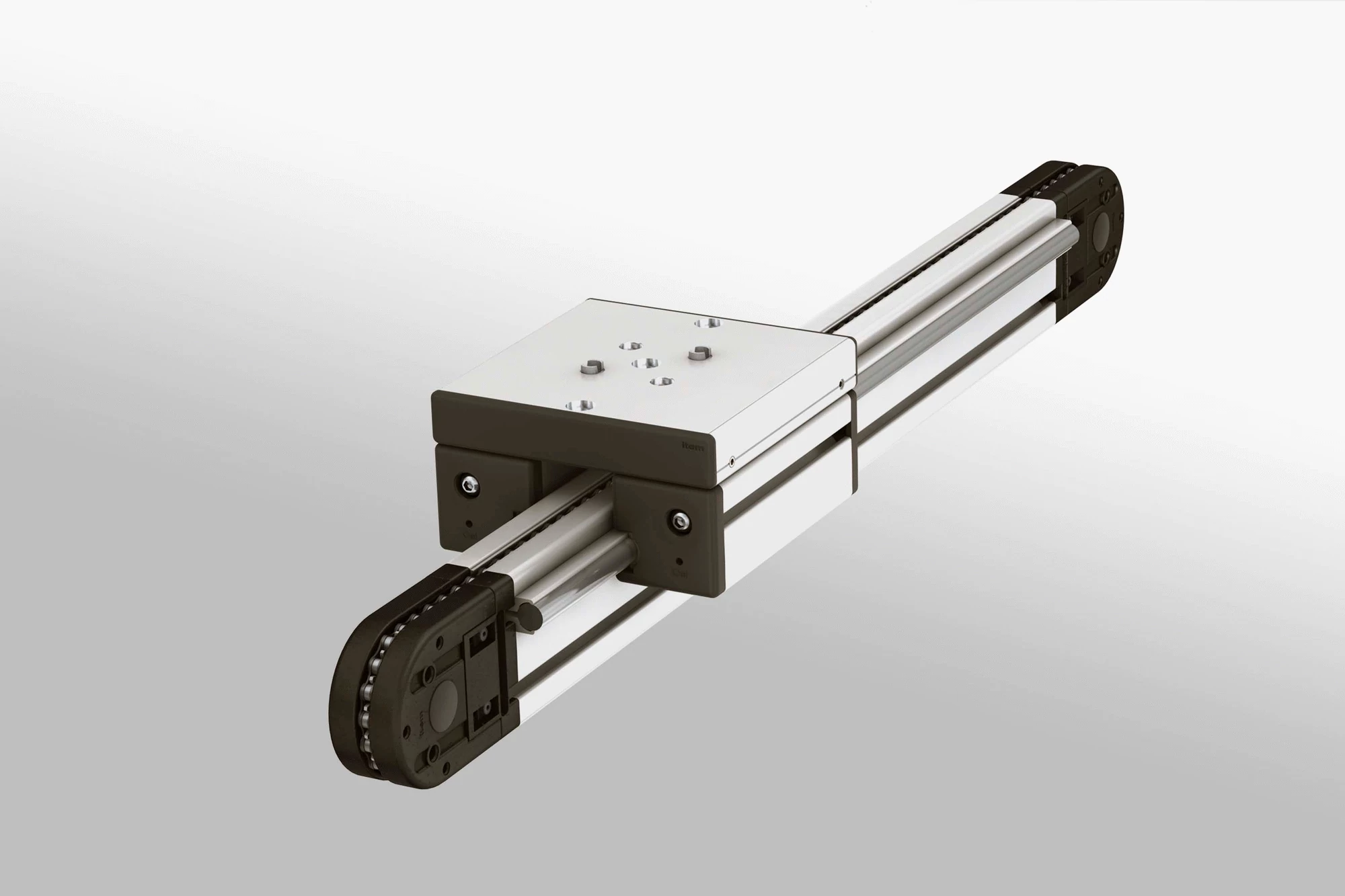

Linear Unit LRE 8 D14 80×40 KU 80
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Moment of Inertia, torsional | It = 18.83 cm4 |
| Moment of Inertia, x-axis | Ix = 101.19 cm4 |
| Moment of Inertia, y-axis | Iy = 26.87 cm4 |
| Total mass | m = m1 + H * m2 |
| Maximum operating load | Fx max = 620 N |
| Maximum force in direction y | Fy max = 2400 N |
| Maximum force in direction z | Fz max = 1600 N |
| Weight | m = 7.7449096 kg |

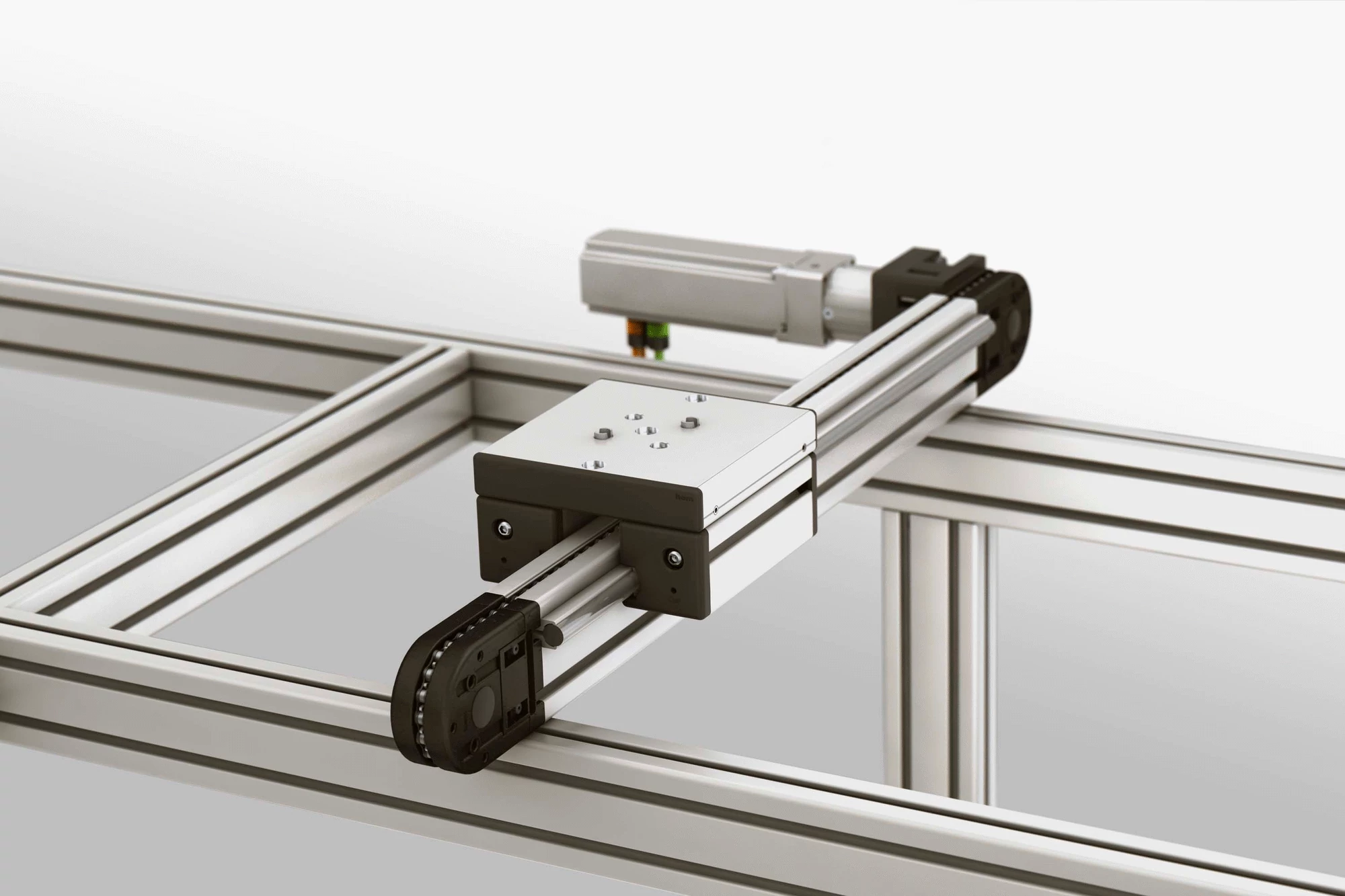

Linear Unit LRE 8 D14 80x40 KU 80 is secure and virtually indestructible. The 1/2" roller chain delivers consistently high power transmission and a reliable hold when used in vertical applications. Even very heavy loads up to 1600 N are moved in a controlled manner and with powerful acceleration. Linear Unit LRE 8 D14 80x40 KU 80 can also be used in heavily contaminated environments.
h = horizontal orientation v = vertical orientation
Travel speed v in relation to input speed n (ball screw, chain and rack drives)
Operational force Fx dependent on input torque M (ball screw drive, chain drive, rack drive)
