Timing-Belt Tensioner, Fixing Block 5 R10

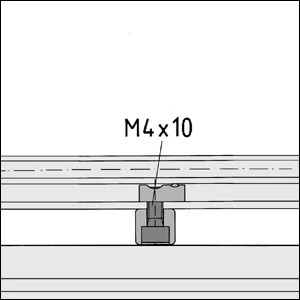

Fixing Block, die-cast aluminium, black Cap Screw DIN 912-M4x10, St, bright zinc-plated T-Slot Nut 5 St M4, bright zinc-plated 2 hexagon nuts DIN 985-M3, self-locking, St, bright zinc-plated 2 Cap Screws DIN 912-M3x50, St, bright zinc-plated

Art. nr: 0.0.400.06 Kategorier: , Etikett:
Set CAD-format
Timing-Belt Tensioner, Fixing Block 5 R10CADPDFRFQ

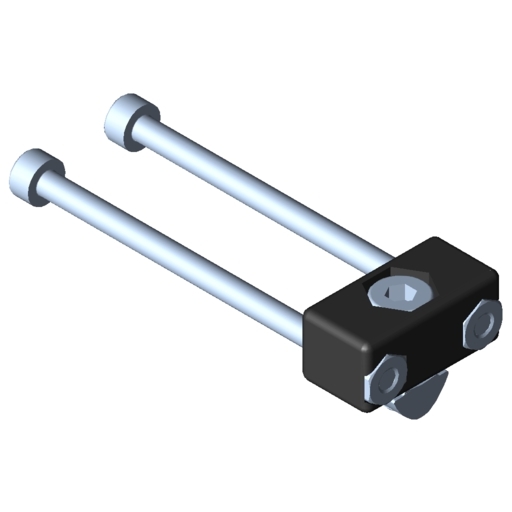

Preview

Scope of Delivery

Fixing Block, die-cast aluminium, black Cap Screw DIN 912-M4x10, St, bright zinc-plated T-Slot Nut 5 St M4, bright zinc-plated 2 hexagon nuts DIN 985-M3, self-locking, St, bright zinc-plated 2 Cap Screws DIN 912-M3x50, St, bright zinc-plated

Properties

line 5line 5
ESD-safeNo
Weightm = 13 g
Delivery unit1 set
Zum Befestigen und Spannen des Zahnriemens an einem Führungsschlitten.

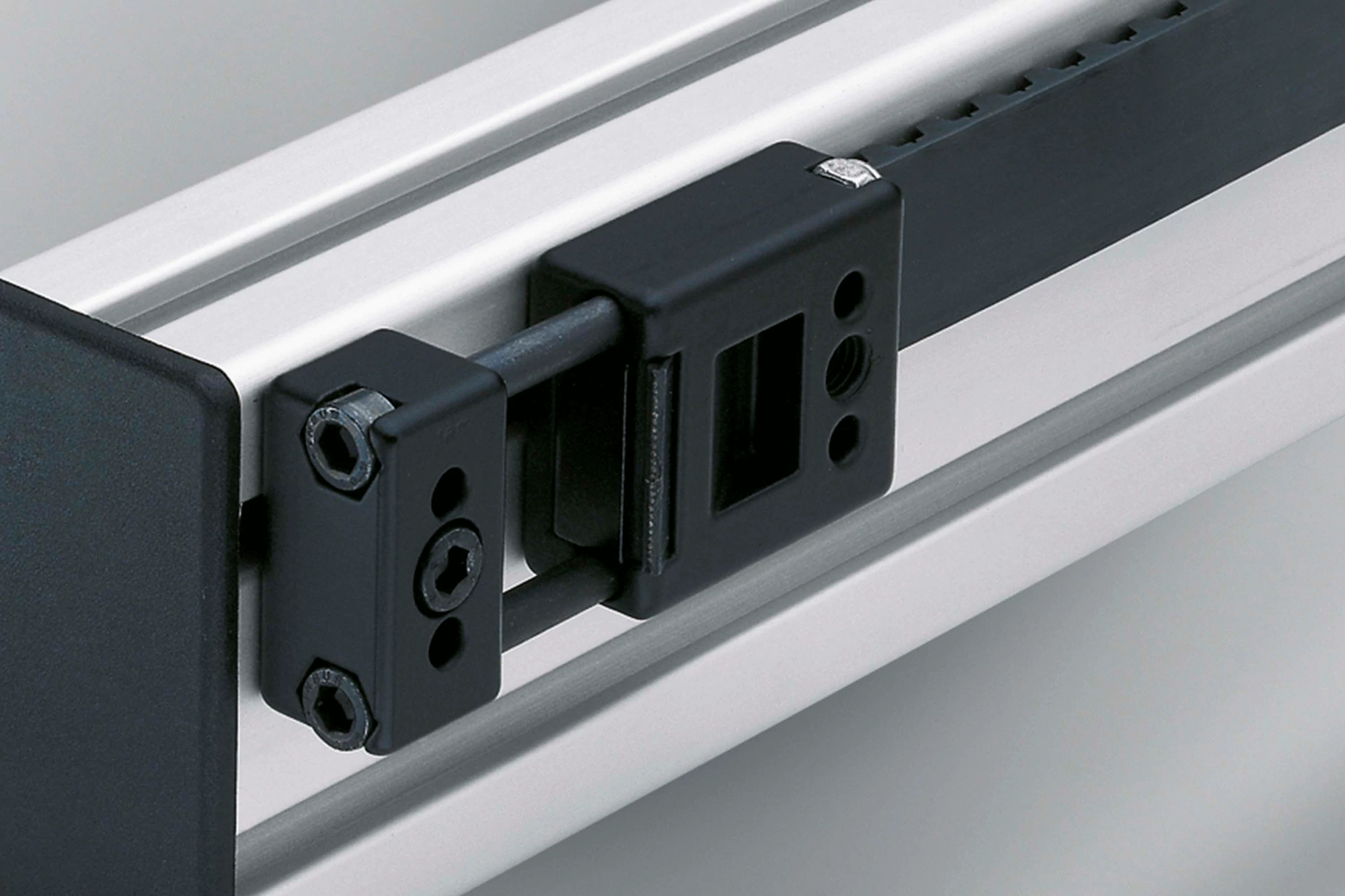

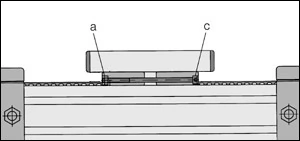

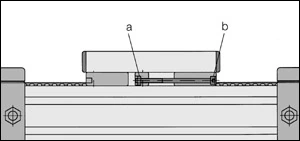

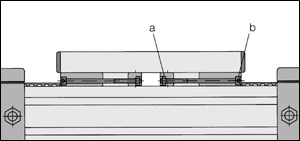

Fastening and tensioning the Timing Belt on a sliding carriage using Tensioning Blocks and Fixing Block and the appropriate bolts.
