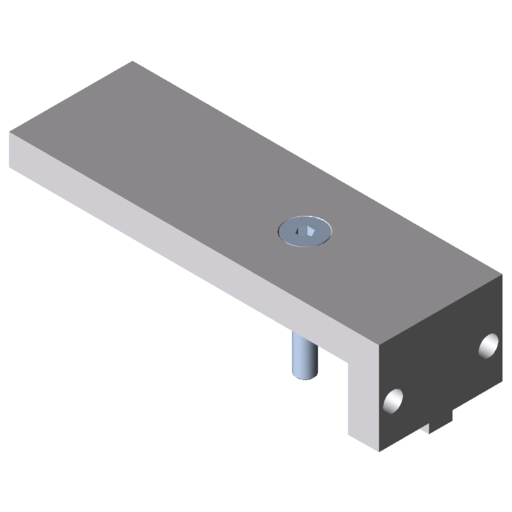

Timing-Belt Tensioner Holder 8 R25

The Timing-Belt Tensioner Holder is used for driven linear axes with fixed Timing Belt. The holder counteracts the tendency of the timing-belt tensioner to lift up off the profile to which it is screwed by means of the fixing block. The holder improves the running of the timing belt drive, particularly when operating at maximum load. The drive vibrates less and is more rigid. In reinforcing against the bending moment, the holder also reduces the load on the tensioning screws of the timing-belt tensioner. The Timing-Belt Tensioner Holder is available in two versions for Timing Belts R25 and R50.

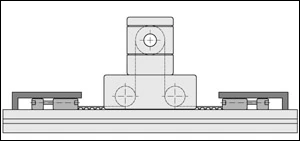

Drawing of a linear drive with moving axis. Holders prevent the timing-belt tensioners lifting away from the profile.

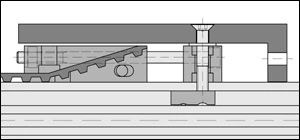

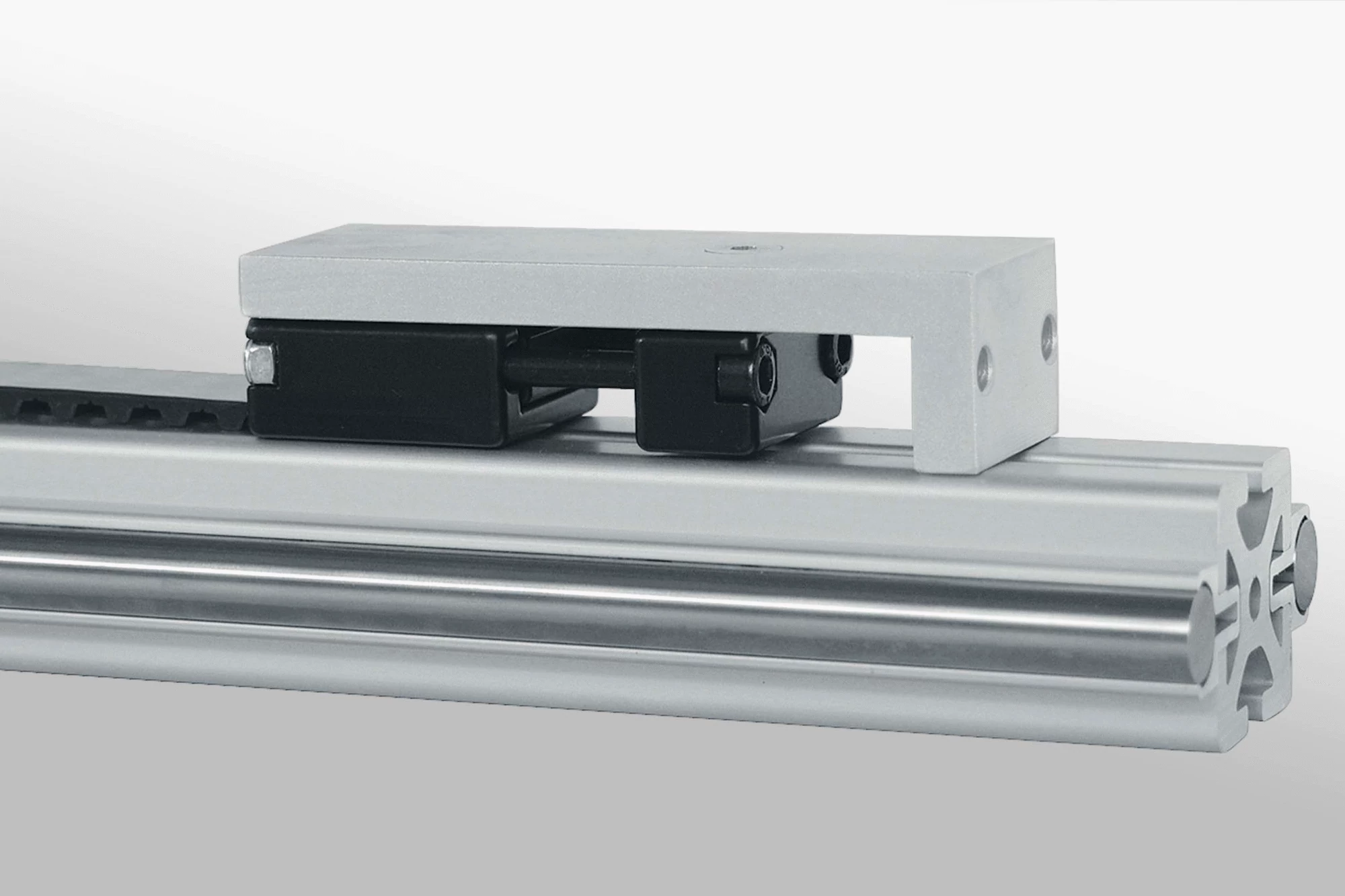

The Timing-Belt Tensioner Holder is screwed together with the fixing block. The tensioning screws of the timing-belt tensioner are accessed through the holes provided.
