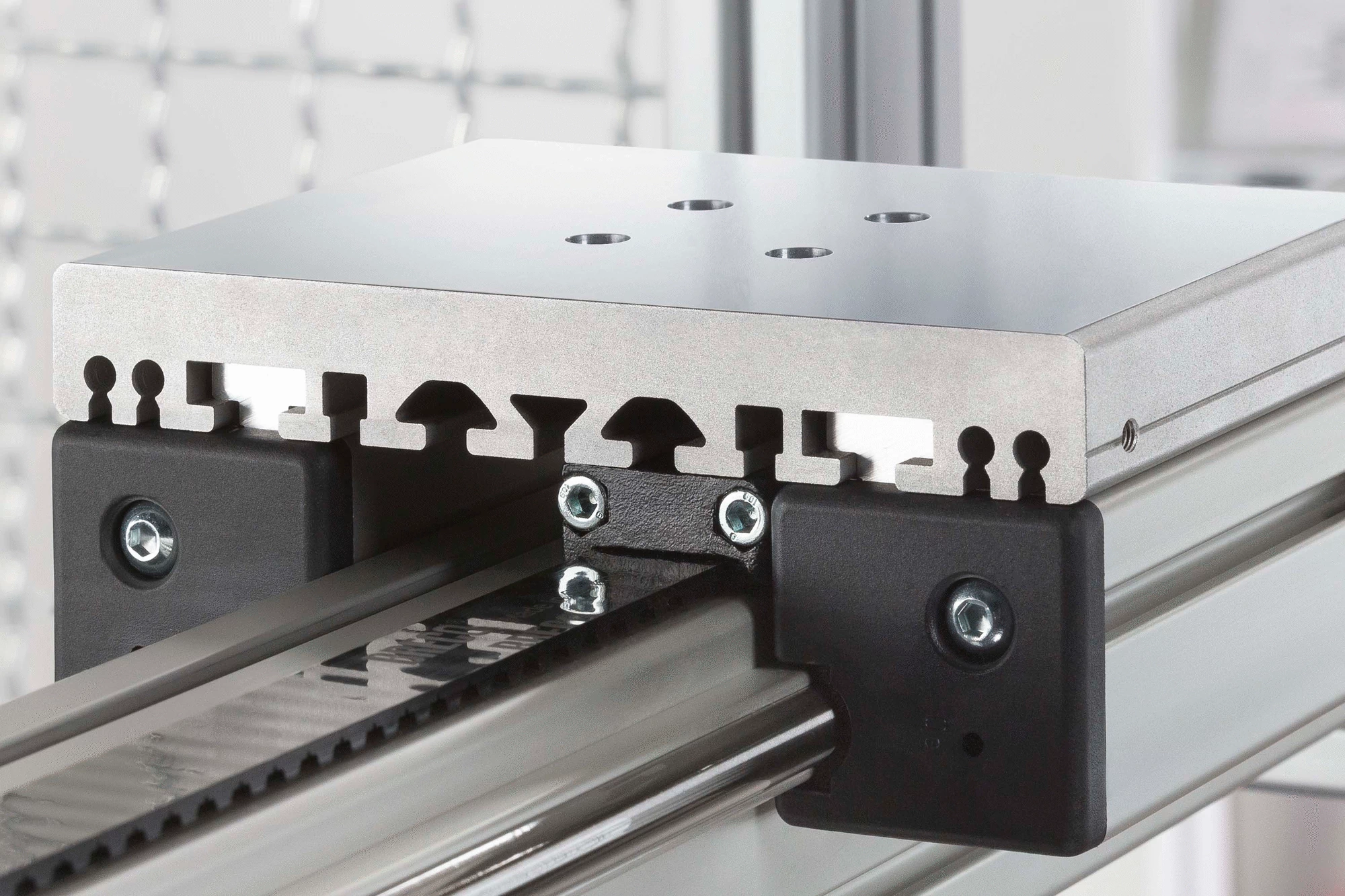

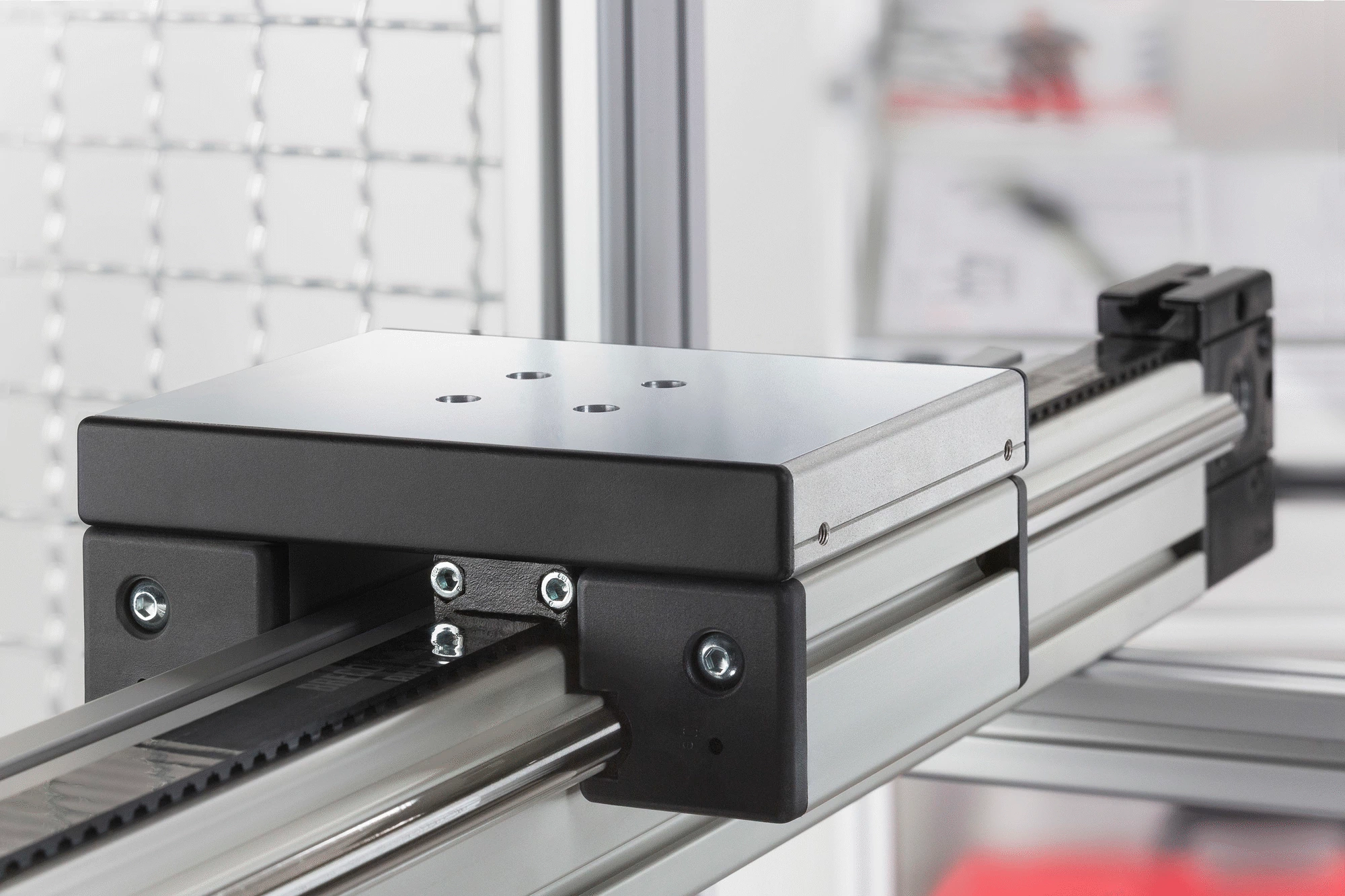

Slide LRF 8 D14 200×160
Slide LRF 8 D14 200×160, preassembled 2 End Cap and Lubricating Systems 8 D14, black 2 Caps LRF 8 D14 200×28, PA-GF, black 2 positioning collars, St Installation guide
Art. nr: 0.0.658.21
Kategorier: Carriages and carriage sets, Carriages and carriage sets
Etikett: Static
Scope of Delivery
1 Slide LRF 8 D14 200x160, preassembled 2 End Cap and Lubricating Systems 8 D14, black 2 Caps LRF 8 D14 200x28, PA-GF, black 2 positioning collars, St Installation guide
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 3.85 kg |
| Delivery unit | 1 set |
Everything runs smoothly with this solution. Slide LRF 8 is a practical complete system for roller guides that run on Shafts D10 or D14, which are fastened to a Line 8 groove using Shaft-Clamp Profiles. It is delivered ready for installation and comprises a Carriage Profile with a flat surface and two quiet-running Double-Bearing Units with End Cap and Lubricating Systems. Simply slot it onto the shafts, adjust the rollers from the side, tighten everything up and that’s it – your torsion-resistant linear slide is good to go. Slide LRF 8 is available for linear slides in a width of 40 and 80 mm. Fitting functional elements is also incredibly easy. The upper surface of the slide has been milled flat and features four openings for positioning collars. As a result, any application can be fastened to the Slide with outstanding precision, which makes maintenance work easier and reduces setup times. Slide LRF can also be combined with a Timing-Belt Drive or chain drive to form automated solutions. Slide Sets LRF and Slide Profiles LRF can also be ordered separately to build slides in customised lengths.
LRF 8 D14
Load specifications Run length under max. load: 10000 km Max. speed: 10 m/s
