| Central-Fastening Set P 8 | CADPDFRFQ |
Preview
Central-Fastening Set P 8
Clamping pin, St, bright zinc-plated T-Slot Nut V 8 St M8, bright zinc-plated Threaded sleeve with bore, St, bright zinc-plated Grub screw M10, St, bright zinc-plated Cap, PE, grey
Scope of Delivery

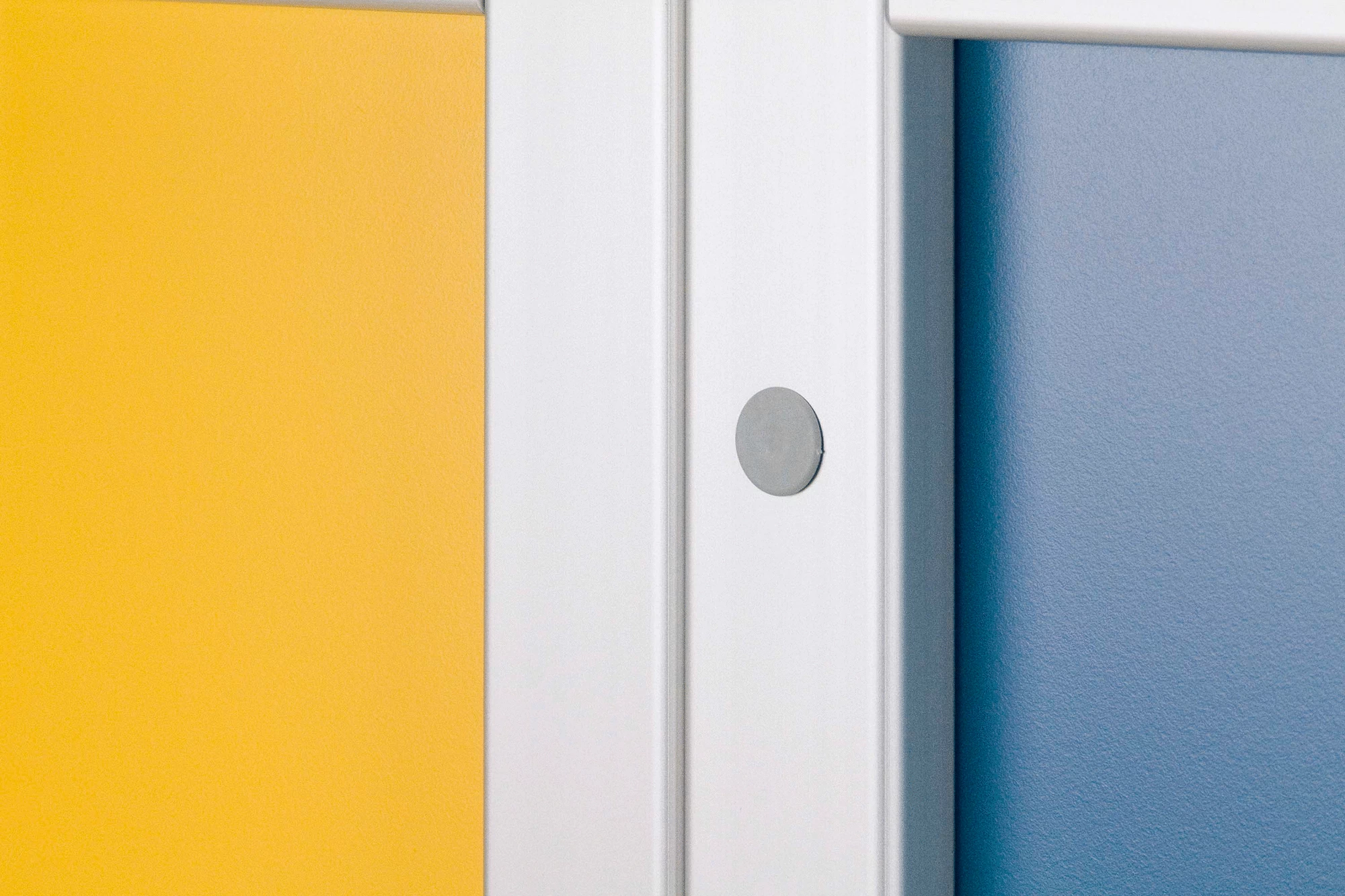

Clamping pin, St, bright zinc-plated T-Slot Nut V 8 St M8, bright zinc-plated Threaded sleeve with bore, St, bright zinc-plated Grub screw M10, St, bright zinc-plated Cap, PE, grey
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | Yes |
| Weight | m = 44 g |
| Delivery unit | 1 set |

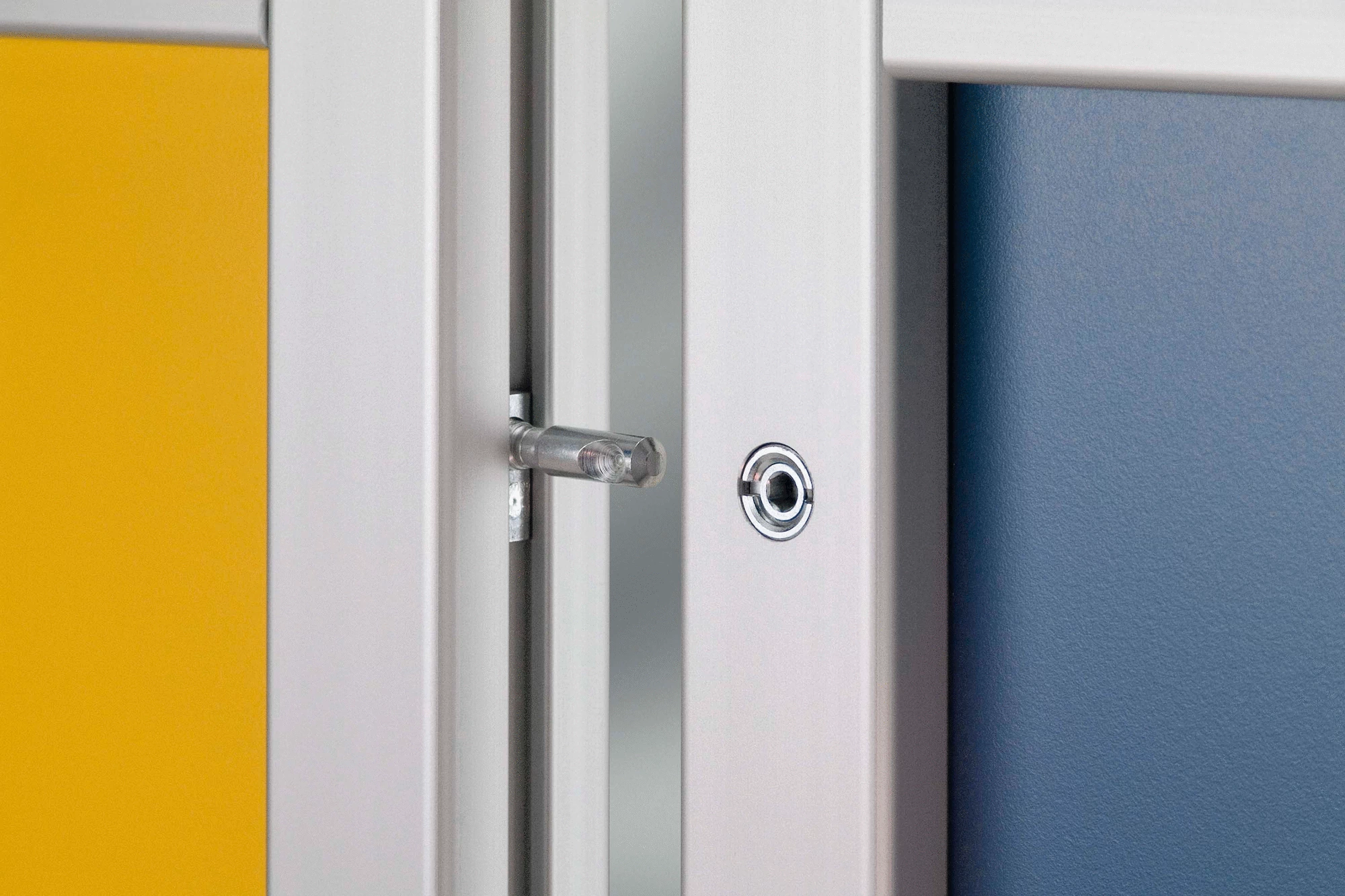

Special variant of Central-Fastening Set 8 for connecting parallel Line 8 profiles. It enables individual, inherently stable partitions or partition elements to be rowed together quickly without time-consuming alignment procedures. Unevenness in the floor can be compensated for by adjusting the height of the T-Slot Nut in the profile groove.
N.B.: At least 2 grooves always remain free for fitting panel elements into the profile grooves. Frame elements can also be connected to each other at an angle of 90° by positioning Central-Fastening Set P 8 appropriately.

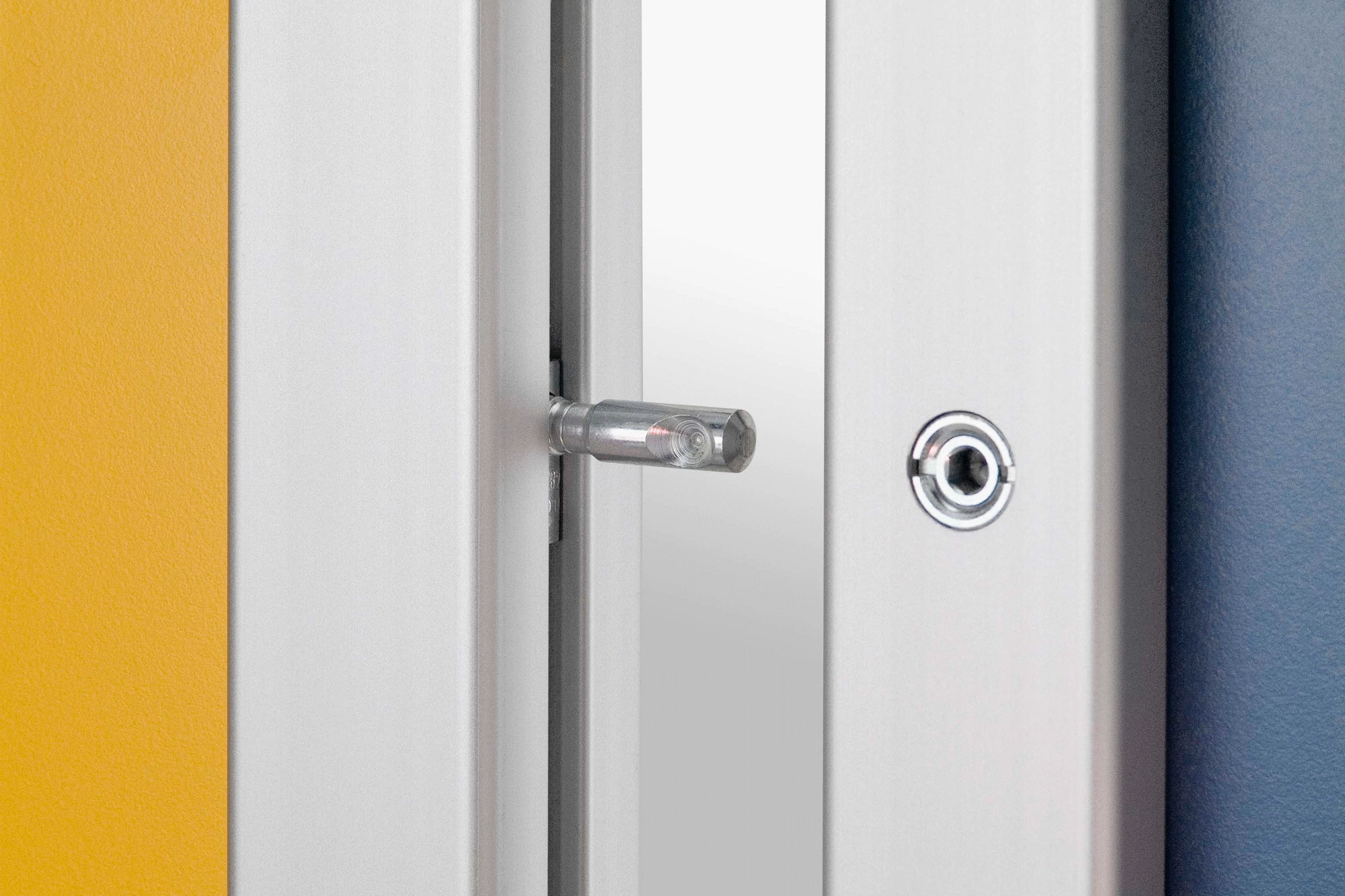

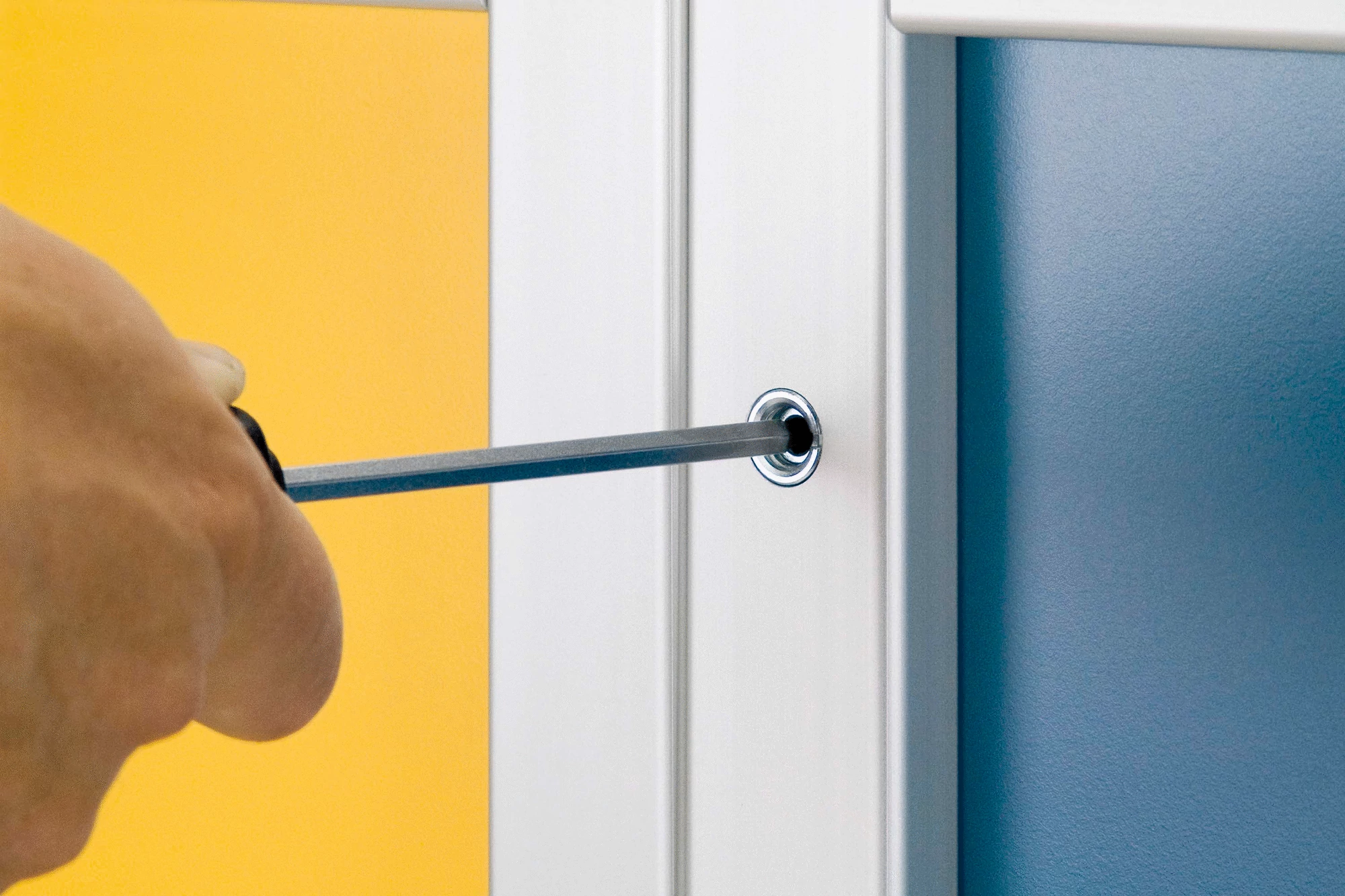

Profile processing: To accommodate the fastener sleeve, a ⌀14.2 mm counterbore is drilled into the side of one of the profiles being connected (using Step Drill 0.0.492.60) along with a ⌀8.2 mm fastening hole located perpendicular to this. T-Slot Nut V 8 St M8 is fitted into the facing groove of the second profile and the clamping pin is screwed into this T-Slot Nut as far as the marking. After the clamping pin has been inserted into the fastener sleeve, the profile connection is tightened with an M10 grub screw (tightening torque M = 15 Nm).
