| Drive Set ZU 5 40 D30/D12 NEMA 24 | CADPDFRFQ |
Preview
Drive Set ZU 5 40 D30/D12 NEMA 24
1 coupling housing 5 D30, Al 1 adapter plate 5 D30, for motor NEMA 24, Al 1 coupling half D30/D8, for motor NEMA 24, Al 1 expanding hub coupling half D30/D12, St and Al 1 coupling insert D30, PU, blue 4 Hexagon Socket Head Cap Screws DIN 912 M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M4x14, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912 M6x25, St, bright zinc-plated 1 Cap D30 F, PA 1 Centring Piece D50-D22, St
Scope of Delivery
1 coupling housing 5 D30, Al 1 adapter plate 5 D30, for motor NEMA 24, Al 1 coupling half D30/D8, for motor NEMA 24, Al 1 expanding hub coupling half D30/D12, St and Al 1 coupling insert D30, PU, blue 4 Hexagon Socket Head Cap Screws DIN 912 M5x14, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912 M4x14, St, bright zinc-plated 2 Hexagon Socket Head Cap Screws DIN 912 M6x25, St, bright zinc-plated 1 Cap D30 F, PA 1 Centring Piece D50-D22, St
Properties
| line 5 | line 5 |
|---|---|
| ESD-safe | No |
| Weight | m = 543 g |
| Maximum permissible torque of coupling – drive side | Mmax = 3.3 Nm |
| Efficiency | . = 1 |
| Delivery unit | 1 set |

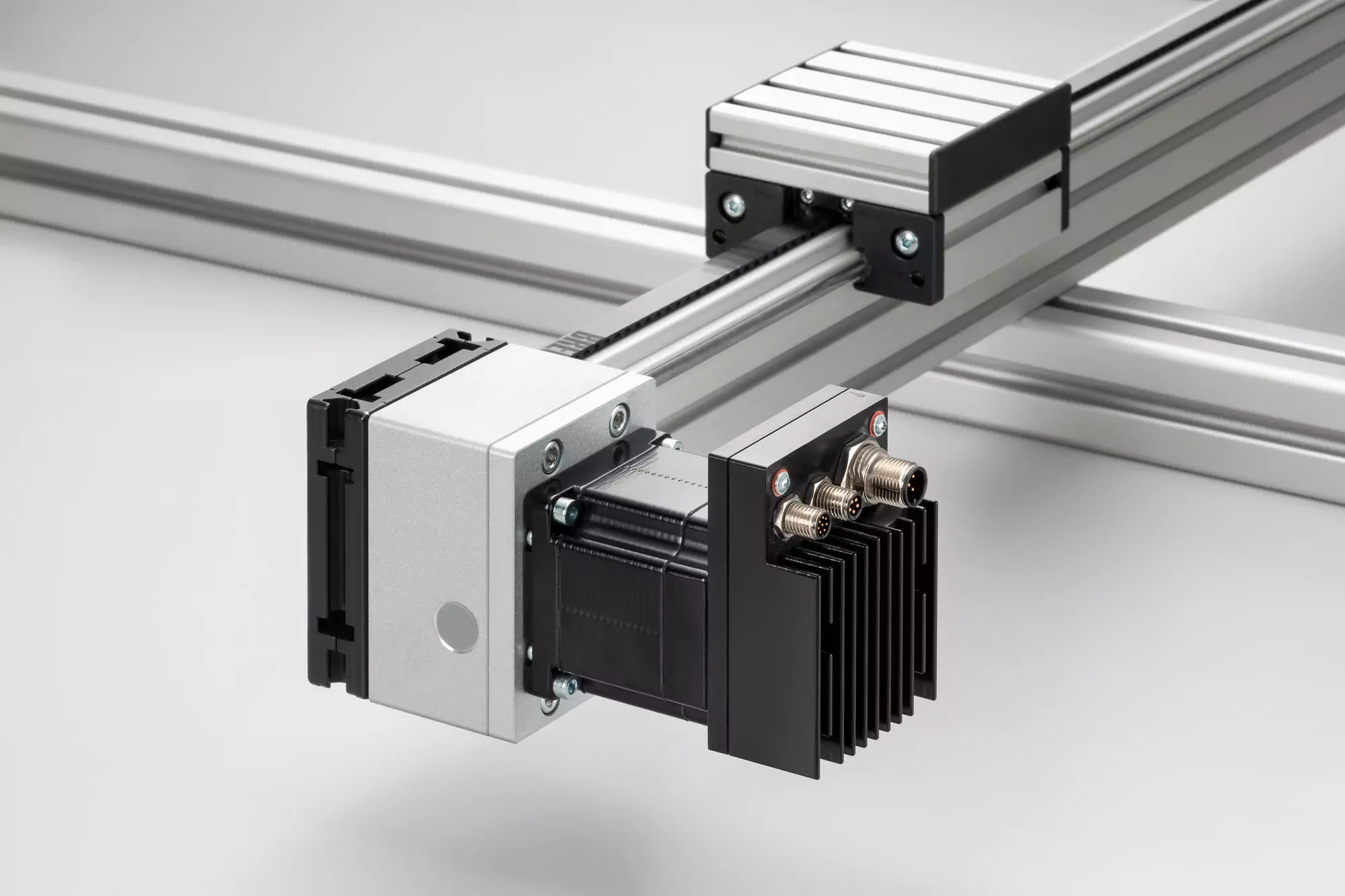

Drive Set ZU 5 40 D30/ D12 NEMA 24 is used to connect stepper motors with a standardised NEMA 24 flange to item Linear Units LRE 5 D6 60x20 ZU 40 R10. The coupling is supplied ready to install and with its housing. This plug-and-play solution ensures backlash-free power transmission with no need for machining and can be mounted directly to the linear unit.
