| Angle Bracket Set 12 60×60 | CADPDFRFQ |
Preview

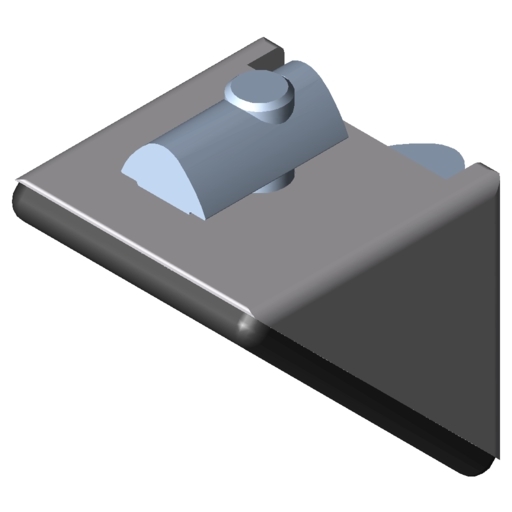

Angle Bracket Set 12 60×60
Angle Bracket 12 60×60 Zn, die-cast zinc, RAL9006 Angle Bracket Cap 12 60×60, PA, black 2 Button-Head Screws ISO 7380-M12x25, St, bright zinc-pl. 2 Washers DIN 433-13, St, bright zinc-plated 2 T-Slot Nuts 12 St M12, bright zinc-plated
Scope of Delivery
Angle Bracket 12 60x60 Zn, die-cast zinc, RAL9006 Angle Bracket Cap 12 60x60, PA, black 2 Button-Head Screws ISO 7380-M12x25, St, bright zinc-pl. 2 Washers DIN 433-13, St, bright zinc-plated 2 T-Slot Nuts 12 St M12, bright zinc-plated
Properties
| line 12 | line 12 |
|---|---|
| ESD-safe | No |
| Weight | m = 520 g |
| Delivery unit | 1 set |
For power-lock connection (without machining) between profiles, reinforcing profile connections or for fastening a range of components to profiles.
Angle Brackets are ideal for connecting cable conduits. The rounded internal edge prevents damage to the cables.
When used to reinforce the joints of large profiles or conduits, several Angle Brackets can be used in parallel. Note: Ensure the maximum permissible tensile load on the Profile Groove is not exceeded! For Angle Brackets of Lines 6, 8 and 12, special square washers are used to improve the application of the clamping force.
The load-carrying capacity is to be checked to ensure both conditions are met.
