| Conveyor Roller TRA50 (Chain-Driven), Driven Bearing Set, black | CADPDFRFQ |
Preview

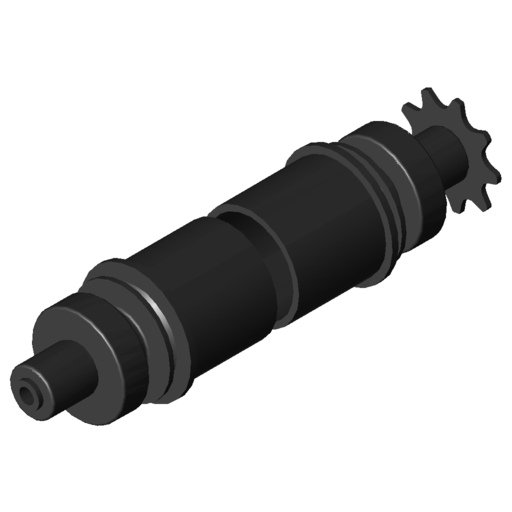

Conveyor Roller TRA50 (Chain-Driven), Driven Bearing Set, black
Roller bearing, preassembled Bearing flange, driven, with sprocket wheel Bearing flange, not driven
Scope of Delivery
Roller bearing, preassembled Bearing flange, driven, with sprocket wheel Bearing flange, not driven
Properties
| line 8 | line 8 |
|---|---|
| ESD-safe | No |
| Weight | m = 285 g |
| Delivery unit | 1 set |
| Material | PA-GF |
| Colour | black |

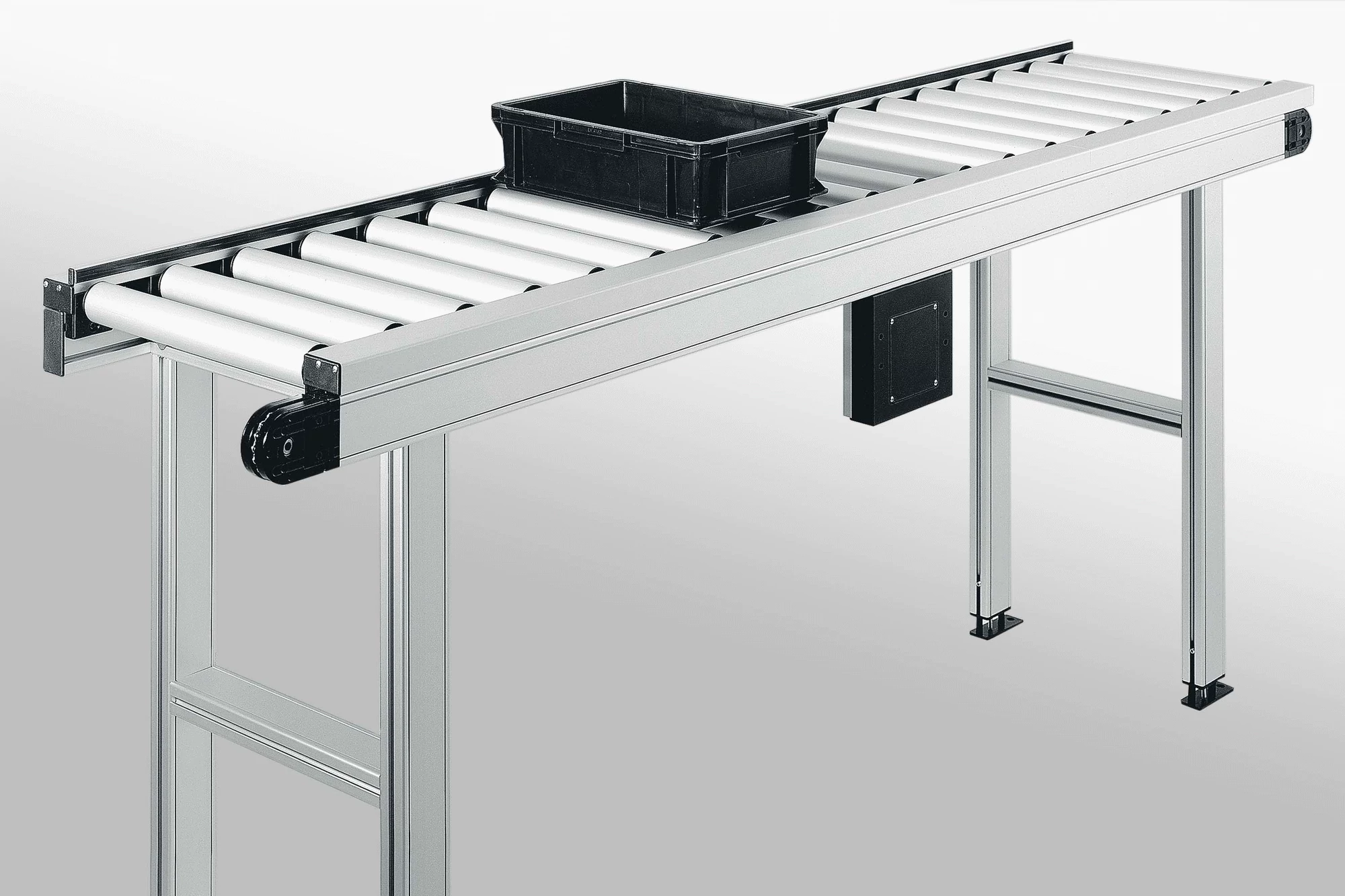

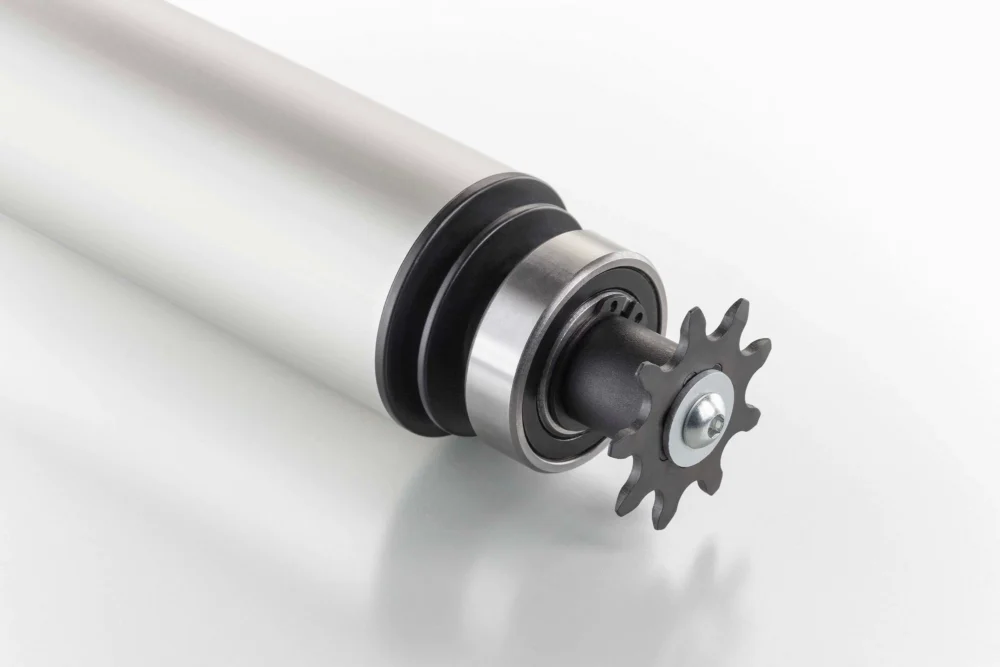

A conveyor with chain-driven rollers is ideal for a whole range of automated conveyor and transport operations. It is constructed using a chain drive. The special Conveyor Rollers are driven on one side by a completely covered chain in the frame profile grooves. The driven roller conveyor should not exceed 6 m in length. The distance between the individual rollers can be selected at will. A roller can be up to 800 mm wide. Conveyor Rollers are produced from Tubes D50 Al or D50 KU and the relevant Bearing Set. A Bearing Set consists of two complete bearing flanges, one of which is equipped with a sprocket wheel which engages with the chain drive. Roller Bearing Sets are available in driven and non-driven versions. Non-driven versions can be used, for example, to incorporate accumulating rollers into a driven roller conveyor.
The housing of the Chain Reverse Unit is prepared for securing a Bearing Block. This Conveyor Roller is not driven via the chain. If required, the last Conveyor Roller can also be driven from the last driven roller by means of a ø 4 mm round belt.
