Synchroniser Shaft Cover Set GSF 8 40 R10

2 Synchroniser Adapter Plates GSF 8 40, Al, natural 4 Hexagon Socket Head Cap Screws DIN 7984-M4x45, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M4x50, St, bright zinc-plated 4 hexagon nuts DIN 934-M4-5, St, bright zinc-plated 8 taper grooved dowel pins ISO 8745 5×18, St

Art. nr: 0.0.662.54 Kategorier: , Etikett:
Set CAD-format
Synchroniser Shaft Cover Set GSF 8 40 R10CADPDFRFQ

Preview

Scope of Delivery

2 Synchroniser Adapter Plates GSF 8 40, Al, natural 4 Hexagon Socket Head Cap Screws DIN 7984-M4x45, St, bright zinc-plated 4 Hexagon Socket Head Cap Screws DIN 912-M4x50, St, bright zinc-plated 4 hexagon nuts DIN 934-M4-5, St, bright zinc-plated 8 taper grooved dowel pins ISO 8745 5x18, St

Properties

line 8line 8
ESD-safeNo
Weightm = 202 g
Delivery unit1 set

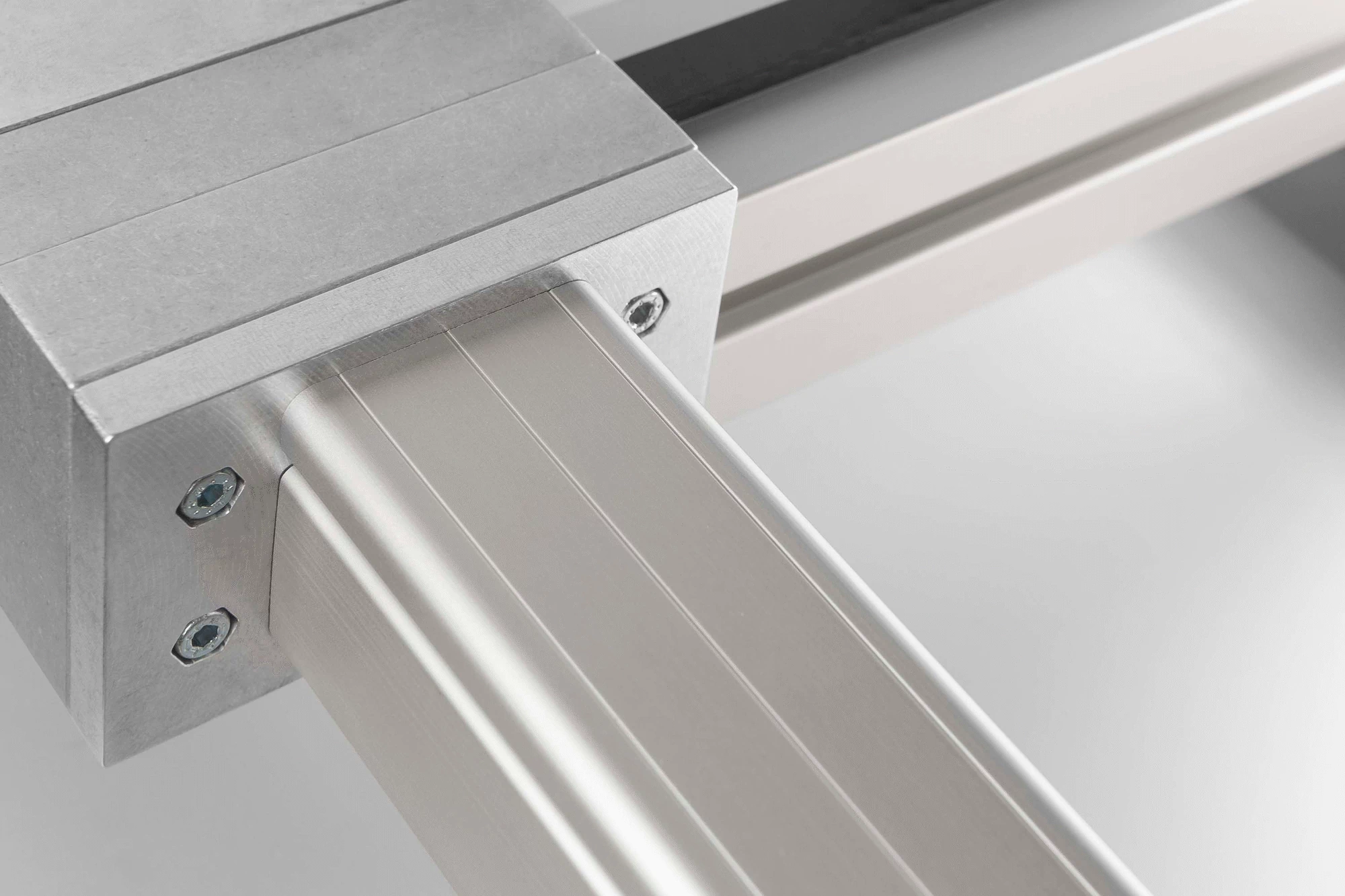

The adapter plates included in the Synchroniser Shaft Cover Set secure the conduit elements between the two timing-belt drives of Linear Units GSF 8 40 R10. Calculating the length: a = Distance between Linear Units c = Length of conduit elements Use this cable conduit: Conduit Profile U 40x40 E (7.0.001.44) Lid Profile D40 E (7.0.001.46)
